EPC Data

Toyota LITEACE VAN,WAGON — STARTER

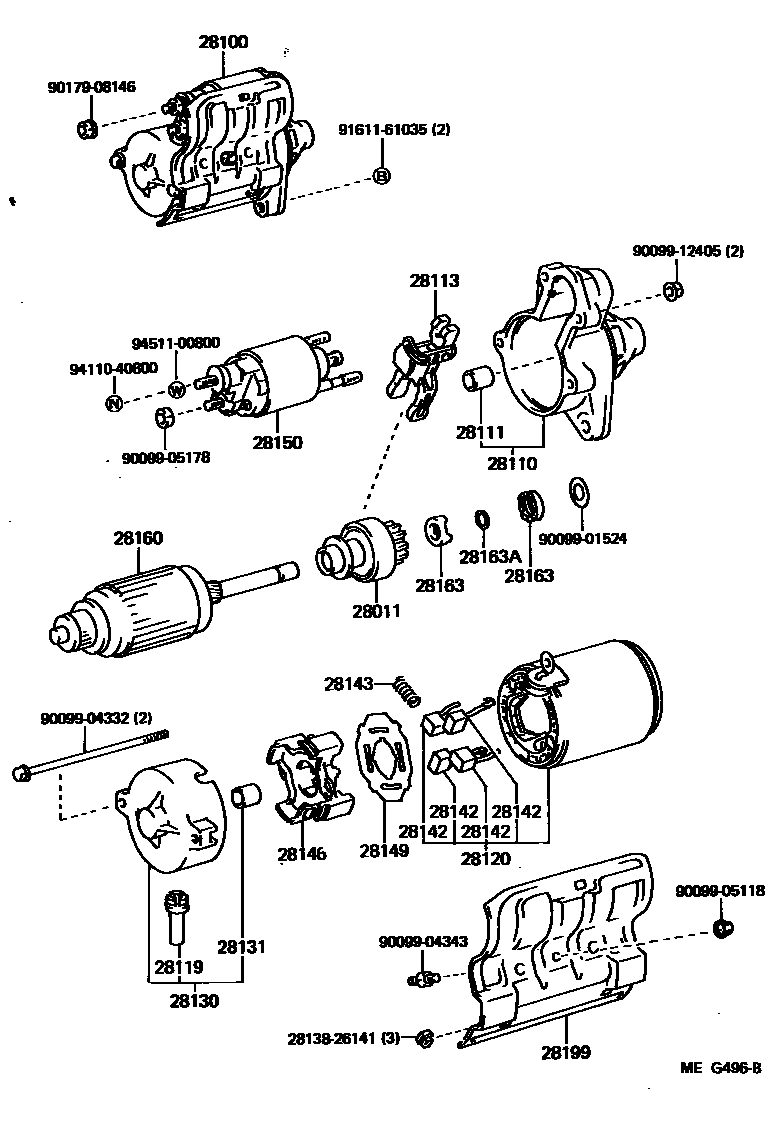

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-13060i198509-198808
12V 0.6KW
main28011-15010i198509-198808
12V 0.8KW
main28011-26042i198509-198808
12V 1.0KW
main28011-64010i198708-198808
12V 2.2KW
main28011-64020i198708-198808
12V 2.0KW
main28011-64030i198509-198808
12V 2.5KW
28100STARTER ASSY
main28100-13010i198509-198808
main28100-13020i198509-198808
main28100-13060i198509-198706
main28100-13061i198706-198808
main28100-64020i198509-198708
main28100-64030i198509-198708
main28100-64040i198708-198808
main28100-64100i198509-198808
main28100-72010i198509-198808
28110HOUSING ASSY, STARTER DRIVE
main28110-13010i198509-198808
12V 1.0KW
main28110-13020i198509-198808
12V 0.8KW
main28110-13060i198509-198808
12V 0.6KW
main28110-64070i198509-198808
12V 1.4KW
main28110-72010i198509-198808
12V 1.0KW
main28115-64020i198708-198808
12V 2.0KW
main28115-64030i198509-198808
12V 2.5KW
main28115-64040i198708-198808
12V 2.2KW
28111BUSH(FOR STARTER HOUSING)
main28111-51011i198509-198808
12V 0.8KW
main90099-10158i198509-198808
12V 0.6KW
28113LEVER, STARTER PINION DRIVE
main28113-13060i198509-198808
12V 0.6KW
main28113-15011i198509-198808
12V 0.8KW
28119COVER, STARTER END FRAME
main28119-54070i198509-198808
12V 2.0KW,2.2KW
main28199-15090i198509-198808
12V 0.6KW
main28199-72020i198509-198808
12V 1.4KW
main28199-77090i198509-198808
12V 0.8KW; 12V 2.5KW
28120YOKE ASSY, STARTER
main28120-13060i198509-198808
12V 0.6KW
main28120-15090i198509-198808
12V 1.4KW
main28120-26071i198509-198808
12V 1.0KW
main28120-26140i198509-198808
12V 0.8KW
main28120-47040i198509-198608
12V 2.5KW
main28120-56081i198608-198808
12V 2.5KW
main28120-64020i198509-198708
12V 2.0KW
main28120-64040i198708-198808
12V 2.2KW
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-13010i198509-198808
12V 1.0KW
main28130-13020i198509-198808
12V 0.8KW
main28130-13060i198509-198808
12V 0.6KW
main28130-64030i198509-198808
12V 2.5KW
main28130-64100i198509-198808
12V 1.4KW
main28130-72010i198509-198808
12V 1.0KW
28131BUSH, COMMUTATOR END FRAME
main90099-10134i198509-198808
12V 0.8KW
main90099-10157i198509-198808
12V 0.6KW
28142BRUSH, STARTER
main28142-10020×4i198509-198808
12V 0.6KW
28143SPRING, STARTER BRUSH
main28143-10020×4i198509-198808
12V 0.6KW
main90099-17112×4i198509-198808
12V 1.0KW; 12V 1.4KW
main90099-17115×4i198509-198808
12V 2.0KW,2.2KW
28146HOLDER, STARTER BRUSH
main28149-10020i198509-198808
12V 0.6KW
28149PLATE, STARTER
main28141-10020i198509-198808
12V 0.6KW
28150SWITCH ASSY, MAGNET STARTER
main28150-10020i198509-198808
12V 0.6KW
main28150-13011i198509-198808
12V 1.0KW
main28150-34080i198509-198808
12V 1.0KW
main28150-37010i198509-198808
12V 0.8KW
main28150-64020i198509-198708
12V 2.0KW
main28150-64030i198509-198808
12V 2.5KW
main28150-64040i198708-198808
12V 2.2KW
main28150-64070i198509-198808
12V 1.4KW
28160ARMATURE ASSY, STARTER
main28160-10020i198509-198808
12V 0.6KW
main28160-15010i198509-198808
12V 0.8KW
main28160-15090i198509-198808
12V 1.4KW
main28160-26070i198509-198808
12V 1.0KW
main28160-47040i198509-198808
12V 2.5KW
main28160-54070i198509-198708
12V 2.0KW
main28160-64040i198708-198808
12V 2.2KW
28163NUT OR COLLAR, PINION STOP, STARTER
main28163-10020×2i198509-198808
12V 0.6KW
main28163-40011i198509-198808
12V 0.8KW
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
main90099-07047i198509-198808
12V 0.8KW
main90099-07124i198509-198808
12V 0.6KW
28199COVER, STARTER
main28159-13060i198509-198808
12V 0.6KW
main28199-13011i198509-198808
12V 1.0KW
main28199-15110i198509-198808
12V 0.8KW
2813826141RUBBER(FOR STARTER BEARING COVER)
main28138-26141
9009901524
main90099-01524
9009904332
main90099-04332
9009904343
main90099-04343
9009905118
main90099-05118
9009905178
main90099-05178
9009912405
main90099-12405
9017908146
main90179-08146
9161161035
main91611-61035
9411040800
main94110-40800
9451100800
main94511-00800

29 parts on this diagram · 8 diagrams in section

STARTER for Toyota LITEACE VAN,WAGON

This section contains 77 genuine Toyota parts for the STARTER system of the Toyota LITEACE VAN,WAGON. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BUSH(FOR STARTER HOUSING), LEVER, STARTER PINION DRIVE.
