Toyota LITEACE VAN,WAGON — SIDE WINDOW
62279SPACER, SIDE WINDOW FRAME, UPPER
main62279-95701×4iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62279BSPACER, SIDE WINDOW FRAME, LH
main62279-95701×4iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62707AFRAME SUB-ASSY, SIDE FRONT WINDOW, RH
main62707-27010iCM36,41,KM36..V4D..05S;CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,SSW,SUP,SW)199102-199201
main62707-95701iCM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,SSW,SUP,SW)198808-199102
main67043-27010iCM36..V5D..HRF;KM36..V5D..05S;CM36..V5D..(MRF,SRF)..05S;CM30,31,4#,KM30,31,YM31..V5D,W5D199102-199201
main67043-95700iCM36..V5D..HRF;KM35,36..V5D..(05S,06S);CM36..V5D..(MRF,SRF)..05S;CM30,31,4#,KM30,31,YM31..V5D,W5D198808-199102
62708FFRAME SUB-ASSY, SIDE FRONT WINDOW, LH
main67044-27010iCM36..V5D..HRF;CM36..V4D..05S;CM41,KM36..05S;CM41..V5D..02S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW199102-199201
main67044-95700iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW198808-199102
62712EGLASS, SIDE FRONT WINDOW, LH
main62733-95706iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM36..V5D..(MRF,SRF)..05S;CM41,KM35,36..DLX..(05S,06S);CM30,40,KM30,YM31,40..DLX,LD,SW198808-199201
62712KGLASS, SIDE WINDOW, FRONT RH
main62711-95703iCM36,41,KM35,36..V4D..DLX..(05S,06S);CM30,40,KM30,YM31,40..(V4D,W4D)..(DLX,LD,SW)198808-199201
main62732-95715iCM36..V5D..HRF;CM36..V5D..(MRF,SRF)..05S;KM35,36..V5D..DLX..(05S,06S);CM30,4#,KM30,YM31..(V5D,W5D)..(DLX,SW)198808-199201
62713KGLASS, SIDE WINDOW, REAR RH
main62713-95710iCM36,41,KM35,36..V4D..DLX..(05S,06S);CM30,40,KM30,YM31,40..(V4D,W4D)..(DLX,SW)198808-199201
main62735-95704iCM36..V5D..HRF;CM36..V5D..(MRF,SRF)..05S;KM35,36..V5D..DLX..(05S,06S);CM30,4#,KM30,YM31..(V5D,W5D)..(DLX,SW)198808-199201
62714BGLASS, SIDE WINDOW, REAR LH
main62736-95701iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM36..V5D..(MRF,SRF)..05S;CM41,KM35,36..DLX..(05S,06S);CM30,40,KM30,YM31,40..DLX,SW198808-199201
62715FGLASS, SIDE REAR WINDOW, RH
62716AGLASS, SIDE REAR WINDOW, LH
62719APACKING, SIDE FRONT WINDOW, UPPER
main62719-95701×3iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62719CPACKING, SIDE FRONT WINDOW
main62719-95701×3iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62734CHINGE, SIDE REAR WINDOW
main62734-95705×2iCM41..V5D..02S;CM36..V5D..HRF..5F;CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA198808-199201
62734DHINGE, SIDE REAR WINDOW, LH
62735RETAINER, QUARTER WINDOW HINGE
62735JRETAINER, QUARTER WINDOW HINGE, LH
62741DWEATHERSTRIP, SIDE FRONT WINDOW
62743BWEATHERSTRIP, SIDE REAR WINDOW
main62743-95704iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA; CM41..V5D..02S;CM36..V5D..HRF..5F198808-199201
62743CWEATHERSTRIP, SIDE REAR WINDOW
main62743-95702iCM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM3#,40..DLX,FXV,GXL,LD,SCA,SSW,SUP,SW198808-199201
62749ASEAL, SIDE WINDOW, UPPER
main62749-95702iCM36..V5D..HRF;KM35,36..V5D..(05S,06S);CM36..V5D..(MRF,SRF)..05S;CM30,31,4#,KM30,31,YM31..V5D,W5D198808-199201
62749BSEAL, SIDE WINDOW FRAME
main62749-95704iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62749DSEAL, SIDE WINDOW FLAME
main62749-95704iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62749ESEAL, SIDE WINDOW FRAME
main62749-95702iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62751STOP, SIDE WINDOW FIX GLASS
main62751-95661iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW198808-199201
62751AWEATHERSTRIP, SLIDE DOOR WINDOW
62751CSTOP, SIDE WINDOW FIX GLASS
main62751-95661iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW198808-199201
62783ASASH, SIDE WINDOW, CENTER
main62783-95700iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62783DSASH, SIDE WINDOW, CENTER
main62783-95700iCM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM3#,40198808-199201
62792APACKING, SIDE WINDOW LOCK, RH
main62792-95A00iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM40..SUP,SW198808-198906
62792CPACKING, SIDE WINDOW LOCK, LH
main62792-95A00iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM40..SUP,SW198808-198906
62793BRETAINER, SIDE WINDOW LOCK, RH
main62793-95704iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM40..SUP,SW198808-198906
main62793-95J01iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW198906-199201
62793CRETAINER, SIDE WINDOW LOCK, LH
main62793-95704iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM40..SUP,SW198808-198906
main62793-95J01iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW198906-199201
62897TUBE, SIDE WINDOW GUARD
62898ATUBE, SIDE WINDOW GUARD, LH
62910ELOCK ASSY, SIDE WINDOW
main62910-95702iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW198808-199201
62910JLOCK ASSY, SIDE WINDOW, LH
main62910-95702iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC; CM36..V5D..HRF;CM36..V4D..05S;CM41..V5D..02S;CM41,KM35,36..05S,06S;CM36..V5D..(MRF,SRF)..05S;CM30,31,40,KM30,31,YM31,40..DLX,SSW,SUP,SW198808-199201
62950LOCK ASSY, SIDE REAR WINDOW
BLACK,TRIM1#; BLACK,TRIM1#,4#
62950AROOK ASSY, SIDE REAR, LH
9014960004
main90149-60004
9015860009
main90158-60009
9015960010
main90159-60010
9015960120
main90159-60120
9016440091
main90164-40091
9020211001
main90202-11001
9038511001
main90385-11001
9321984008
main93219-84008

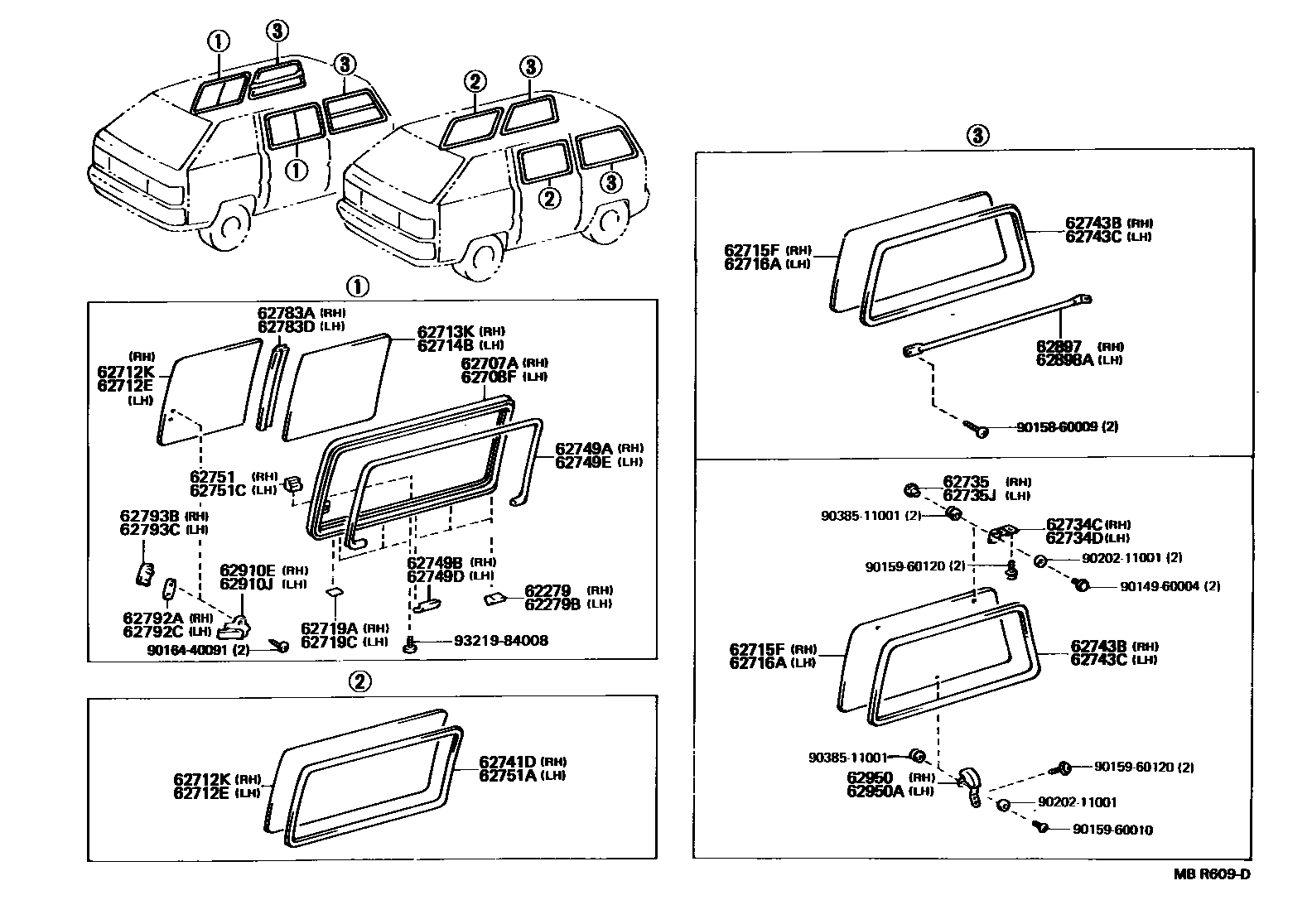

46 parts on this diagram · 2 diagrams in section
SIDE WINDOW for Toyota LITEACE VAN,WAGON
This section contains 48 genuine Toyota parts for the SIDE WINDOW system of the Toyota LITEACE VAN,WAGON. Key components include: SPACER, SIDE WINDOW FRAME, UPPER, SPACER, SIDE WINDOW FRAME, LH, FRAME SUB-ASSY, SIDE FRONT WINDOW, RH, FRAME SUB-ASSY, SIDE FRONT WINDOW, LH, GLASS, SIDE FRONT WINDOW, LH.
