Toyota LITEACE VAN,WAGON — POWER CURTAIN

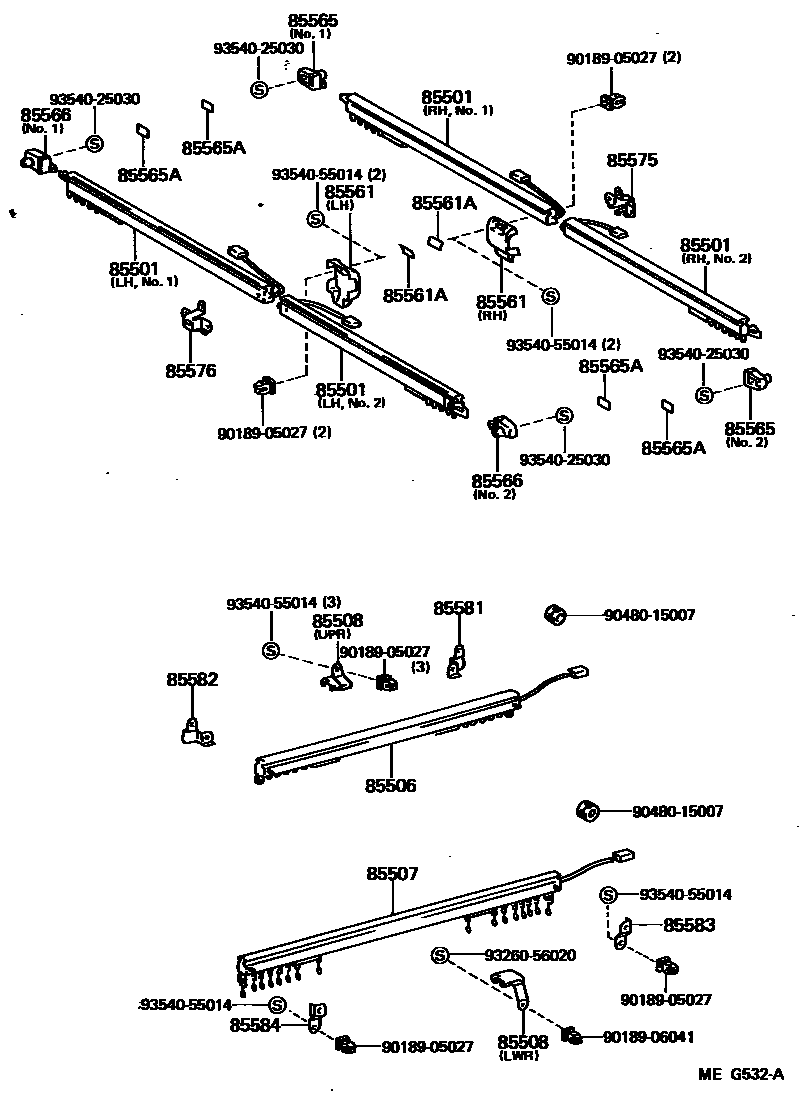

Parts diagram
85501RAIL SUB-ASSY, POWER CURTAIN
main85501-95702i198509-198808
RH,NO.1
main85502-95700i198509-198808
LH,NO.1
main85503-95701i198509-198808
RH,NO.2
main85504-95701i198509-198808
LH,NO.2
85506RAIL SUB-ASSY, AUTO CURTAIN BACK, UPPER
main85506-95700i198509-198808
85507RAIL SUB-ASSY, AUTO CURTAIN BACK, LOWER
main85507-95700i198509-198808
85508BRACKET SUB-ASSY, AUTO CURTAIN RAIL BACK
main85508-95700i198509-198808
UPR
main85508-95701i198509-198808
LWR
85561COVER, POWER CURTAIN MOTER, SIDE
main85563-95700-05i198509-198808
RH,BEIGE,BEIGE,TRIM4#
main85564-95700-05i198509-198808
LH,BEIGE,BEIGE,TRIM4#
85561ACAP, POWER CURTAIN MOTER COVER
main90950-01492-05×2i198509-198808
BEIGE,BEIGE,TRIM4#
85565END, AUTO CURTAIN RAIL, RH
main85565-95700-05i198509-198808
NO.1,BEIGE,BEIGE,TRIM4#
main85567-95700-05i198509-198808
NO.2,BEIGE,BEIGE,TRIM4#
85565ACAP, AUTO CURTAIN RAIL END
main90950-01488-05×4i198509-198808
BEIGE,BEIGE,TRIM4#
85566END, AUTO CURTAIN RAIL, LH
main85566-95700-05i198509-198808
NO.1,BEIGE,BEIGE,TRIM4#
main85568-95700-05i198509-198808
NO.2,BEIGE,BEIGE,TRIM4#
85575BRACKET, AUTO CURTAIN RAIL, RH
main85575-95700i198509-198808
85576BRACKET, AUTO CURTAIN RAIL, LH
main85576-95700i198509-198808
85581BRACKET, AUTO CURTAIN RAIL BACK, UPPER RH
main85581-95700i198509-198808
85582BRACKET, AUTO CURTAIN RAIL BACK, UPPER LH
main85582-95700i198509-198808
85583BRACKET, AUTO CURTAIN RAIL BACK, LOWER RH
main85583-95700i198509-198808
85584BRACKET, AUTO CURTAIN RAIL BACK, LOWER LH
main85584-95700i198509-198808
9018905027
main90189-05027
9018906041
main90189-06041
9048015007
main90480-15007
9326056020
main93260-56020
9354025030
main93540-25030
9354055014
main93540-55014

21 parts on this diagram · 1 diagram in section

POWER CURTAIN for Toyota LITEACE VAN,WAGON

This section contains 21 genuine Toyota parts for the POWER CURTAIN system of the Toyota LITEACE VAN,WAGON. Key components include: RAIL SUB-ASSY, POWER CURTAIN, RAIL SUB-ASSY, AUTO CURTAIN BACK, UPPER, RAIL SUB-ASSY, AUTO CURTAIN BACK, LOWER, BRACKET SUB-ASSY, AUTO CURTAIN RAIL BACK, COVER, POWER CURTAIN MOTER, SIDE.
