Toyota LITEACE VAN,WAGON — MOUNTING

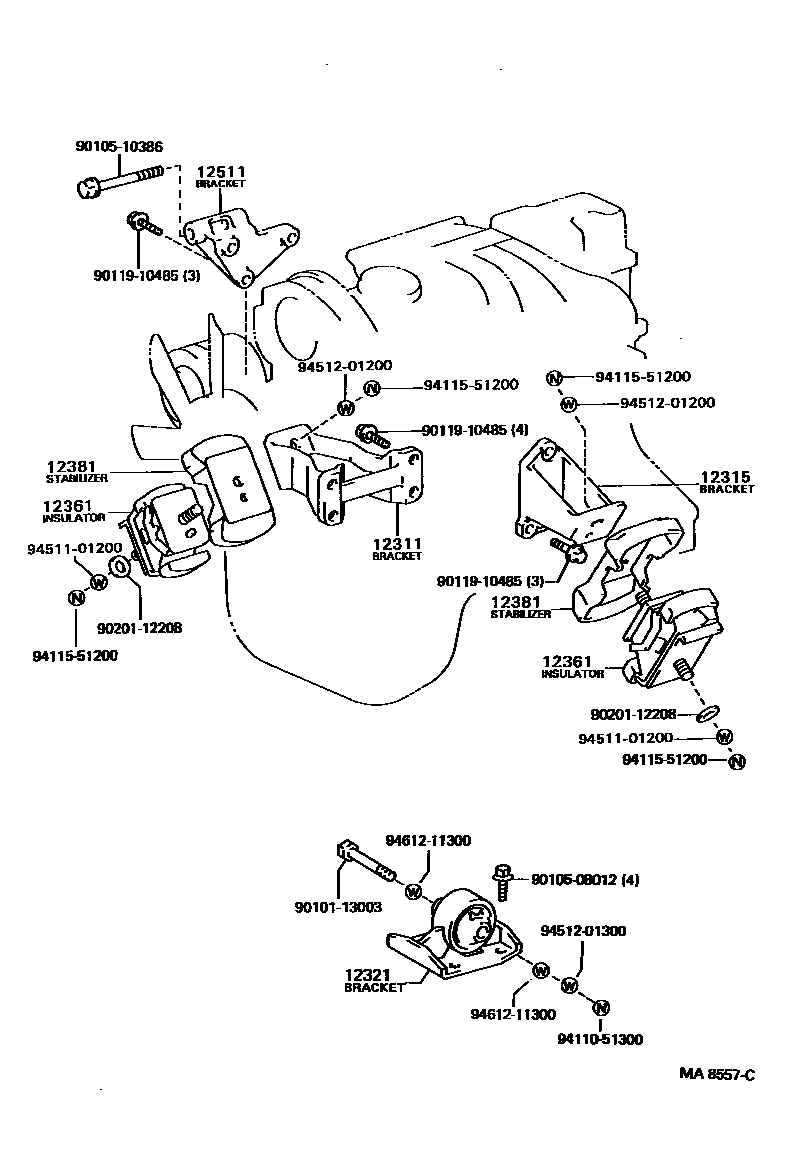

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13090i198808-199008

main12301-13150i198808-199201

main12311-64060i198808-199201

main12311-71010i198808-199201

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13091i198808-199201

main12315-64020i198808-199201

main12315-71010i198808-199201

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-18020i198808-199201

main12303-54010i198808-199201

main12303-64040i198808-199201

main12303-72010i198808-199201

main12321-13040i198808-199201

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-64022×2i198808-199201

main12361-71020×2i198808-199201

12381STABILIZER, ENGINE MOUNTING

main12381-64010×2i198808-199201

main12381-71030×2i198808-199201

12511BRACKET, ALTERNATOR, NO.1

main12501-73011i198808-199201

main12511-24011i198808-199201

main12511-64030i198808-199201

9010113003

main90101-13003

9010508012

main90105-08012

9010510386

main90105-10386

9011910485

main90119-10485

9020112208

main90201-12208

9411051300

main94110-51300

9411551200

main94115-51200

9451101200

main94511-01200

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

17 parts on this diagram · 3 diagrams in section

MOUNTING for Toyota LITEACE VAN,WAGON

This section contains 33 genuine Toyota parts for the MOUNTING system of the Toyota LITEACE VAN,WAGON. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, REAR NO.2, SPACER, ENGINE MOUNTING.
