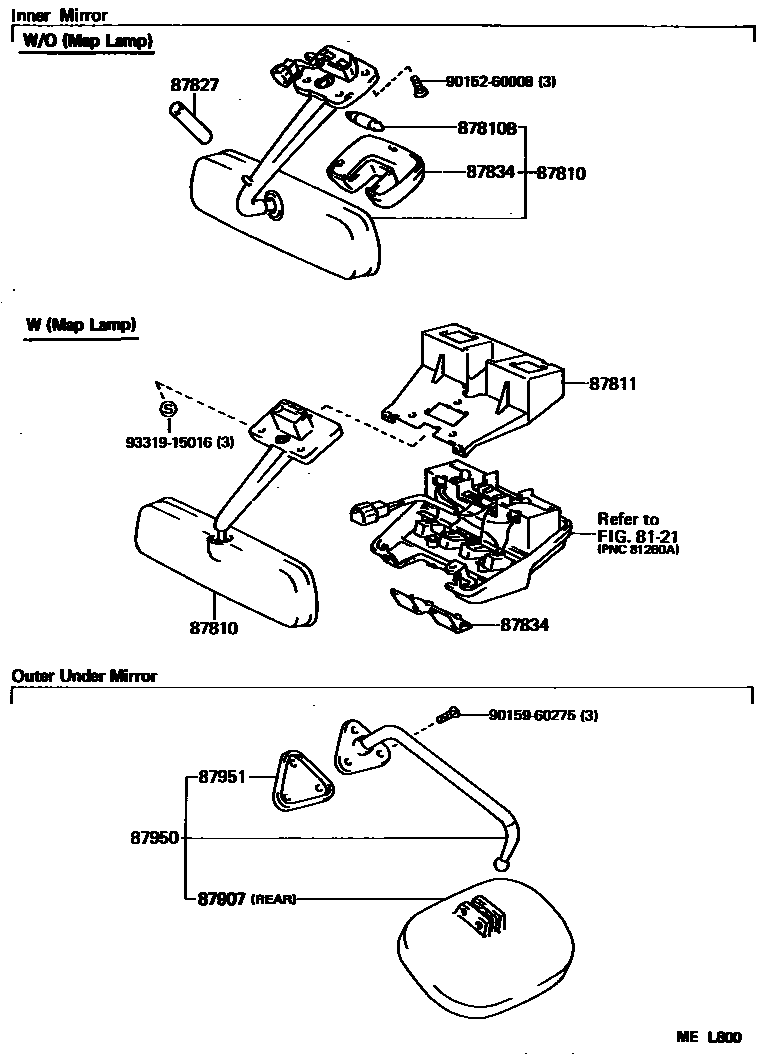

Toyota LITEACE VAN,WAGON — MIRROR
8121INTERIOR LAMP
87810MIRROR ASSY, INNER REAR VIEW
main87810-95705iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM30..(SSW,SUC)..DSL;CM31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP198808-199201
87810BBULB, INNER REAR VIEW MIRROR LAMP
main90981-11027iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201
87811BRACKET, INNER RR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-22020iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201
main87828-23010iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main81243-95701iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201
LIGHT SABLE,TRIM4#
GRAY,TRIM1#
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
FRONT
FRONT
REAR
FRONT
87950MIRROR ASSY, OUTER UNDER REAR VIEW
87951GASKET, OUTER UNDER REAR VIEW MIRROR
9015260008
main90152-60008
9015960275
main90159-60275
9331915016
main93319-15016
12 parts on this diagram · 2 diagrams in section
MIRROR for Toyota LITEACE VAN,WAGON
This section contains 26 genuine Toyota parts for the MIRROR system of the Toyota LITEACE VAN,WAGON. Key components include: INTERIOR LAMP, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH, MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP.
