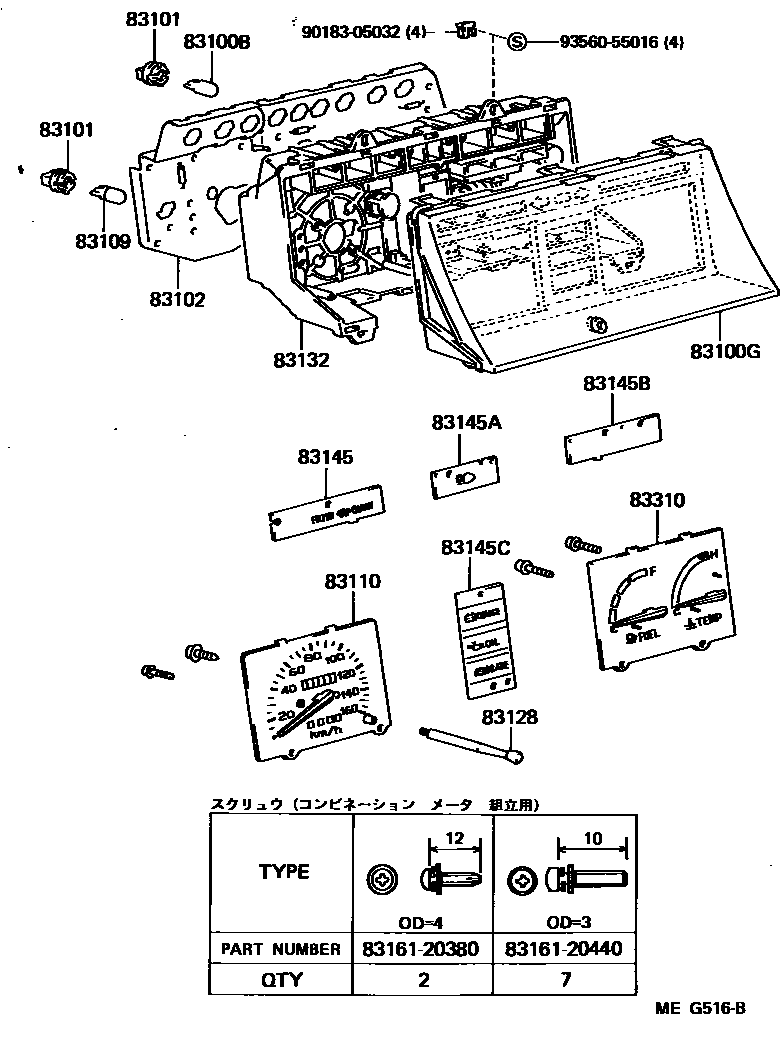

Toyota LITEACE VAN,WAGON — METER
83100BBULB, COMBINATION METER, NO.1
83100GGLASS, COMBINATION METER
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB:12V 3.4W
BULB:GREEN CAP,12V 3.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83109BULB, COMBINATION METER, NO.2
83110SPEEDOMETER ASSY
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
83145CLENS, METER, NO.4
83310GAGE ASSY, FUEL RECEIVER
8316120380CASE, COMBINATION METER MIRROR, NO.1
main83161-20380
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
9018305032
main90183-05032
9356055016
main93560-55016
17 parts on this diagram · 4 diagrams in section
METER for Toyota LITEACE VAN,WAGON
This section contains 44 genuine Toyota parts for the METER system of the Toyota LITEACE VAN,WAGON. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, WIRING & CLAMP, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB.
