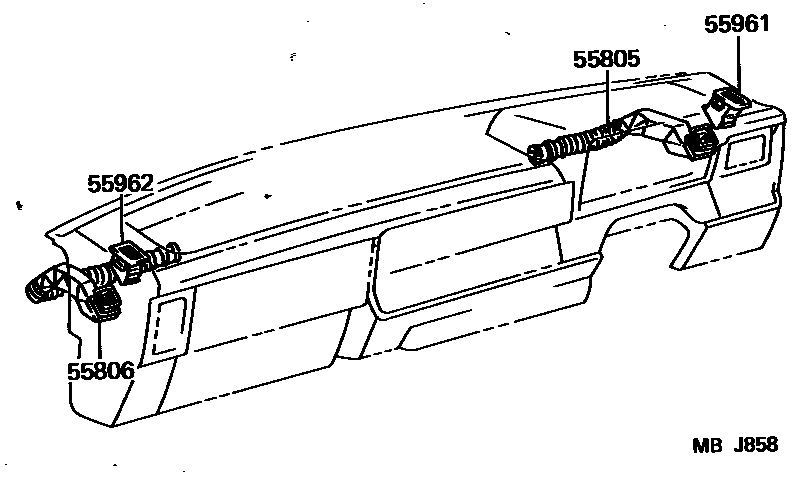

Toyota LITEACE VAN,WAGON — FRONT VENTILATOR

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55971-95700iCM3#,4#,KM3#,YM30,40198509-198808

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55972-95700iCM3#,4#,KM3#,YM30,40198509-198808

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-95701-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main55961-95701-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-95701-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main55962-95701-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

4 parts on this diagram · 1 diagram in section
