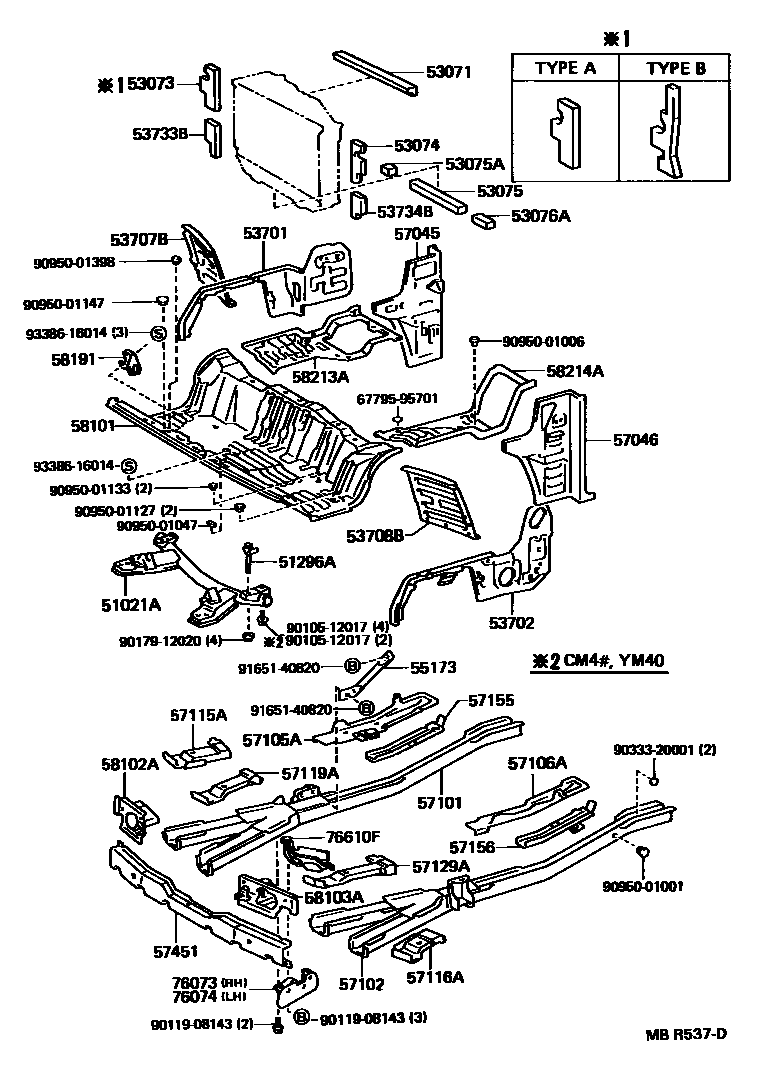

Toyota LITEACE VAN,WAGON — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51296ABOLT, ENGINE FRONT SUPPORT MEMBER
53071SHUTTER SUB-ASSY, HOT AIR, UPPER
53073SHUTTER SUB-ASSY, HOT AIR SIDE, RH
53074SHUTTER SUB-ASSY, HOT AIR SIDE, LH
53075SHUTTER SUB-ASSY, HOT AIR, LOWER
53075ASHUTTER SUB-ASSY, HOT AIR SIDE, A RH
53076ASHUTTER SUB-ASSY, HOT AIR SIDE, A LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707BAPRON SUB-ASSY, FENDER SIDE, RH
53708BAPRON SUB-ASSY, FENDER SIDE, LH
53733BSHUTTER, HOT AIR SIDE, A RH
53734BSHUTTER, HOT AIR SIDE, A LH
55173STAY, PARKING BRAKE
57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH
57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
main57101-95722iKM30,31,YM3#..V4D,W4D;CM30..FXV,GXL,LD,SSW,SUC;CM30,36,KM35,36..(V4D,W4D)..(HRF,SRF)..(DLX,SW)198808-199201
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57119APLATE, FRONT SIDE MEMBER, FRONT RH
57129APLATE, FRONT SIDE MEMBER, FRONT LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57451MEMBER, FRONT FLOOR CROSS
58101PAN SUB-ASSY, FRONT FLOOR
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58191FOOTREST, FRONT FLOOR
58213APANEL, SEAT FLOOR, RH
58214APANEL, SEAT FLOOR, LH
76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH
76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH
76610FPROTECTOR ASSY, STEERING MAIN SHAFT, RH
6779595701BUMPER, FRONT DOOR SWITCH
main67795-95701
9010512017
main90105-12017
9011908143
main90119-08143
9017912020
main90179-12020
9033320001
main90333-20001
9095001001
main90950-01001
9095001006
main90950-01006
9095001047
main90950-01047
9095001127
main90950-01127
9095001133
main90950-01133
9095001147
main90950-01147
9095001398
main90950-01398
9165140820
main91651-40820
9338616014
main93386-16014
51 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LITEACE VAN,WAGON
This section contains 78 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LITEACE VAN,WAGON. Key components include: MEMBER SUB-ASSY, ENGINE FRONT SUPPORT, BOLT, ENGINE FRONT SUPPORT MEMBER, SHUTTER SUB-ASSY, HOT AIR, UPPER, SHUTTER SUB-ASSY, HOT AIR SIDE, RH, SHUTTER SUB-ASSY, HOT AIR SIDE, LH.
