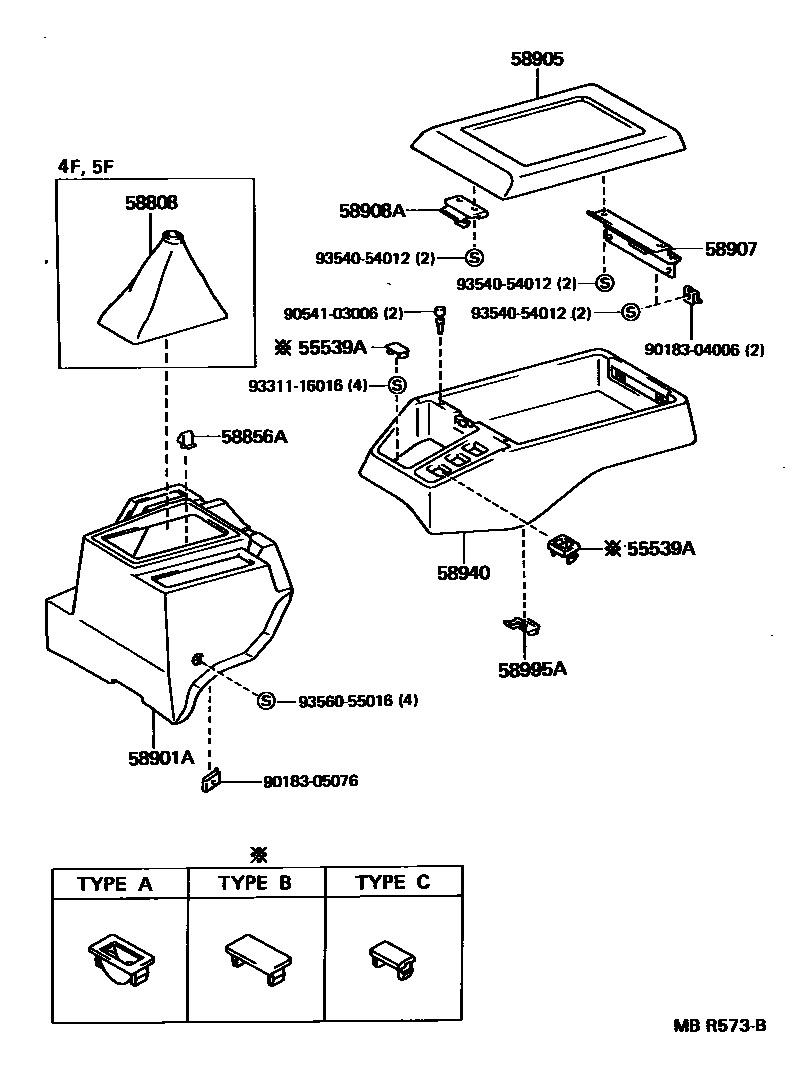

Toyota LITEACE VAN,WAGON — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-03i198808-199201

main55539-20020-36i198808-199201

main55539-24010-13i198808-199201

main55539-24010-46i198808-199201

main74617-16010-33i198808-199201

main74617-16010-58i198808-199201

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-95701-06i198808-199201

SABLE,TRIM4#

main58840-95701-13i198808-199201

GRAY,TRIM1#

58856AHOLDER, CONSOLE BOX

main58856-95700i198808-199201

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-95704-03i198808-199201

GRAY,TRIM1#

main58901-95704-16i198808-199201

SABLE,TRIM4#

main58901-95707-13i198808-199201

GRAY,TRIM1#

main58901-95710-06i198808-199201

SABLE,TRIM4#

main58901-95710-13i198808-199201

GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-95J00-03i198808-199201

GRAY,TRIM1#

main58951-95J00-26i198808-199201

SABLE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-95J00i198808-199201

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12010i198808-198810

main58908-95703i198810-199201

58940CONSOLE ASSY, REAR

main58810-95702-03i198808-199201

GRAY,TRIM1#

main58810-95702-16i198808-199201

SABLE,TRIM4#

main58811-95715-03i198808-199201

GRAY,TRIM1#

main58811-95715-16i198808-199201

SABLE,TRIM4#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95703i198808-199201

9018304006

main90183-04006

9018305076

main90183-05076

9054103006

main90541-03006

9331116016

main93311-16016

9354054012

main93540-54012

9356055016

main93560-55016

15 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota LITEACE VAN,WAGON

This section contains 19 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LITEACE VAN,WAGON. Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, PANEL, CONSOLE, UPPER REAR, HOLDER, CONSOLE BOX, BOX SUB-ASSY, CONSOLE, REAR.
