Toyota LITEACE VAN,WAGON — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
GRAY,TRIM1#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
74220ARMREST ASSY, FRONT, LH
GRAY,TRIM1#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
74231BPANEL, DOOR ARMREST BASE, RH
GRAY,TRIM1#
SABLE,TRIM4#
74232BPANEL, DOOR ARMREST BASE, LH
GRAY,TRIM1#
SABLE,TRIM4#
74267ACAP, DOOR ARMREST, NO.2
GRAY,TRIM1#
SABLE,TRIM4#
74310VISOR ASSY, RH
GRAY,TRIM1#
main74310-95719-06iCM30,YM30..FXV;CM30..5F..SUC..TD; CM30..5F..GXL;KM30,YM30..GXL,SUC;CM30..4FC..(GXL,SUC)198808-199201
main74310-95719-13iCM30,YM30..FXV;CM30..5F..SUC..TD; CM30..5F..GXL;KM30,YM30..GXL,SUC;CM30..4FC..(GXL,SUC)198808-199201
GRAY,TRIM1#
main74310-95734-03iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM30,KM30,YM30..(GXL,LD,SCA,SUC)..(CBR,DSL)198808-199201
GRAY,TRIM1#
main74310-95734-06iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM30,KM30,YM30..(GXL,SCA,SUC)..(CBR,DSL)198808-199201
SABLE,TRIM4#
GRAY,TRIM1#
SABLE,TRIM4#
74320VISOR ASSY, LH
GRAY,TRIM1#
main74320-95710-06iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201
main74320-95710-13iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201
main74320-95718-03iCM30..5F..GXL;CM30..(LD,SUC)..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,LD,SCA,SUC198808-199201
GRAY,TRIM1#
main74320-95718-06iCM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC198808-199201
SABLE,TRIM4#
74348HOLDER, VISOR
GRAY,TRIM1#
SABLE,TRIM4#
LIGHT GRAY,TRIM1#
SABLE,TRIM4#
74603CGRIP SUB-ASSY, ASSIST
GRAY,TRIM1#
SABLE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
GRAY,TRIM1#
SABLE,TRIM4#
main74610-12040-03×4iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201
main74610-12040-06×4iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201
74617CPLUG, ASSIST GRIP
main74617-16010-23×4iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW; CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC; CM30,40,KM30,YM40..LD198808-199201
GRAY,TRIM1#
main74617-16010-33×4iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW; CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC; CM30,40,KM30,YM40..LD198808-199201
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
74810PULL ASSY, DOOR, INSIDE
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
9015260005
main90152-60005
9016460006
main90164-60006
9018906020
main90189-06020
9323046016
main93230-46016
9331116020
main93311-16020
9354054012
main93540-54012

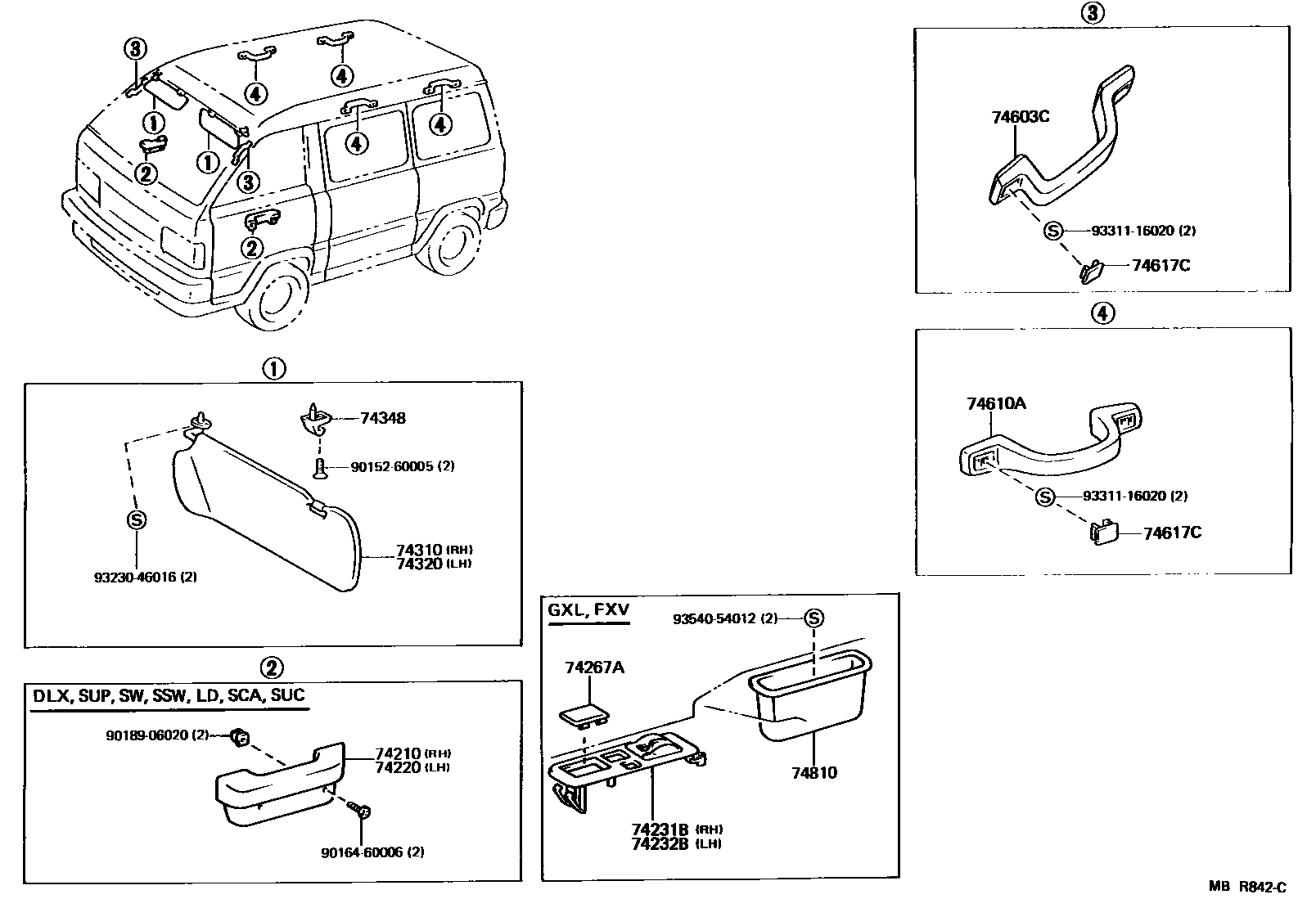

18 parts on this diagram · 1 diagram in section
ARMREST & VISOR for Toyota LITEACE VAN,WAGON
This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LITEACE VAN,WAGON. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, DOOR ARMREST BASE, RH, PANEL, DOOR ARMREST BASE, LH, CAP, DOOR ARMREST, NO.2.
