Toyota LITEACE VAN,WAGON — ARMREST & VISOR

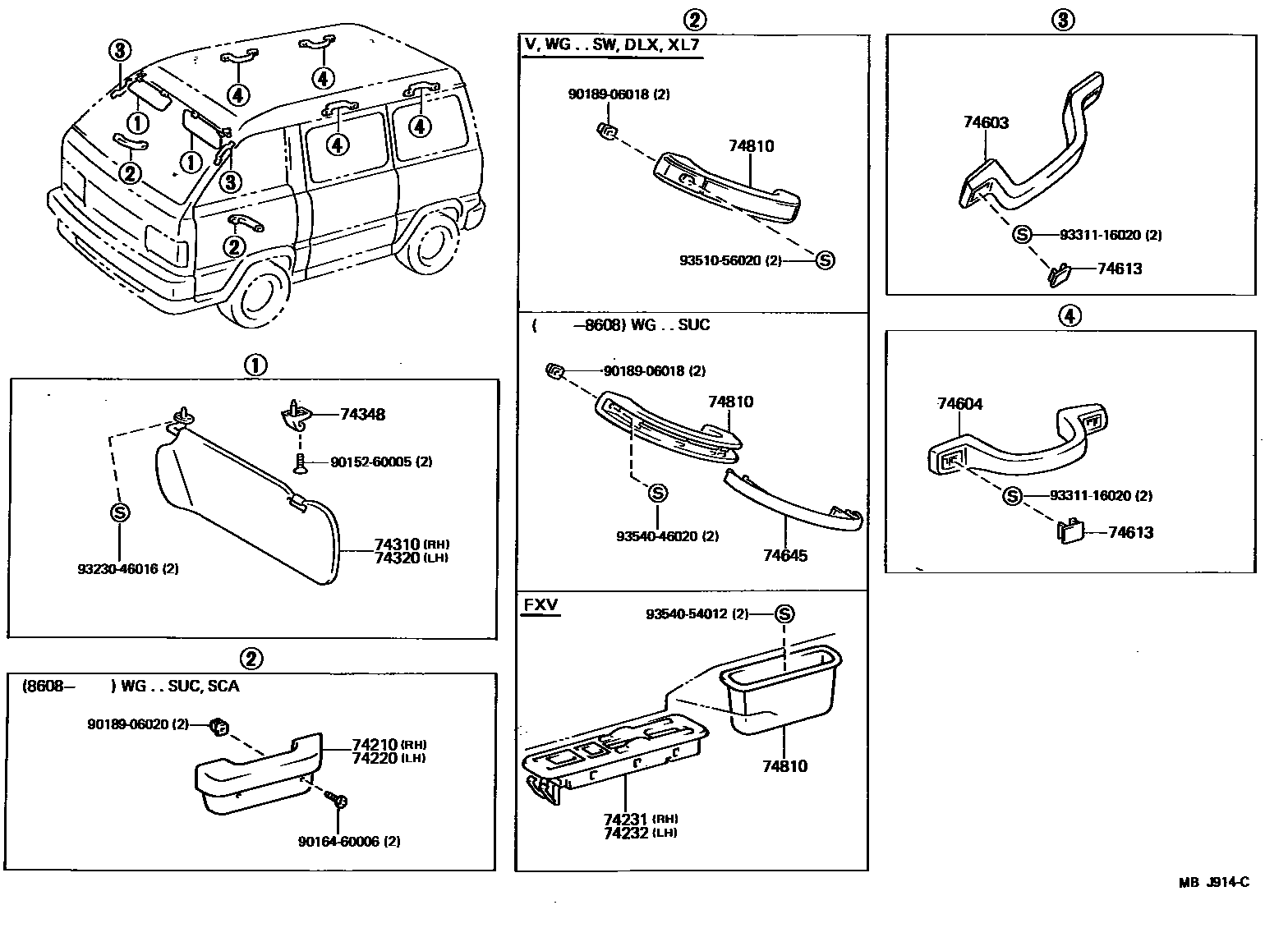

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-12110-14i198608-198808
BLUE,BLUE,TRIM4#,8#
main74210-12110-16i198608-198808
BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-12110-14i198608-198808
BLUE,BLUE,TRIM4#,8#
main74210-12110-16i198608-198808
BROWN,BROWN,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-87001-04i198509-198602
BLUE,BLUE
main74231-87001-05i198509-198602
BEIGE,BROWN; BEIGE,BROWN,TRIM4#
main74231-87002-04i198602-198808
BLUE,BLUE
main74231-87002-05i198602-198808
BEIGE,BROWN; BEIGE,BROWN,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-87001-04i198509-198808
BLUE,BLUE
main74232-87001-05i198509-198808
BEIGE,BROWN; BEIGE,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-95716-08i198509-198808
IVORY,IVORY,TRIM4#,8#
main74310-95719-03i198708-198808
W/SKYLITE ROOF,GRAY,GRAY,TRIM8#
main74310-95719-05i198509-198512
W/SKYLITE ROOF,BEIGE,BEIGE,TRIM4#
main74310-95719-15i198708-198808
W/SKYLITE ROOF,BEIGE,BEIGE,TRIM4#
main74310-95721-03i198510-198808
W/SKYLITE ROOF,GRAY,GRAY,TRIM8#
main74310-95721-05i198510-198808
W/SKYLITE ROOF,BEIGE,BEIGE,TRIM4#
main74310-95722-03i198510-198808
GRAY,GRAY,TRIM8#
main74310-95722-05i198510-198808
BEIGE,BEIGE,TRIM4#
main74310-95723-03i198509-198808
GRAY,GRAY,TRIM8#
main74310-95723-05i198509-198808
BEIGE,BEIGE,TRIM4#
main74310-95727-08i198510-198808
IVORY,IVORY,TRIM4#,8#
74320VISOR ASSY, LH
main74320-95707-08i198509-198808
IVORY,IVORY,TRIM4#,8#
main74320-95710-03i198509-198708
W/SKYLITE ROOF,GRAY,GRAY,TRIM8#
main74320-95710-05i198509-198512
W/SKYLITE ROOF,BEIGE,BEIGE,TRIM4#
main74320-95710-15i198512-198808
W/SKYLITE ROOF,BEIGE,BEIGE,TRIM4#
main74320-95712-03i198509-198808
GRAY,GRAY,TRIM8#
main74320-95712-05i198509-198808
BEIGE,BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-32010-03i198509-198808
LIGHT GRAY,LIGHT GRAY,TRIM4#,8#
main74348-32010-05i198509-198808
BEIGE,BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-95702-03×2i198509-198808
GRAY,GRAY,TRIM4#,8#
main74603-95702-05×2i198509-198808
BEIGE,BEIGE,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-12030-06×4i198509-198808
BROWN,BROWN,TRIM4#; W/SKYLITE ROOF,BROWN,BROWN,TRIM4#
main74610-12030-23×4i198509-198808
GRAY,GRAY,TRIM8#; W/SKYLITE ROOF,GRAY,GRAY,TRIM8#
main74610-12040-03i198509-198808
W/CURTAIN,GRAY,GRAY,TRIM8#
main74610-12040-05i198509-198808
W/CURTAIN,BEIGE,BEIGE,TRIM4#
74613PLUG, ASSIST GRIP
main74617-16010-15×4i198509-198808
BEIGE,BEIGE,TRIM4#
main74617-16010-23×8i198509-198808
GRAY,GRAY,TRIM4#,8#; GRAY,GRAY,TRIM8#
74645ESCUTCHEON, DOOR ASSIST GRIP
main74615-95701-04×2i198509-198608
BLUE,BLUE,TRIM4#,8#
main74615-95701-26×2i198509-198608
BROWN,BROWN,TRIM4#
74810PULL ASSY, DOOR, INSIDE
main69285-95700-04×2i198509-198808
BLUE,BLUE,TRIM4#,8#
main69285-95700-16×2i198509-198808
BROWN,BROWN,TRIM4#
main74630-95700-04×2i198509-198608
BLUE,BLUE,TRIM4#,8#
main74630-95700-26×2i198509-198608
BROWN,BROWN,TRIM4#
main74811-95706-04×2i198509-198808
BLUE,BLUE,TRIM4#,8#
main74811-95706-06×2i198509-198808
BROWN,BROWN,TRIM4#
9015260005
main90152-60005
9016460006
main90164-60006
9018906018
main90189-06018
9018906020
main90189-06020
9323046016
main93230-46016
9331116020
main93311-16020
9351056020
main93510-56020
9354046020
main93540-46020
9354054012
main93540-54012

21 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota LITEACE VAN,WAGON

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LITEACE VAN,WAGON. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
