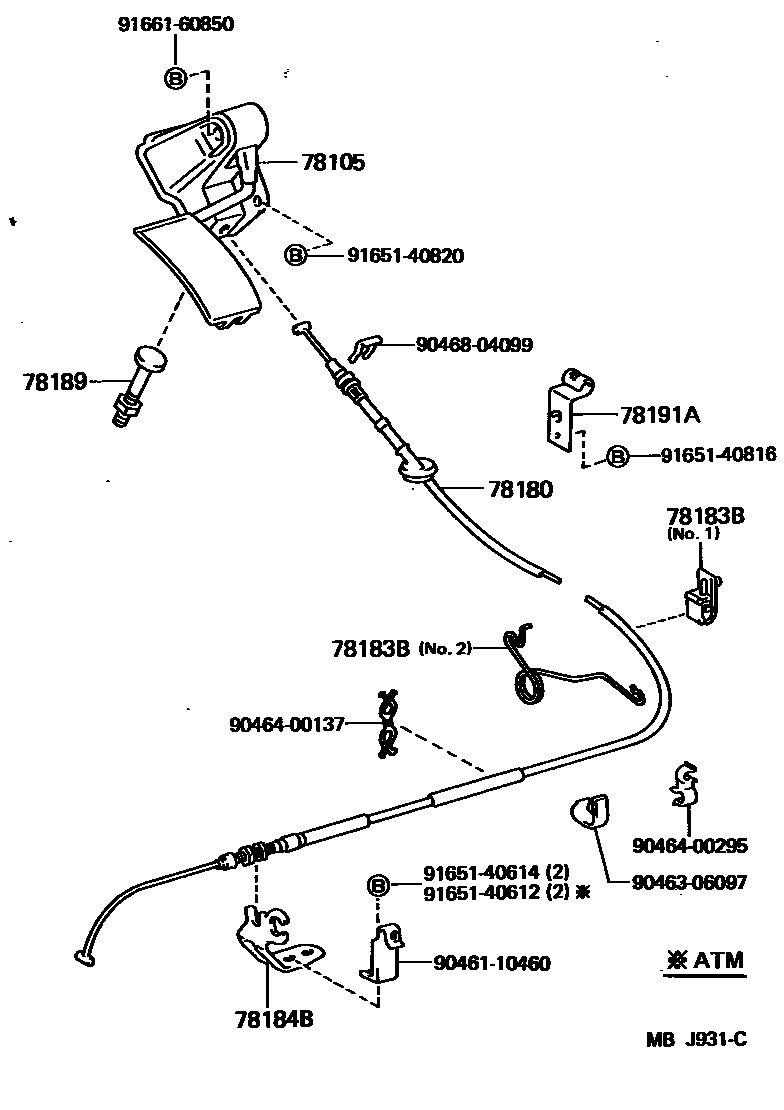

Toyota LITEACE VAN,WAGON — ACCELERATOR LINK
78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78180WIRE ASSY, ACCELERATOR
78183BCLAMP, ACCELERATOR CONTROL CABLE
NO.1
NO.2
78184BBRACKET, ACCELERATOR CONTROL CABLE
78189BOLT, ACCELERATOR PEDAL STOPPER
78191ACLAMP (FOR ACCELERATOR WIRE SET)
9046110460
main90461-10460
9046306097
main90463-06097
9046400137
main90464-00137
9046400295
main90464-00295
9046804099
main90468-04099
9165140612
main91651-40612
9165140614
main91651-40614
9165140816
main91651-40816
9165140820
main91651-40820
9166160850
main91661-60850
16 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota LITEACE VAN,WAGON
This section contains 27 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LITEACE VAN,WAGON. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, WIRE ASSY, ACCELERATOR, CLAMP, ACCELERATOR CONTROL CABLE, BRACKET, ACCELERATOR CONTROL CABLE, BOLT, ACCELERATOR PEDAL STOPPER.
