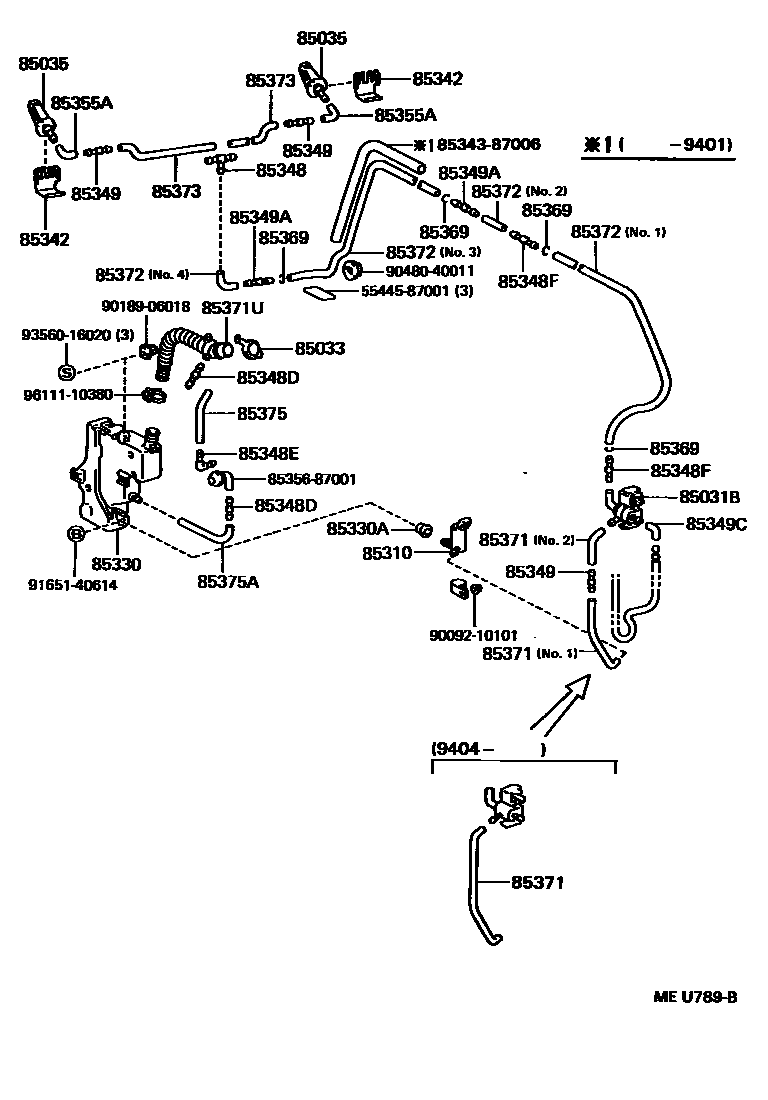

Toyota LITEACE VAN WAGON — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28010i199201-200007

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i199201-200007

main85332-87002i199201-199610

*EX-USSR OR W(REAR WIPER)

85035NOZZLE SUB-ASSY, WASHER

main85381-28030i199201-199610

main85381-28040i199201-199610

main85381-28050i199201-200007

main85381-28060i199201-200007

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20200i199201-199610

*EX-USSR OR W(REAR WIPER)

main85330-28050i199201-200007

85330JAR ASSY, WINDSHIELD WASHER

main85315-28010i199201-199610

*EX-USSR OR W(REAR WIPER)

main85330-87006i199201-200007

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199201-200007

85342HOLDER, WASHER NOZZLE

main85383-28010×2i199201-200007

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-28110i199201-200007

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-10260×2i199201-199610

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i199201-199610

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85349-20010×2i199201-199610

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85031-12250×2i199503-200007

main85349-89122×2i199201-199404

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22470×2i199201-199610

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-14481i199201-199610

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-14481×2i199201-199610

85369CLAMP

main85369-28030×2i199201-199311

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299i199412-199610

L=1000; L=1000,USSR SPEC OR W(REAR WIPER); L=1000,W(REAR WIPER)

main90446-06013i199201-199404

L=1000,*EX-USSR OR W(REAR WIPER),NO.2; L=1000,NO.2; L=1000,W(REAR WIPER),NO.2

main90446-07001i199201-199404

L=1800,*EX-USSR OR W(REAR WIPER),NO.1; L=1800,NO.1; L=1800,W(REAR WIPER),NO.1

85371UTUBE, RUBBER

main90099-33739i199201-199610

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075i199201-199610

L=1100,*EX-USSR OR W(REAR WIPER),NO.2; L=1100,NO.2; L=1100,W(REAR WIPER),NO.2

main90099-33622i199405-199610

L=2960,W(REAR WIPER),NO.3

main90099-33649i199201-199610

L=2400,*EX-USSR OR W(REAR WIPER),NO.1; L=2400,NO.1; L=2400,W(REAR WIPER),NO.1

main90099-33683i199405-199610

L=3350,W(REAR WIPER),NO.3

main90099-33792i199201-199610

L=40,*EX-USSR OR W(REAR WIPER),NO.4; L=40,NO.4; L=40,W(REAR WIPER),NO.4

main90099-59063i199201-199610

L=2800,*EX-USSR OR W(REAR WIPER),NO.3; L=2800,W(REAR WIPER),NO.3

main90099-59064i199201-199405

L=2500,W(REAR WIPER),NO.1

main90099-59130i199405-199610

L=2050,W(REAR WIPER),NO.1

main90446-07001i199201-199610

L=1800

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i199201-199505

L=1450

main90099-59153i199201-199505

L=330

main90099-59154i199505-200007

L=1800(*H,L=140)

85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main90446-06013i199201-199610

L=1000

85375AHOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)

main90099-33027i199201-199610

L=1000(*H,L=330)

5544587001GARNISH, INSTRUMENT PANEL OUTSIDE, RH

main55445-87001

8534387006HOSE, WINDSHIELD WASHER SUCTION

main85343-87006

8535687001PACKING (FOR WINDSHIELD WASHER JAR)

main85356-87001

9009210101

main90092-10101

9018906018

main90189-06018

9048040011

main90480-40011

9165140614

main91651-40614

9356016020

main93560-16020

9611110380

main96111-10380

31 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota LITEACE VAN WAGON

This section contains 34 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LITEACE VAN WAGON. Key components include: VALVE SUB-ASSY, WASHER, CAP ASSY, WINDSHIELD WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
