Toyota LITEACE VAN WAGON — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1INSTRUMENT PANEL SWITCH 0007 1COWL 0008 1COWL 0009 1COMBINATION SWITCH 0010 1COMBINATION SWITCH 0011 1RELAY BLOCK 0012 1ROOF,DOOR & FLOOR

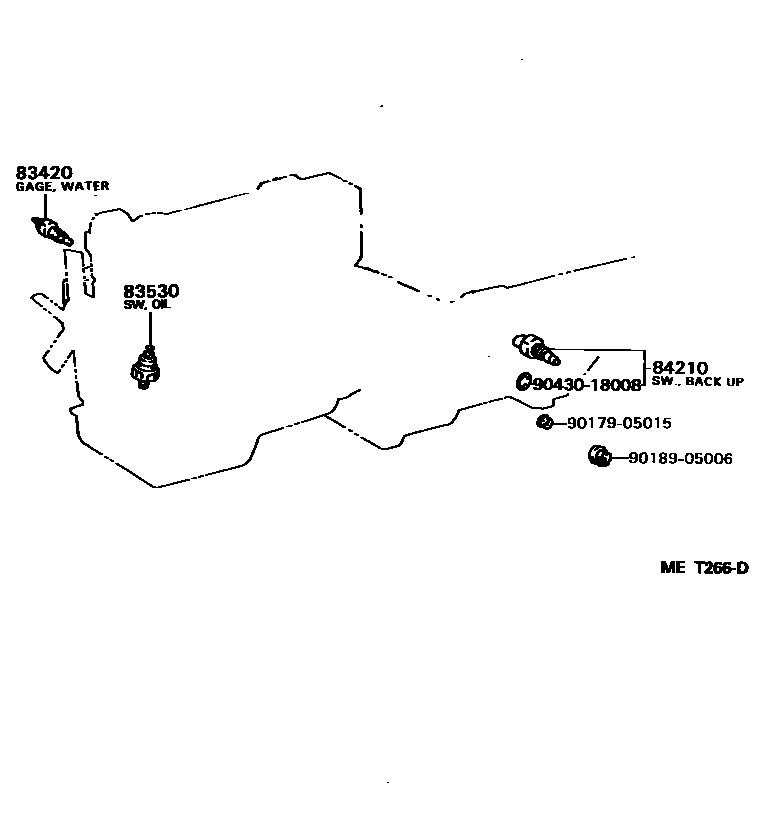

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iKR2#,YR2#,39199309-200007

NIPPONDENSO

main83420-20020iCR27199201-199610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYR2#,39199201-199309

main83530-14060iKR2#199309-199411

main83530-14070iYR2#,39199309-199601

main83530-28020iYR21199803-200007

main83530-30060iCR27199201-199309

main83530-30080iKR2#199201-199309

main83530-30090iKR2#199411-199803

main83530-30100iCR27199309-199610

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCR27,KR2#,YR2#,39..MTM199201-200007

9017905015

main90179-05015

9018905006

main90189-05006

9043018008

main90430-18008

6 parts on this diagram · 12 diagrams in section
