Toyota LITEACE VAN WAGON — SLIDE ROLLER & RAIL
67283BCOVER, SLIDE DOOR STOPPER CUSHION, NO.1
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68310ROLLER ASSY, SLIDE DOOR, UPPER
68310AROLLER ASSY, SLIDE DOOR, UPPER, LH
68330AROLLER ASSY, SLIDE
68335PAD, SLIDE DOOR UPPER RAIL
68335APAD, SLIDE DOOR UPPER RAIL, LH
68340ROLLER ASSY, SLIDE, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68379SPRING, SLIDE DOOR CATCH, RH
68389SPRING, SLIDE DOOR CATCH, LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
NEWZEALAND SPEC; W(POWER DOOR LOCK)
69413STOP, SLIDE DOOR DOWN MALE
LOWER
NEWZEALAND SPEC; UPPER; W(POWER LOCK)
69418BSHIM, SLIDE DOOR DOWN STOP MALE
NEWZEALAND SPEC; W(POWER DOOR LOCK)
69418CSTOPPER, BACK DOOR MALE, LOWER
9010506128
main90105-06128
9011906334
main90119-06334
9011908766
main90119-08766
9015960289
main90159-60289
9017906097
main90179-06097
9017908053
main90179-08053
9046706127
main90467-06127
9046709115
main90467-09115
9054109086
main90541-09086
9165160614
main91651-60614
91651A0612
main91651-A0612

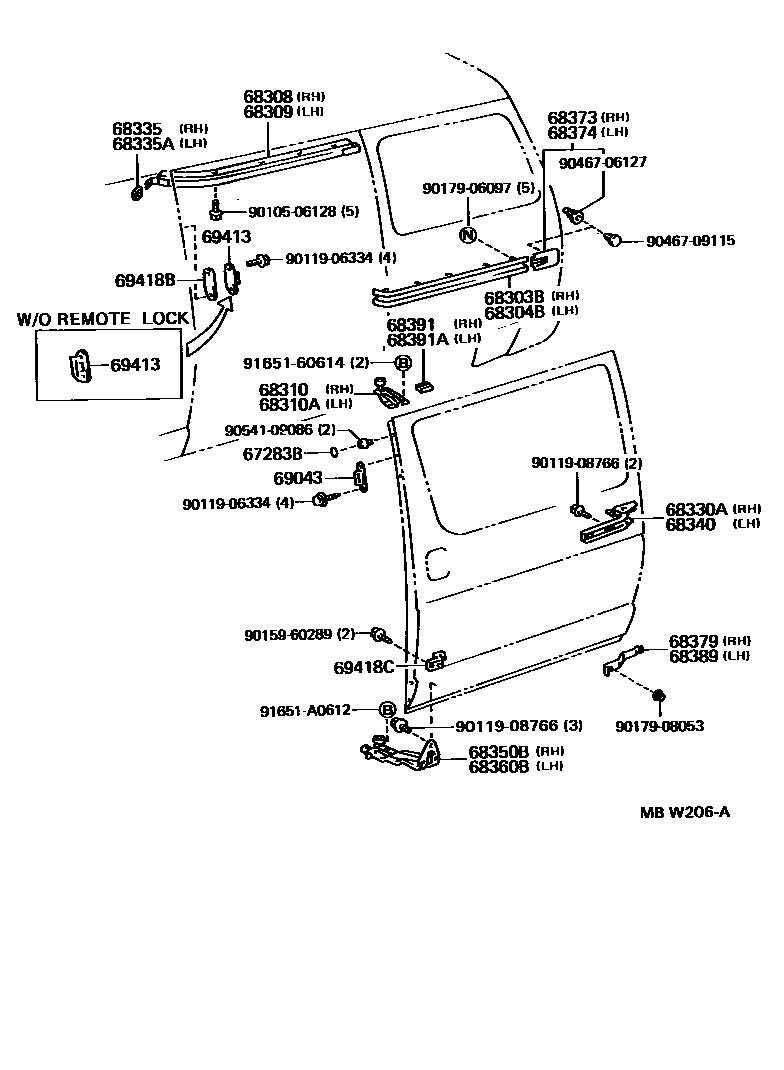

34 parts on this diagram · 1 diagram in section
SLIDE ROLLER & RAIL for Toyota LITEACE VAN WAGON
This section contains 34 genuine Toyota parts for the SLIDE ROLLER & RAIL system of the Toyota LITEACE VAN WAGON. Key components include: COVER, SLIDE DOOR STOPPER CUSHION, NO.1, RAIL SUB-ASSY, SLIDE DOOR, CENTER RH, RAIL SUB-ASSY, SLIDE DOOR, CENTER LH, RAIL SUB-ASSY, SLIDE DOOR, UPPER RH, RAIL SUB-ASSY, SLIDE DOOR, UPPER LH.
