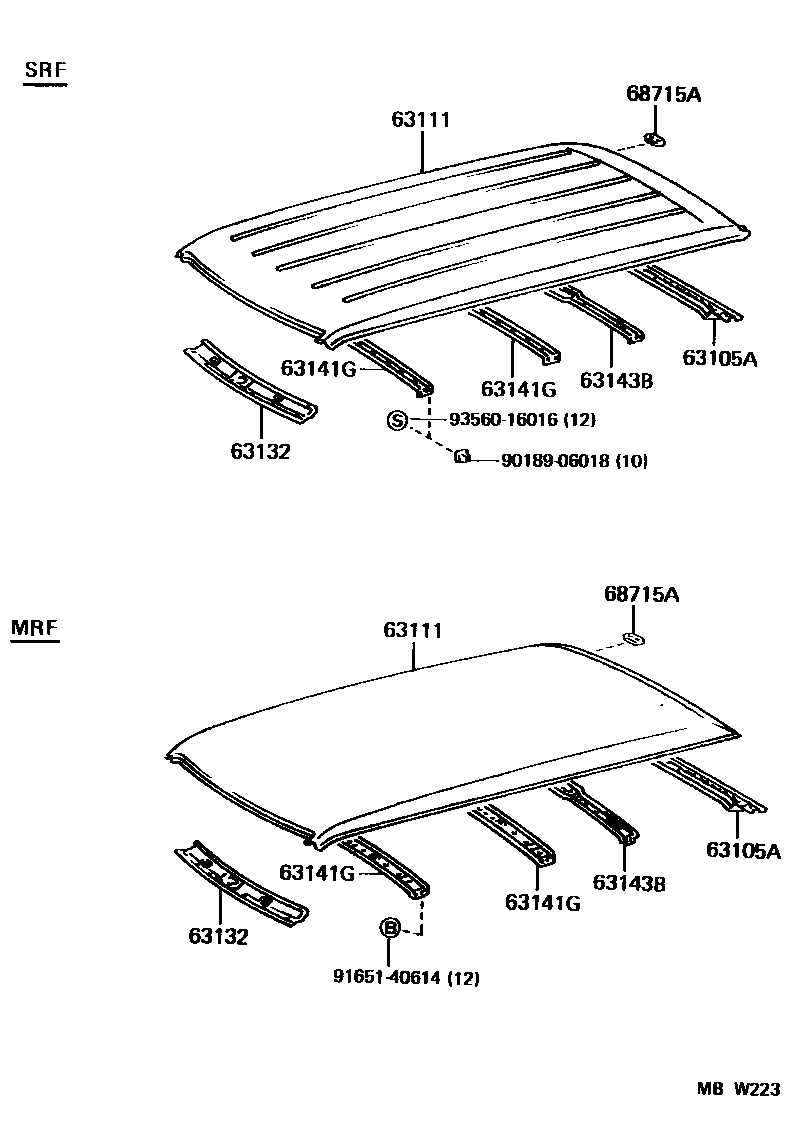

Toyota LITEACE VAN WAGON — ROOF PANEL & BACK PANEL

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-87011iCR27,KR2#,YR2#,39199201-200007

63111PANEL, ROOF

main63111-87017iKR28,YR2#,39..MRF199201-200007

main63111-87020iCR27,KR27,YR39..SRF199201-199610

63132PANEL, WINDSHIELD HEADER, INNER

main63132-28030iCR27,KR2#,YR2#,39199201-200007

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-87008×2iCR27,KR27,YR39..SRF199201-199610

main63141-87009×2iKR28,YR2#,39..MRF199201-200007

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-87002iCR27,KR27,YR39..SRF199201-199610

main63143-87003iKR28,YR2#,39..MRF199201-200007

68715APLATE, DOOR HINGE, UPPER

main68715-28010×2iCR27,KR2#,YR2#,39199201-200007

9018906018

main90189-06018

9165140614

main91651-40614

9356016016

main93560-16016

9 parts on this diagram · 1 diagram in section
