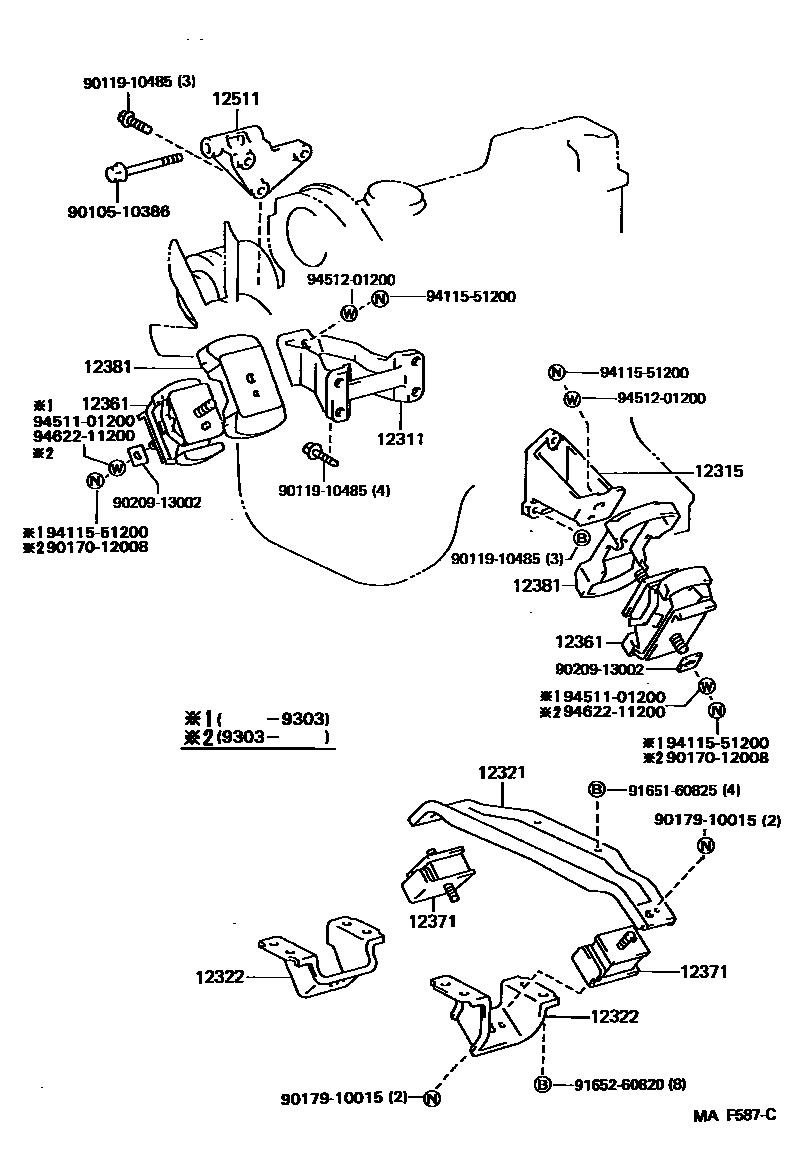

Toyota LITEACE VAN WAGON — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12322BRACKET, ENGINE MOUNTING, REAR NO.2
RH
RH
LH
LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
12511BRACKET, ALTERNATOR, NO.1
9010510386
main90105-10386
9011910485
main90119-10485
9017012008
main90170-12008
9017910015
main90179-10015
9020913002
main90209-13002
9165160825
main91651-60825
9165260820
main91652-60820
9411551200
main94115-51200
9451101200
main94511-01200
9451201200
main94512-01200
9462211200
main94622-11200
19 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota LITEACE VAN WAGON
This section contains 37 genuine Toyota parts for the MOUNTING system of the Toyota LITEACE VAN WAGON. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, REAR NO.2.
