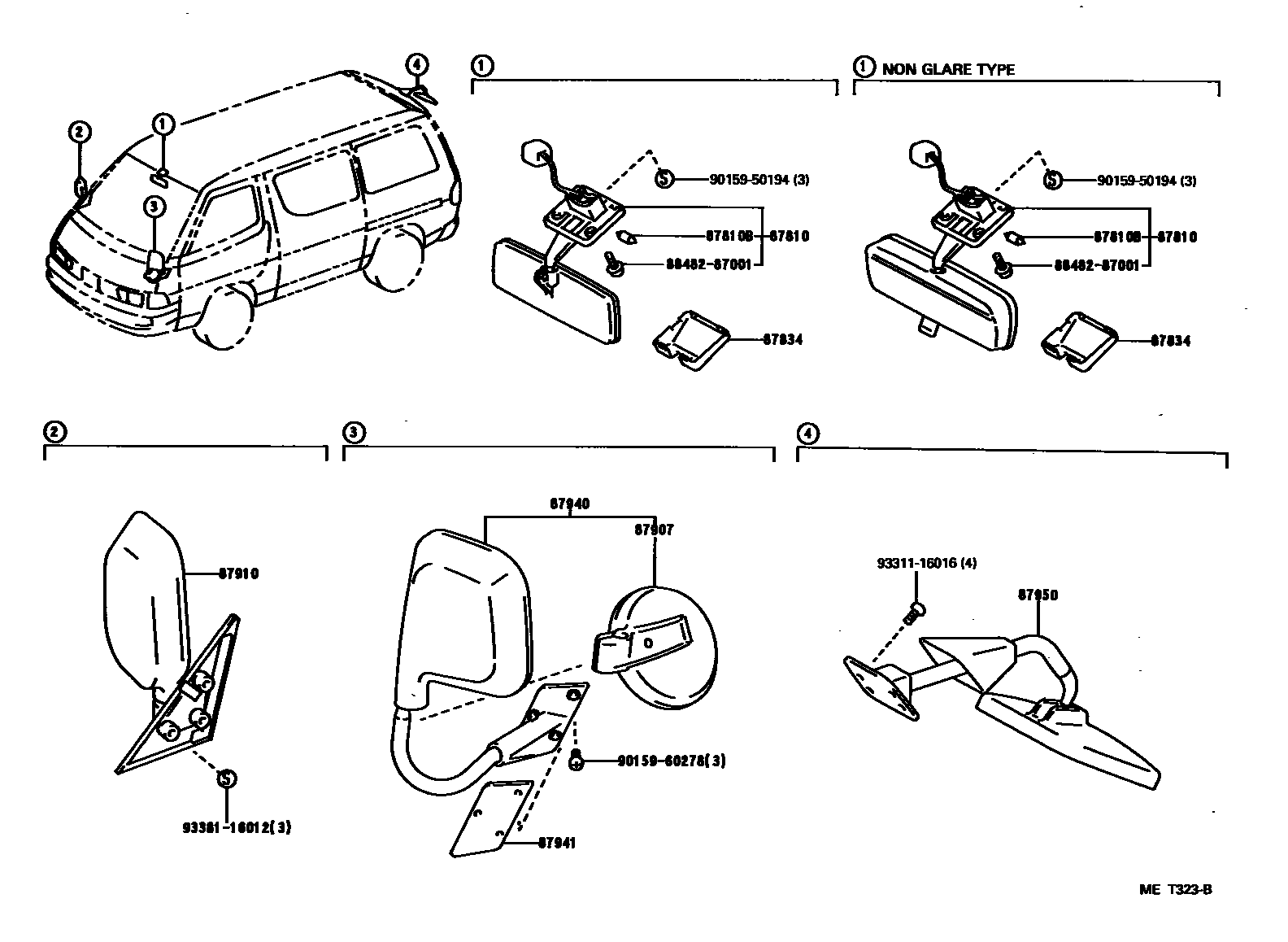

Toyota LITEACE VAN WAGON — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
87810BBULB, INNER REAR VIEW MIRROR LAMP
12V 10W
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NEWZEALAND SPEC
REMOTE CONTROL MIRROR
87940MIRROR ASSY, OUTER REAR VIEW, LH
W(UNDER MIRROR)
NEWZEALAND SPEC
REMOTE CONTROL MIRROR
87941GASKET, OUTER REAR VIEW MIRROR, LH
87950MIRROR ASSY, OUTER UNDER REAR VIEW
8848287001CAP, COOLER
main88482-87001
9015950194
main90159-50194
9015960278
main90159-60278
9331116016
main93311-16016
9338116012
main93381-16012
13 parts on this diagram · 5 diagrams in section
MIRROR for Toyota LITEACE VAN WAGON
This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota LITEACE VAN WAGON. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER UNDER VIEW, MIRROR ASSY, OUTER REAR VIEW, RH.
