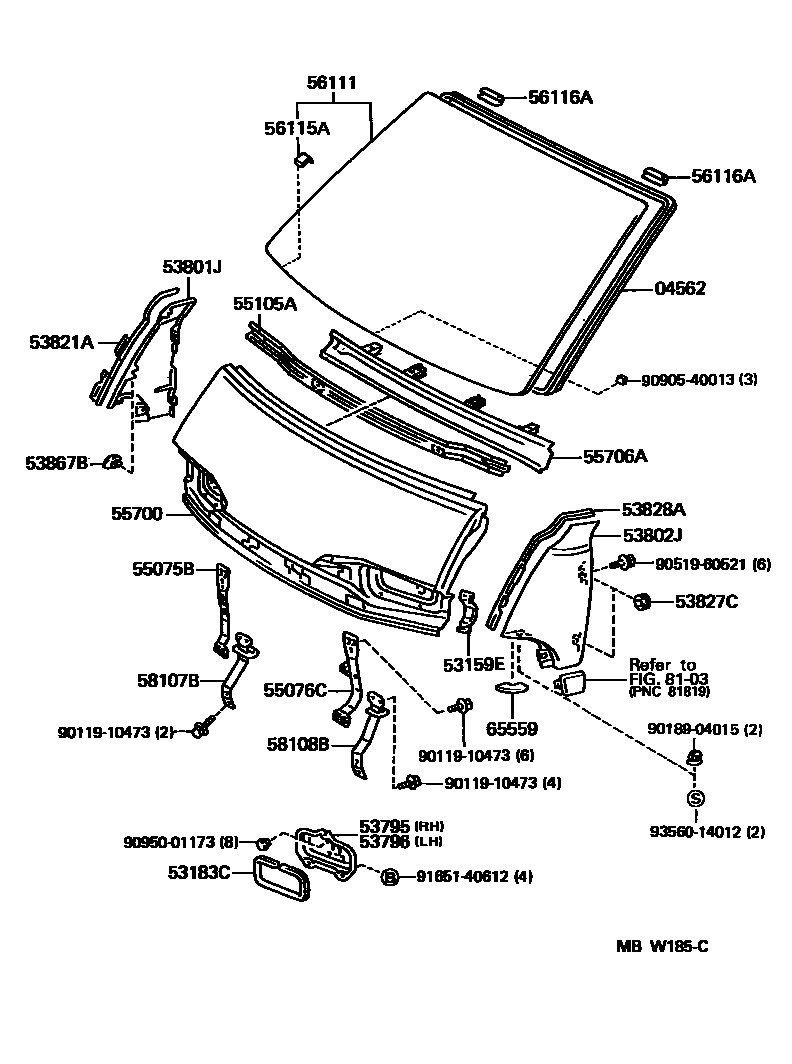

Toyota LITEACE VAN WAGON — FRONT PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-28030×2iCR27,KR2#,YR2#,39199201-200007

53159EPAD, HEADLAMP DOOR

main53159-28010iCR27,KR27,YR22,39..RHD199201-199301

main53159-28020iCR27,KR2#,YR21..LHD199201-199301

53183CPACKING, HEADLAMP SERVICE HOLE COVER

main53183-28040×2iCR27,KR2#,YR2#,39..02S,05S,08S199201-200007

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-28010iYR22199201-199610

main53795-28020iCR27,KR2#,YR21,39..02S,05S,08S199201-200007

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-28010iYR22199201-199610

main53796-28020iCR27,KR2#,YR21,39..02S,05S,08S199201-200007

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53813-28020iCR27,KR2#,YR2#,39199201-200007

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53814-28020iCR27,KR2#,YR2#,39199201-200007

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-28010iCR27,KR2#,YR2#,39199201-200007

53827CPROTECTOR, FRONT SIDE PANEL, NO.4

main53827-28010×4iCR27,KR2#,YR2#,39199201-200007

53828APROTECTOR, FRONT SIDE PANEL, NO.3

main53828-28020iCR27,KR2#,YR2#,39199201-200007

53867BRETAINER, FRONT SIDE PANEL

main53867-28020×4iCR27,KR2#,YR2#,39199201-200007

55075BREINFORCEMENT SUB-ASSY, FRONT PANEL, LOWER RH

main55075-28020iCR27,KR2#,YR2#,39199201-200007

55076CNET SUB-ASSY, AIR DUCT

main55076-28070iCR27,KR27,YR22,39..RHD199201-199610

main55076-28080iCR27,KR2#,YR21..LHD199201-200007

55105AMEMBER SUB-ASSY, FRONT PANEL

main55105-28050iCR27,KR27,YR22,39..RHD199201-199610

main55105-28060iCR27,KR2#,YR21..LHD199201-200007

55700PANEL ASSY, FRONT

main55701-28230iCR27,YR39..RHD199201-199610

main55701-28250iCR27,KR2#,YR21..LHD199201-200007

main55701-28260iYR22199201-199610

sub55701-28390

main55701-28290iKR27..RHD199201-199610

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-28030iCR27,KR27,YR22,39..RHD199201-199610

main55706-28040iCR27,KR2#,YR21..LHD199201-200007

56111GLASS, WINDSHIELD

main56111-28100iCR27,KR2#,YR2#,39199201-199408

*LAM,T=5.3

main56111-28110iYR39..05S;CR27,KR2#,YR2#199201-199408

*LAM,T=5.3,BLUE

main56111-28190iYR39..05S;CR27,KR2#,YR2#199408-200007

*LAM,T=5.3,BLUE

main56111-28220iCR27,KR2#,YR2#,39199408-200007

*LAM,T=5.3

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-28010×2iCR27,KR2#,YR2#,39199201-199401

56116ASPACER, WINDSHIELD GLASS

main56116-28020×2iCR27,KR2#,YR2#,39199201-200007

58107BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-28030iCR27,KR2#,YR2#,39199201-200007

58108BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-28040iCR27,KR27,YR22,39..RHD199201-199610

main58108-28050iCR27,KR2#,YR21..LHD199201-200007

65559PAD, SIDE PANEL REAR END POST

main65559-28010iCR27,KR2#,YR2#,39199201-199301

8103

9011910473

main90119-10473

9018904015

main90189-04015

9051960521

main90519-60521

9090540013

main90905-40013

9095001173

main90950-01173

9165140612

main91651-40612

9356014012

main93560-14012

30 parts on this diagram · 1 diagram in section
