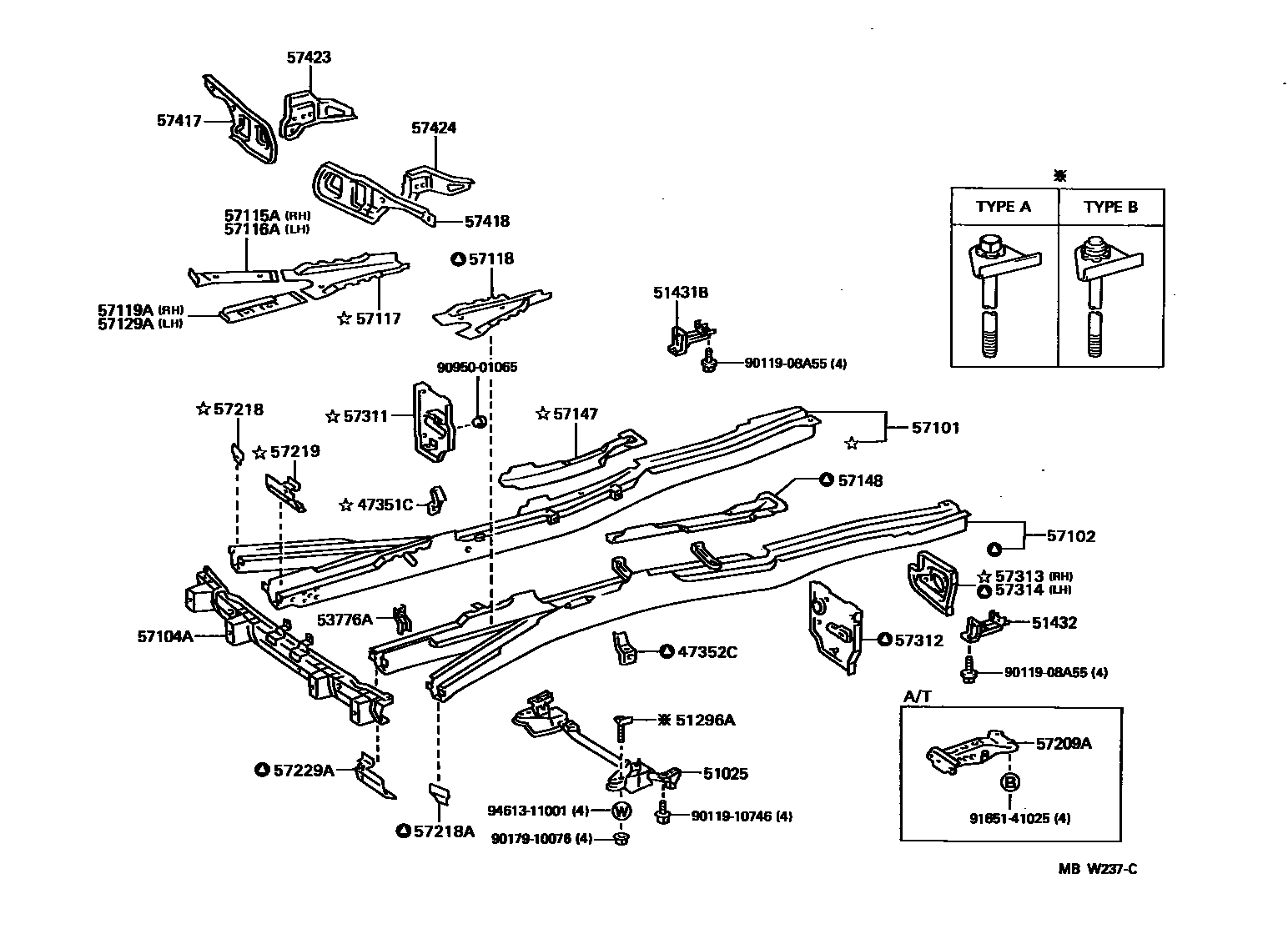

Toyota LITEACE VAN WAGON — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

47351CBRACKET, FLEXIBLE HOSE, RH

main47351-87003iCR27,KR2#,YR2#,39199201-200007

47352CBRACKET, FLEXIBLE HOSE, LH

main47352-87003iCR27,KR2#,YR2#,39199201-200007

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-28030iKR27..RHD199201-199610

main51025-28070iKR2#..LHD199201-199610

main51025-28100iYR2#,39199201-200007

main51025-28110iCR27199201-199610

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-87001×2iCR27,KR2#,YR2#,39199201-200007

TYPE A

main51296-87002×2iCR27,KR2#,YR2#,39199201-200007

TYPE B

51431BBRACKET, ENGINE REAR MOUNTING

main51431-87002iKR27..RHD;CR27,YR2#,39..MTM199201-200007

51432BRACKET, ENGINE REAR MOUNTING, LH

main51432-87002iKR27..RHD;CR27,YR2#,39..MTM199201-200007

53776ABRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2

main53776-87001iKR2#,YR2#,39199201-200007

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28908iCR27,KR2#,YR21..LHD..4D199201-200007

main57101-28915iKR27..RHD199201-199610

main57101-28917iKR27..02S199201-199610

main57101-28918iCR27,YR22,39..RHD199201-199610

HONGKONG SPEC

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28903iCR27,KR28,YR2#,39;KR27..03S,05S,06S199309-200007

main57102-28904iKR27,YR22,39..RHD199201-199309

main57102-28907iKR27..02S199201-199610

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-28040iYR21199407-200007

CHINA SPEC

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-87005iCR27,KR2#,YR2#,39199201-200007

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-87005iCR27,KR2#,YR2#,39199201-200007

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-28020iCR27,KR2#,YR2#,39199201-200007

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-28020iCR27,KR2#,YR2#,39199201-200007

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-87003iCR27,KR2#,YR2#,39199201-200007

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-87003iCR27,KR2#,YR2#,39199201-200007

57147PLATE, FRONT SIDE MEMBER, REAR RH

main57147-28010iCR27,KR2#,YR2#,39199201-199211

main57147-28040iCR27,KR2#,YR2#,39199211-200007

57148PLATE, FRONT SIDE MEMBER, REAR LH

main57148-28010iCR27,KR2#,YR2#,39199201-199211

main57148-28030iCR27,KR2#,YR2#,39199211-200007

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-87008iYR22,39..ATM199201-199610

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-87001iCR27,KR2#,YR2#,39199201-200007

57218AGUSSET, FRONT SIDE MEMBER, NO.1 LH

main57218-87001iCR27,KR2#,YR2#,39199201-200007

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-28020iCR27,KR2#,YR2#,39199201-200007

57229AGUSSET, FRONT SIDE MEMBER, NO.2 LH

main57229-28010iCR27,KR2#,YR2#,39199201-200007

57311OUTRIGGER, NO.1 RH

main57301-28010iKR28,YR21199201-200007

W(REAR HEATER)

main57301-28040iKR27,YR39..5D;CR27,KR2#,YR21..LHD..4D199201-200007

main57301-28050iCR27,KR27,YR22,39..RHD..STD..4D199201-199203

main57301-28060iYR22..DX199201-199203

W(REAR HEATER)

main57301-28080iCR27,KR27,YR39..RHD..4D199403-199610

main57301-28090iYR22..DX199203-199403

W(REAR HEATER)

57312OUTRIGGER, NO.1 LH

main57302-28050iKR28,YR21199201-200007

W(REAR HEATER)

main57302-28060iCR27,KR2#,YR21..LHD..4D199203-200007

main57312-28010iCR27,KR2#,YR21..LHD..4D199201-199203

main57312-28050iCR27,YR22,39..RHD;KR27..02S,03S,06S199201-199610

57313OUTRIGGER, NO.2 RH

main57313-87002iCR27,KR27,YR22,39..RHD..4D199201-199610

57314OUTRIGGER, NO.2 LH

main57314-28010iCR27,KR2#,YR21..LHD..4D199201-200007

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-28020iCR27,KR2#,YR2#,39199201-200007

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-28020iCR27,KR2#,YR2#,39199201-200007

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-28020iCR27,KR2#,YR2#,39199201-200007

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-28020iCR27,KR2#,YR2#,39199201-200007

9011908A55

main90119-08A55

9011910746

main90119-10746

9017910076

main90179-10076

9095001065

main90950-01065

9165141025

main91651-41025

9461311001

main94613-11001

37 parts on this diagram · 2 diagrams in section
