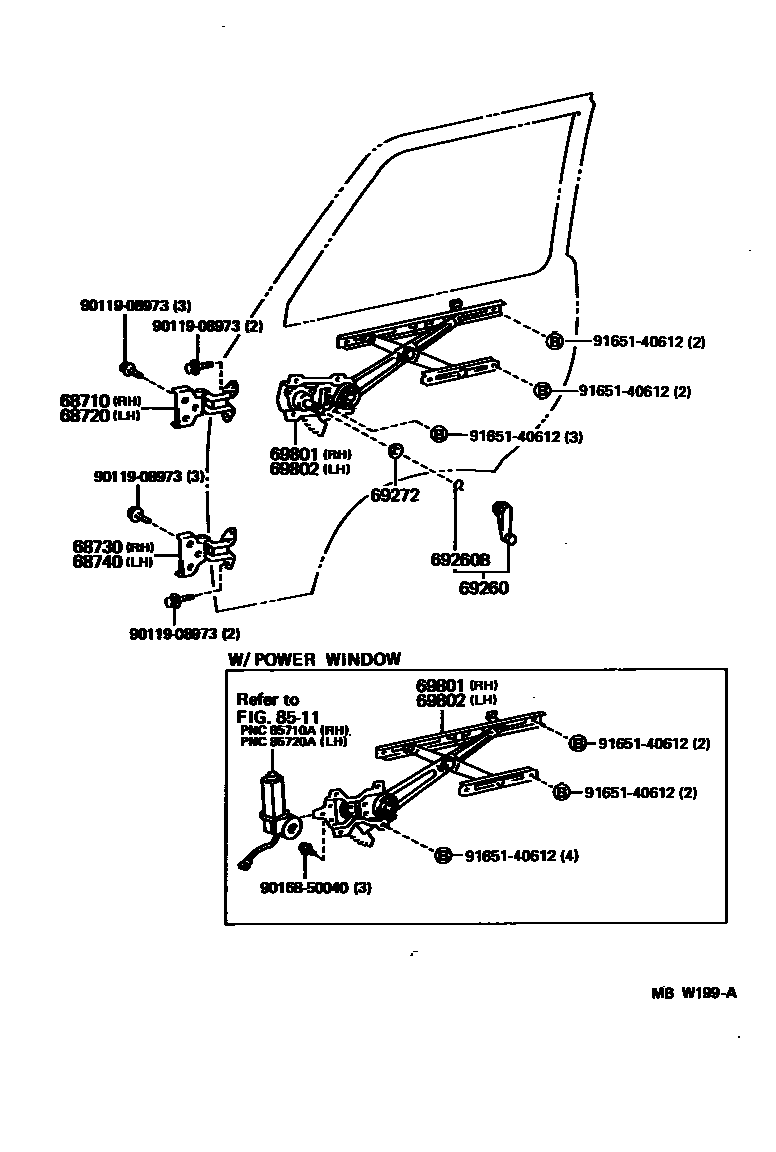

Toyota LITEACE VAN WAGON — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-28020i199201-199309

main68710-28030i199309-200007

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-28020i199201-199309

main68720-28030i199309-200007

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-28020i199201-200007

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-28020i199201-200007

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-08×2i199201-199308

BLUISH GRAY,TRIM1#

main69260-10040-B1×2i199308-200007

BLUISH GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2i199201-200007

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2i199201-200007

NATURAL WHITE,TRIM1#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28010i199309-200007

CHINA SPEC

main69810-28010i199201-199610

main69810-28020i199201-200007

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28010i199309-200007

CHINA SPEC

main69820-28010i199201-199610

main69820-28020i199201-200007

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908973

main90119-08973

9016850040

main90168-50040

9165140612

main91651-40612

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota LITEACE VAN WAGON

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota LITEACE VAN WAGON. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
