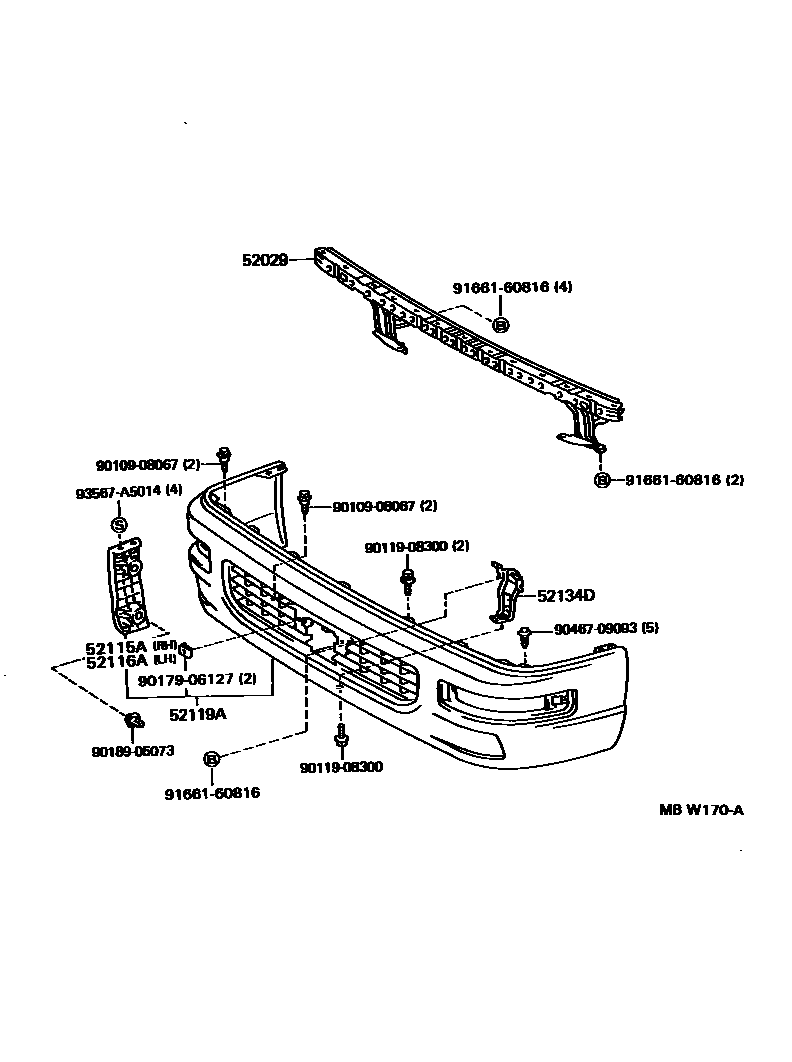

Toyota LITEACE VAN WAGON — FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52134DREINFORCEMENT, FRONT BUMPER STAY
9010908067
main90109-08067
9011908300
main90119-08300
9017906127
main90179-06127
9018905073
main90189-05073
9046709093
main90467-09093
9166160816
main91661-60816
93567A5014
main93567-A5014
12 parts on this diagram · 2 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota LITEACE VAN WAGON
This section contains 13 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota LITEACE VAN WAGON. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, REINFORCEMENT, FRONT BUMPER STAY.
