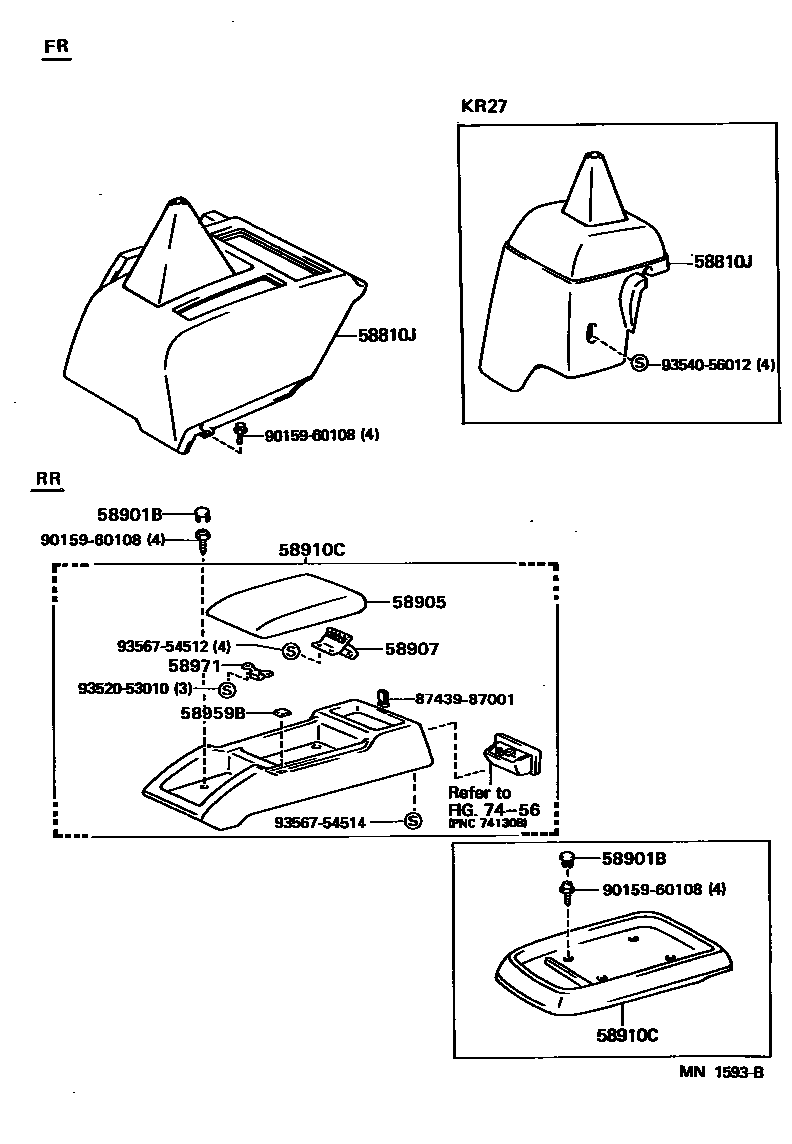

Toyota LITEACE VAN WAGON — CONSOLE BOX & BRACKET

0001 1 0002 1

58810JBOX ASSY, CONSOLE

main58810-28130-B0iCR27,YR22,39..RHD..MTM199201-199610

GRAY,TRIM1#

main58810-28150-B0iYR22,39..ATM199201-199610

GRAY,TRIM1#

main58810-28210-B0iKR27..RHD199201-199610

GRAY,TRIM1#

main58810-28220-B0iCR27,KR2#,YR21..LHD199201-200007

GRAY,TRIM1#

58901BPLUG, HOLE(FOR REAR CONSOLE BOX)

main90950-01541-B0×4iCR27,KR2#,YR2#,39..02S,05S,08S199201-200007

GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-87002-B0iYR22..DX199201-199309

GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-87002iYR22..DX199201-199309

58910CBOX ASSY, CONSOLE, REAR

main58910-87001-B0iYR22..DX199201-199309

GRAY,TRIM1#

sub58910-28010

main58911-28030-B0iCR27,KR2#,YR2#,39..02S,05S,08S199309-200007

GRAY,TRIM1#

main58911-87001-B0iYR22..STD;CR27,KR2#,YR21,39..02S,05S,08S199201-199309

GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iYR22..DX199201-199309

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-87003iYR22..DX199201-199309

7456

8743987001

main87439-87001

9015960108

main90159-60108

9352053010

main93520-53010

9354056012

main93540-56012

9356754512

main93567-54512

9356754514

main93567-54514

14 parts on this diagram · 2 diagrams in section
