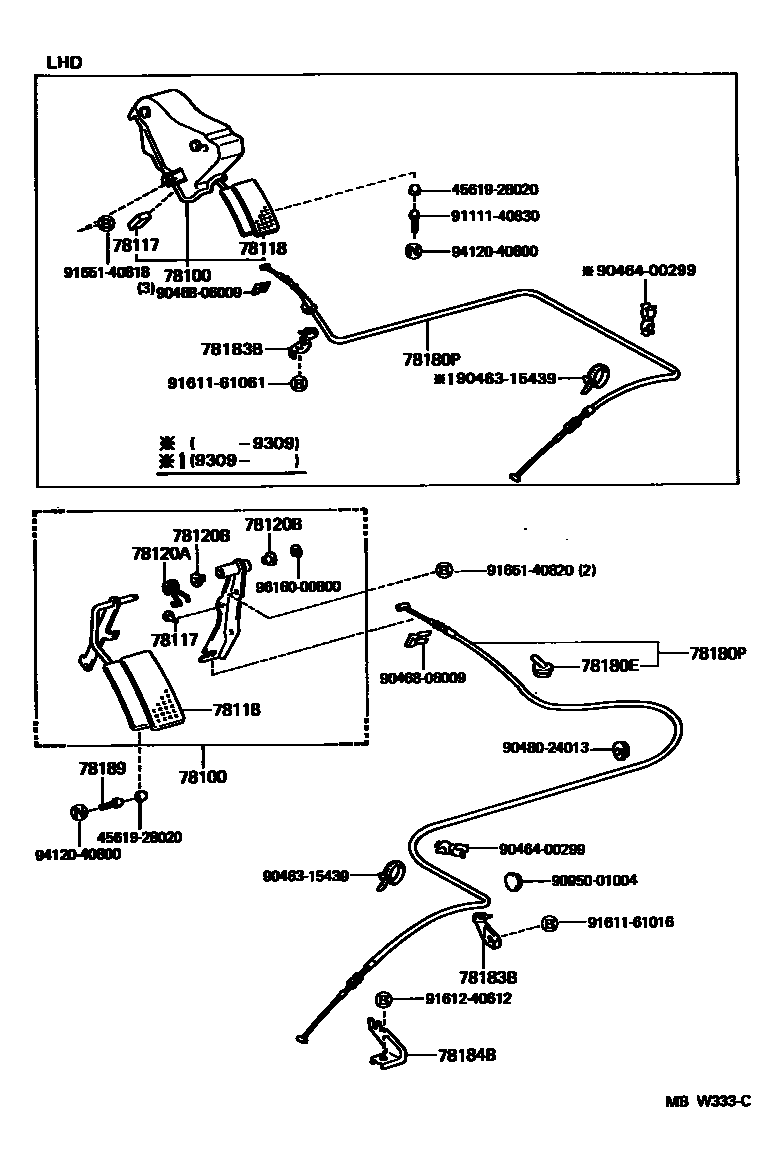

Toyota LITEACE VAN WAGON — ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
78117CUSHION (FOR ACCELERATOR ROD)
78118PAD, ACCELERATOR PEDAL
78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
78120BBUSH (FOR ACCELERATOR LINK ROD)
78180EGROMMET (FOR ACCELERATOR WIRE)
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78189BOLT, ACCELERATOR PEDAL STOPPER
4561928020COVER, KNUCKLE STOPPER
main45619-28020
9046315439
main90463-15439
9046400299
main90464-00299
9046806009
main90468-06009
9048024013
main90480-24013
9095001004
main90950-01004
9111140830
main91111-40830
9161161016
main91611-61016
9161161061
main91611-61061
9161240612
main91612-40612
9165140818
main91651-40818
9165140820
main91651-40820
9412040800
main94120-40800
9616000800
main96160-00800
24 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota LITEACE VAN WAGON
This section contains 39 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LITEACE VAN WAGON. Key components include: LINK ASSY, ACCELERATOR, CUSHION (FOR ACCELERATOR ROD), PAD, ACCELERATOR PEDAL, SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD), BUSH (FOR ACCELERATOR LINK ROD).
