Toyota LITEACE VAN,WAGON — TOOL BOX & LICENSE PLATE BRACKET

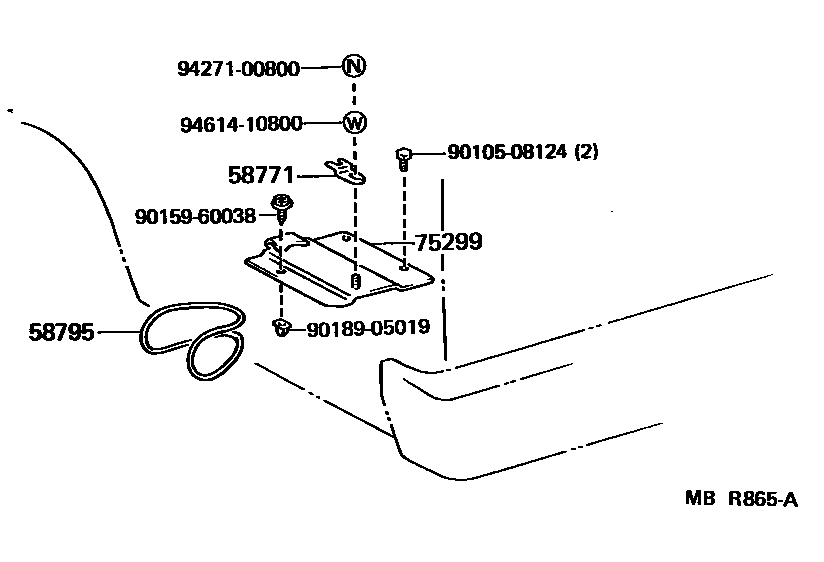

Parts diagram

58771CLAMP, JACK, NO.1

main75298-95700i198808-199201

58795BAND, JACK CLAMP, NO.1

main58795-20011i198808-199201

75299BASE, JACK HOLDER

main75299-27010i198912-199201

main75299-95700i198808-198912

9010508124

main90105-08124

9015960038

main90159-60038

9018905019

main90189-05019

9427100800

main94271-00800

9461410800

main94614-10800

8 parts on this diagram · 1 diagram in section

TOOL BOX & LICENSE PLATE BRACKET for Toyota LITEACE VAN,WAGON

This section contains 8 genuine Toyota parts for the TOOL BOX & LICENSE PLATE BRACKET system of the Toyota LITEACE VAN,WAGON. Key components include: CLAMP, JACK, NO.1, BAND, JACK CLAMP, NO.1, BASE, JACK HOLDER.
