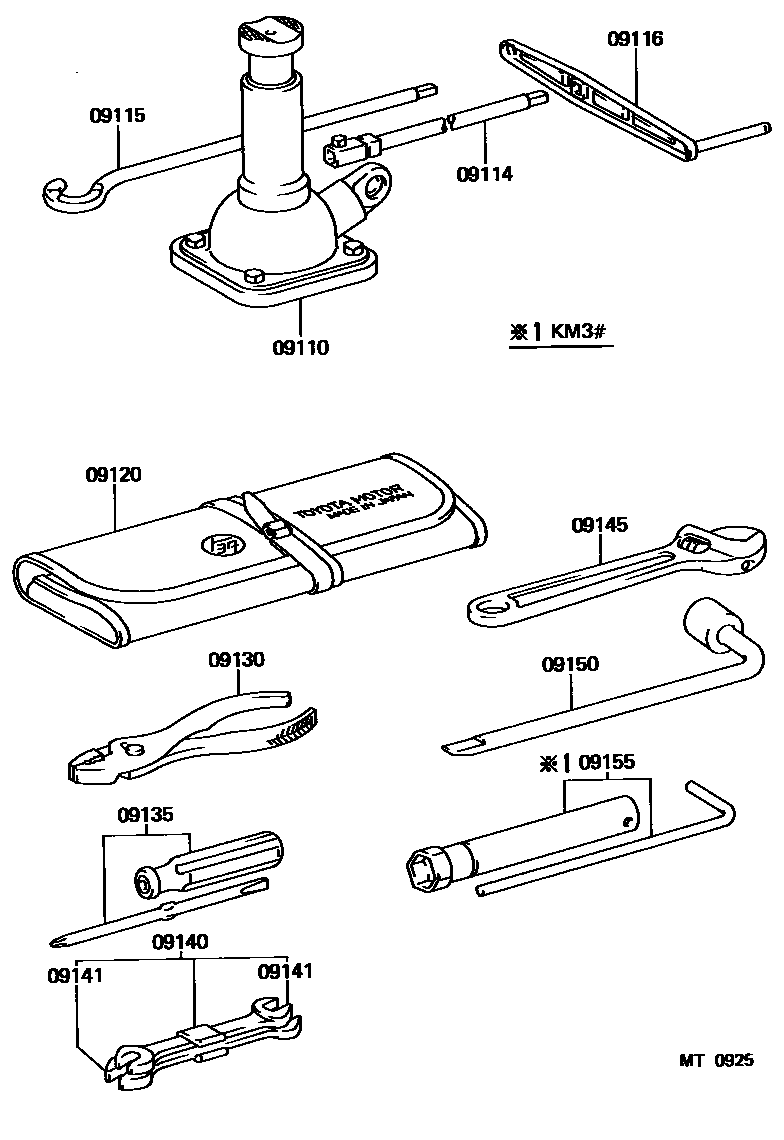

Toyota LITEACE VAN,WAGON — STANDARD TOOL

09110JACK ASSY

main09111-27050i198510-198808

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60040i198510-198603

main09114-60050i198603-198808

09115ROD SUB-ASSY, JACK HANDLE

main09115-60030i198510-198808

09116LEVER, JACK HANDLE

main09116-35040i198510-198808

09120BAG, TOOL

main09120-26021i198510-198808

09130PLIERS

main99913-11500i198510-198808

09135DRIVER, SCREW

main99915-10700i198510-198808

09140SPANNER SET

main09140-27010i198510-198608

09141SPANNER

main99914-10810i198608-198808

8 X 10,8X10

main99914-11012i198510-198608

10 X 12,10X12

main99914-11214i198608-198808

12 X 14,12X14

main99914-11417i198510-198608

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200i198510-198605

main99911-11200i198605-198608

09150WRENCH, HUB NUT BOX

main09150-35020i198510-198808

09155WRENCH, SPARK PLUG

main09155-44010i198510-198808

12 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota LITEACE VAN,WAGON

This section contains 12 genuine Toyota parts for the STANDARD TOOL system of the Toyota LITEACE VAN,WAGON. Key components include: JACK ASSY, EXTENSION SUB-ASSY, JACK HANDLE, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
