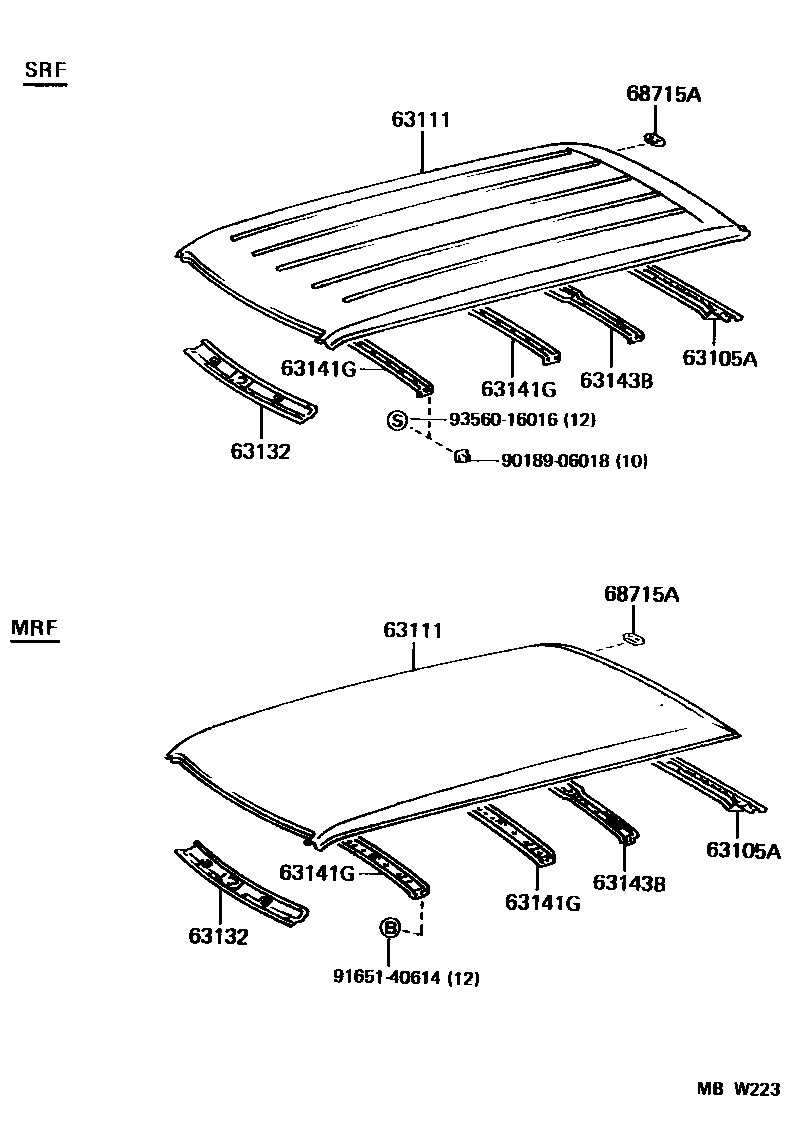

Toyota LITEACE VAN,WAGON — ROOF PANEL & BACK PANEL

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-87011iCR2#,KR2#,YR2#199201-199501

63111PANEL, ROOF

main63111-87017iCR2#,KR2#,YR2#..MRF199201-199501

main63111-87020iKR27..5D199201-199405

63132PANEL, WINDSHIELD HEADER, INNER

main63132-28030iCR2#,KR2#,YR2#199201-199501

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-87008×2iKR27..5D199201-199405

main63141-87009×2iCR2#,KR2#,YR2#..MRF199201-199501

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-87002iKR27..5D199201-199405

main63143-87003iCR2#,KR2#,YR2#..MRF199201-199501

68715APLATE, DOOR HINGE, UPPER

main68715-28010×2iCR2#,KR2#,YR2#199201-199501

9018906018

main90189-06018

9165140614

main91651-40614

9356016016

main93560-16016

9 parts on this diagram · 1 diagram in section
