Toyota LITEACE VAN,WAGON — MOUNTING

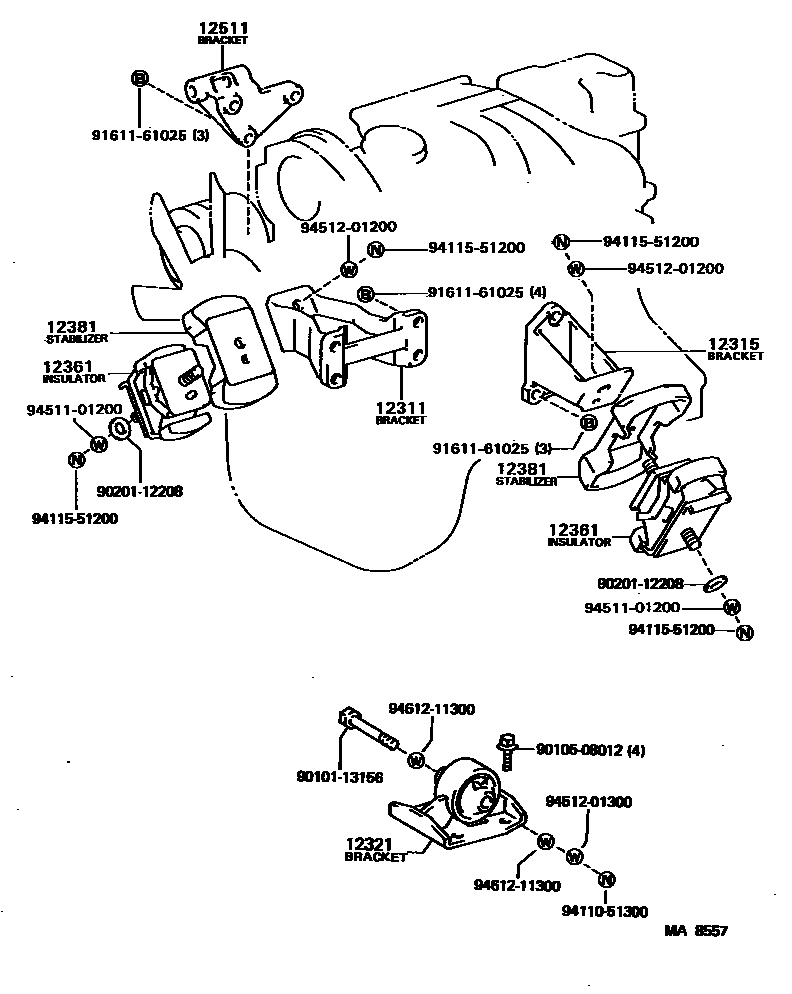

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13090i198510-198808

main12311-64060i198510-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13091i198510-198808

main12315-64020i198510-198808

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-64040i198510-198808

main12303-72010i198510-198808

main12321-13040i198510-198808

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-64022×2i198510-198808

12381STABILIZER, ENGINE MOUNTING

main12381-64010×2i198510-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-22016i198510-198808

ALTERNATOR 30A

main12511-24011i198510-198808

W/*DEF

main12511-64030i198510-198808

9010113156

main90101-13156

9010508012

main90105-08012

9020112208

main90201-12208

9161161025

main91611-61025

9411051300

main94110-51300

9411551200

main94115-51200

9451101200

main94511-01200

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

16 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota LITEACE VAN,WAGON

This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota LITEACE VAN,WAGON. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, REAR NO.2, INSULATOR, ENGINE MOUNTING, FRONT.
