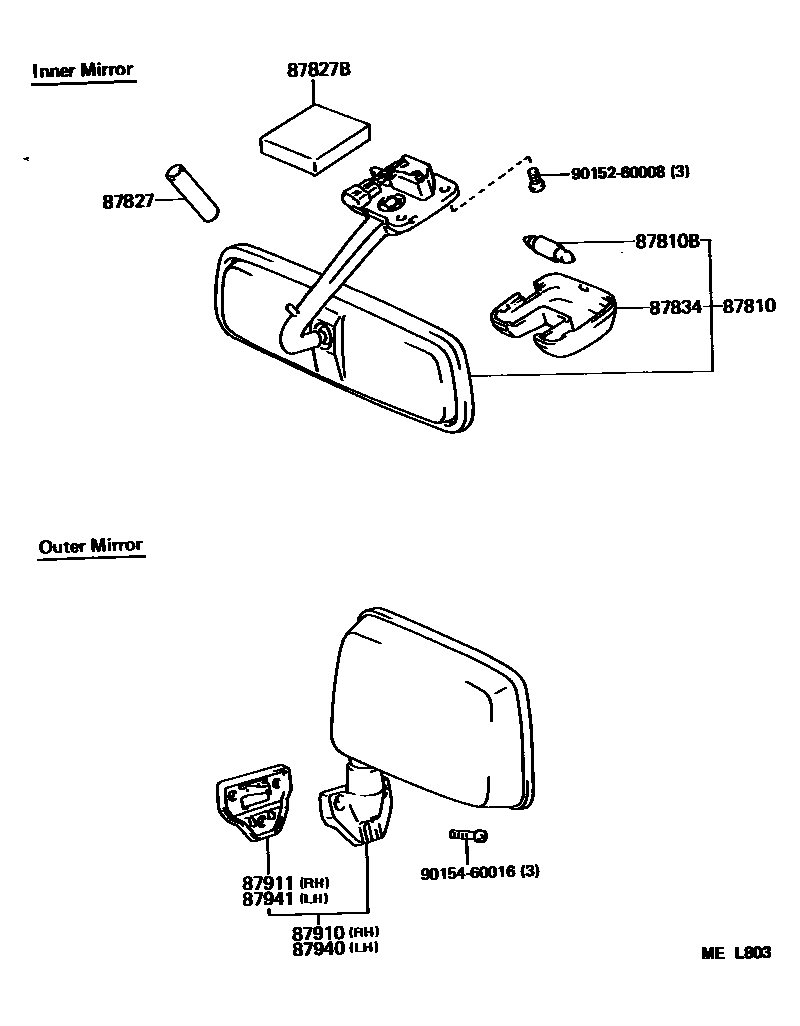

Toyota LITEACE VAN,WAGON — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95709i198808-199201

main87810-95J06i198808-199201

NON-GLARE TYPE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027i198808-199201

12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020i198808-199201

L=35

main87828-23010i198808-199201

L=38.5

87827BPAD, INNER REAR VIEW MIRROR

main87827-95700i198808-199201

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701i198808-199201

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95721i198808-199201

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87959-95701i198808-199201

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-95726i198808-199201

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87959-95701i198808-199201

9015260008

main90152-60008

9015460016

main90154-60016

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota LITEACE VAN,WAGON

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota LITEACE VAN,WAGON. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, PAD, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
