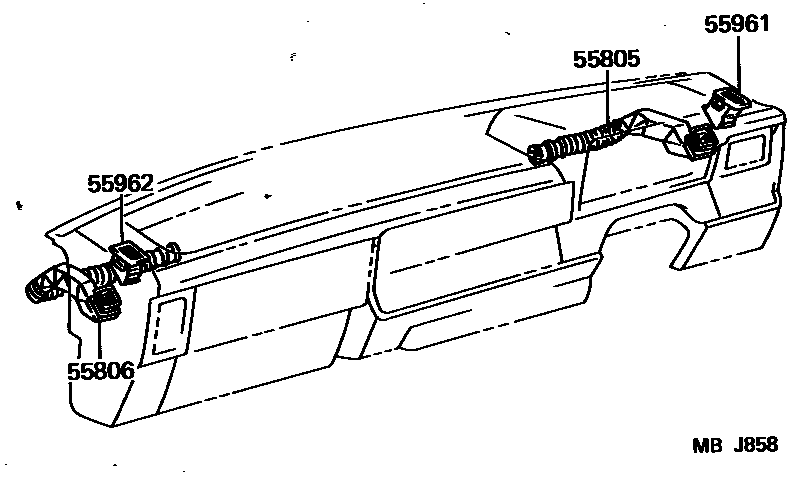

Toyota LITEACE VAN,WAGON — FRONT VENTILATOR

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55971-95700iCM35,KM3#198510-198808

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55972-95700iCM35,KM3#198510-198808

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-95701-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55961-95701-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-95701-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55962-95701-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

4 parts on this diagram · 1 diagram in section
