Toyota LITEACE VAN,WAGON — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

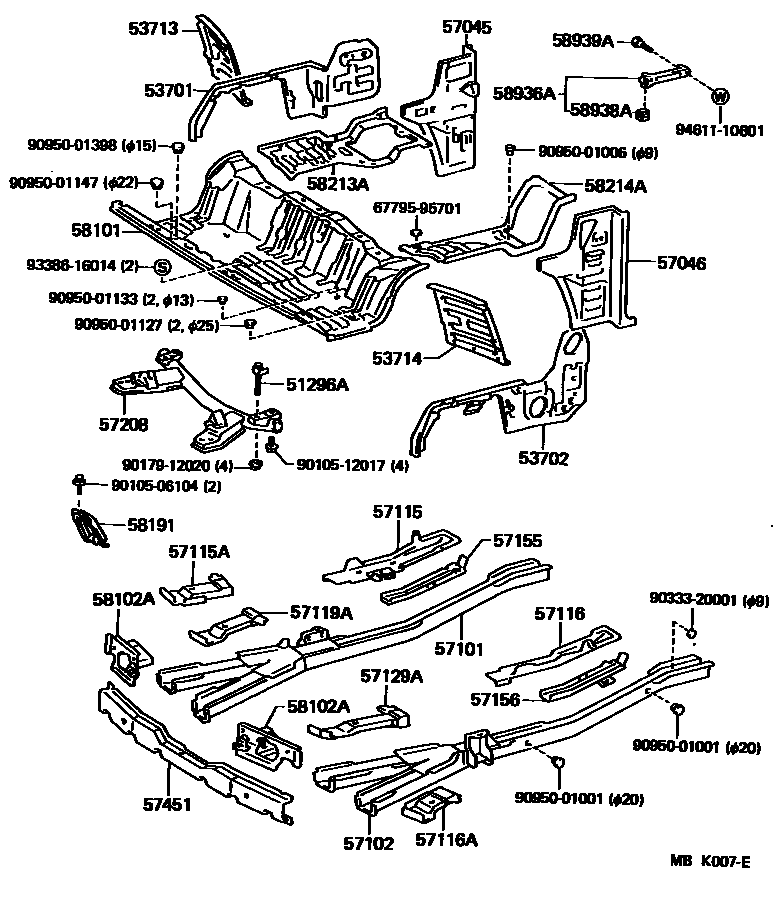

Parts diagram

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-95701×4i198510-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95712i198510-198808

main53701-95713i198510-198808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95713i198510-198808

main53702-95714i198510-198808

53713APRON, FENDER SIDE, RH

main53707-95701i198510-198808

53714APRON, FENDER SIDE, LH

main53708-95704i198510-198808

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-95705i198510-198808

main57045-95707i198510-198808

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-95705i198510-198808

main57046-95707i198510-198808

main57046-95709i198510-198808

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-95712i198510-198608

main57101-95714i198510-198608

main57101-95715i198510-198808

FR BRAKE=DUAL PISTON TYPE

main57101-95719i198608-198808

main57101-95721i198608-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-95708i198510-198608

main57102-95709i198510-198608

main57102-95710i198510-198808

FR BRAKE=DUAL PISTON TYPE

main57102-95714i198608-198808

main57102-95715i198608-198808

57115PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER RH

main57105-95704i198510-198808

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-95703i198510-198808

57116PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER LH

main57148-95702i198510-198808

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-95703i198510-198808

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-95702i198510-198808

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-95702i198510-198808

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-95701i198510-198808

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57044-95703i198510-198808

57208MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51021-95700i198510-198708

main51021-95701i198510-198708

main51021-95703i198510-198708

main51021-95706i198708-198808

main51021-95708i198708-198808

main51021-95711i198708-198808

57451MEMBER, FRONT FLOOR CROSS

main57408-95705i198510-198808

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95744i198510-198808

main58101-95748i198510-198808

main58101-95750i198510-198808

main58101-95756i198510-198808

FINLAND SPEC

main58101-95757i198510-198808

FINLAND SPEC

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-95700i198510-198808

RH

main58103-95704i198510-198808

LH

58191FOOTREST, FRONT FLOOR

main58192-95700i198610-198808

58213APANEL, SEAT FLOOR, RH

main58201-95718i198510-198808

58214APANEL, SEAT FLOOR, LH

main58214-95708i198510-198808

main58214-95709i198510-198808

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58402-95714-04i198510-198808

BLUE,BLUE,TRIM8#

main58402-95714-06i198510-198808

BROWN,BROWN,TRIM4#

58938ACUSHION, ENGINE SERVICE HOLE COVER BAND

main58938-87001i198510-198808

58939ASCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58939-95J00i198510-198808

6779595701BUMPER, FRONT DOOR SWITCH

main67795-95701

9010506104

main90105-06104

9010512017

main90105-12017

9017912020

main90179-12020

9033320001

main90333-20001

9095001001

main90950-01001

9095001006

main90950-01006

9095001127

main90950-01127

9095001133

main90950-01133

9095001147

main90950-01147

9095001398

main90950-01398

9338616014

main93386-16014

9461110601

main94611-10601

40 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LITEACE VAN,WAGON

This section contains 71 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LITEACE VAN,WAGON. Key components include: BOLT, ENGINE FRONT SUPPORT MEMBER, APRON SUB-ASSY, FRONT FENDER, RH, APRON SUB-ASSY, FRONT FENDER, LH, APRON, FENDER SIDE, RH, APRON, FENDER SIDE, LH.
