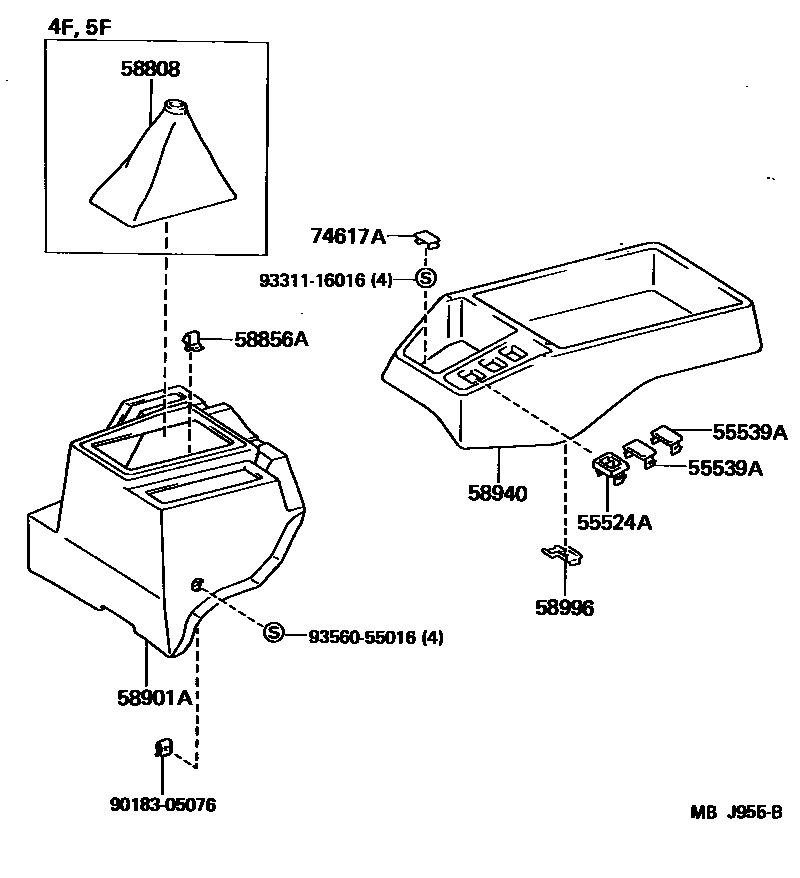

Toyota LITEACE VAN,WAGON — CONSOLE BOX & BRACKET

55524ACOVER, SWITCH BASE HOLE

main55539-20020-04iKM30..DLX198610-198808

BLUE,DEEP BLUE,TRIM8#

main55539-20020-14iKM30..DLX198510-198610

BLUE,BLUE,TRIM8#

main55539-20020-16iCM35,KM3#..4F,5F198510-198808

BROWN,BROWN,TRIM4#

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-06×2iCM35,KM3#..4F,5F198510-198808

BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-24×2iKM30..DLX198610-198808

BLUE,DEEP BLUE,TRIM8#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-34×2iKM30..DLX198510-198610

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-14030

sub55539-20030

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-95701-01iCM35,KM3#..4F,5F198510-198808

BLACK,BLACK

58856AHOLDER, CONSOLE BOX

main58856-95700×2iCM35,KM3#..4F,5F198510-198808

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-95707-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

main58901-95708-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main58901-95708-06iKM30198510-198808

BROWN,BROWN,TRIM4#

main58901-95709-06iCM35,KM31,36..LHD..(4F,5F)198510-198808

BROWN,BROWN,TRIM4#

58940CONSOLE ASSY, REAR

main58810-95702-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

main58810-95703-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main58810-95703-06iCM35,KM3#..LHD..(4F,5F)198510-198808

BROWN,BROWN,TRIM4#

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95703iCM35,KM3#..4F,5F198510-198808

74617APLUG, ASSIST GRIP

main74617-16010-06×4iCM35,KM3#..4F,5F198510-198808

BROWN,BROWN,TRIM4#

main74617-16010-34×4iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

9018305076

main90183-05076

9331116016

main93311-16016

9356055016

main93560-55016

11 parts on this diagram · 1 diagram in section
