E
EPC Data

Toyota LITEACE VAN,WAGON — ARMREST & VISOR

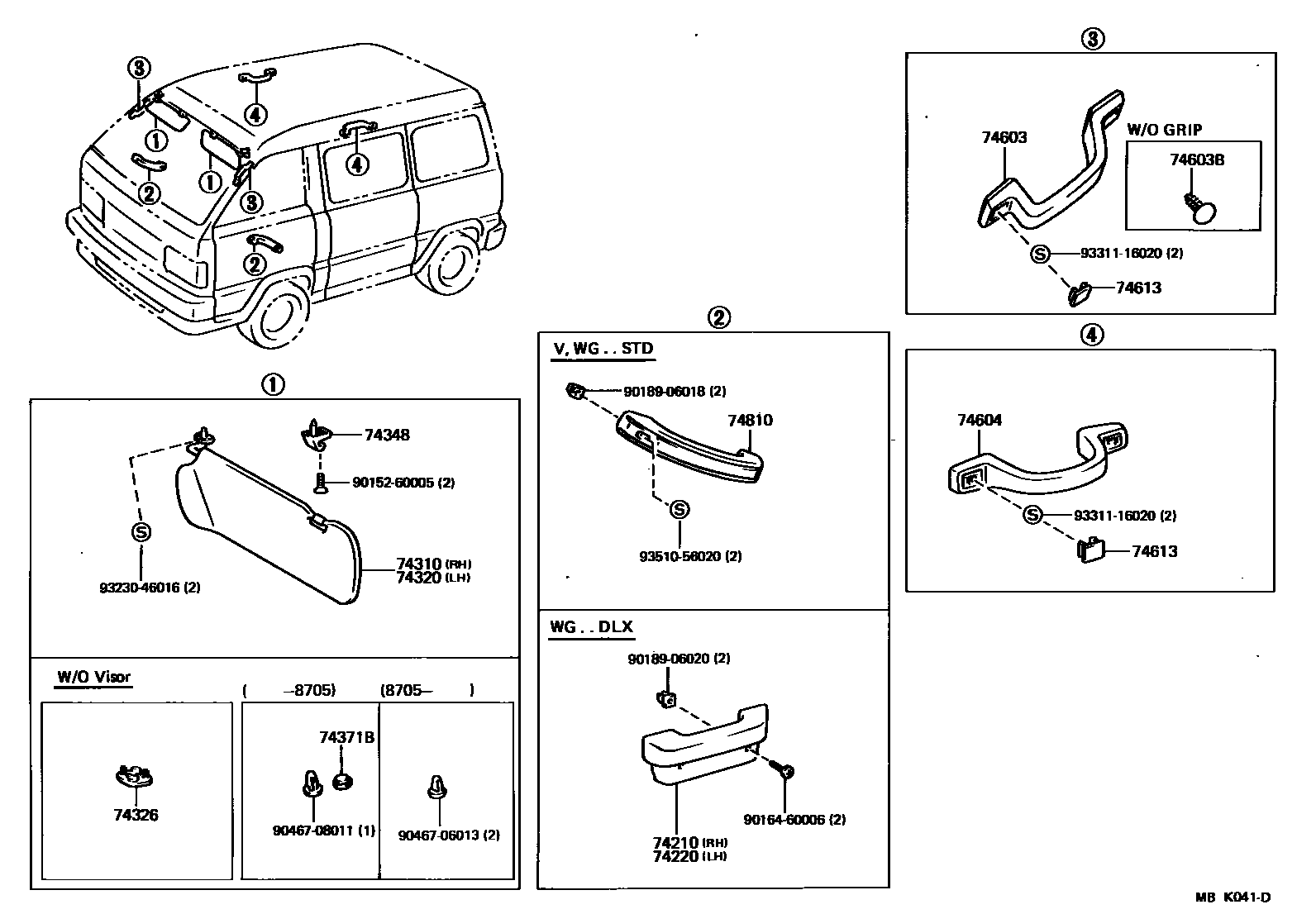

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-12110-14i198510-198808
BLUE,BLUE,TRIM8#
main74210-12110-16i198510-198808
BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-12110-14i198510-198808
BLUE,BLUE,TRIM8#
main74210-12110-16i198510-198808
BROWN,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-95718-08i198510-198808
IVORY,IVORY
main74310-95720-08i198601-198808
*FRG,IVORY,IVORY
main74310-95724-03i198510-198808
GRAY,GRAY,TRIM8#
main74310-95724-05i198510-198808
BEIGE,BEIGE,TRIM4#
main74310-95726-03i198510-198808
*FRG,GRAY,GRAY,TRIM8#
main74310-95726-05i198510-198808
*FRG,BEIGE,BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-95709-08i198510-198808
IVORY,IVORY
main74320-95711-08i198601-198808
*FRG,IVORY,IVORY
main74320-95713-03i198510-198808
GRAY,GRAY,TRIM8#
main74320-95713-05i198510-198808
BEIGE,BEIGE,TRIM4#
main74320-95715-03i198510-198808
*FRG,GRAY,GRAY,TRIM8#
main74320-95715-05i198510-198808
*FRG,BEIGE,BEIGE,TRIM4#
74326COVER, VISOR HOLE
main74325-95J00-03i198510-198808
GRAY,GRAY,TRIM8#
74348HOLDER, VISOR
main74348-32010-03×2i198510-198808
GRAY,LIGHT GRAY,TRIM8#
main74348-32010-05×2i198510-198808
BEIGE,BEIGE,TRIM4#
74371BPLUG, HOLE (FOR VISOR HANGER)
main90950-01314i198510-198808
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-95702-03×2i198510-198808
GRAY,GRAY,TRIM8#
main74603-95702-05i198510-198808
BEIGE,BEIGE,TRIM4#
74603BCLIP (FOR ASSIST GRIP)
main90467-05020-03i198510-198808
BEIGE,SHADOW GRAY,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-16010-23×2i198510-198808
*FRG,GRAY,GRAY,TRIM8#
main74603-16010-35×2i198510-198808
*FRG,BEIGE,BEIGE,TRIM4#
main74610-12030-06×2i198510-198808
BROWN,BROWN,TRIM4#
main74610-12030-23×2i198510-198808
GRAY,GRAY,TRIM8#
74613PLUG, ASSIST GRIP
main74617-16010-15×8i198510-198808
BEIGE,BEIGE,TRIM4#
main74617-16010-23×8i198510-198808
GRAY,GRAY,TRIM8#
74810PULL ASSY, DOOR, INSIDE
main69285-95700-16×2i198510-198808
BROWN,BROWN,TRIM4#
9015260005
main90152-60005
9016460006
main90164-60006
9018906018
main90189-06018
9018906020
main90189-06020
9046706013
main90467-06013
9046708011
main90467-08011
9323046016
main93230-46016
9331116020
main93311-16020
9351056020
main93510-56020

21 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota LITEACE VAN,WAGON

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LITEACE VAN,WAGON. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, VISOR ASSY, RH, VISOR ASSY, LH, COVER, VISOR HOLE.
