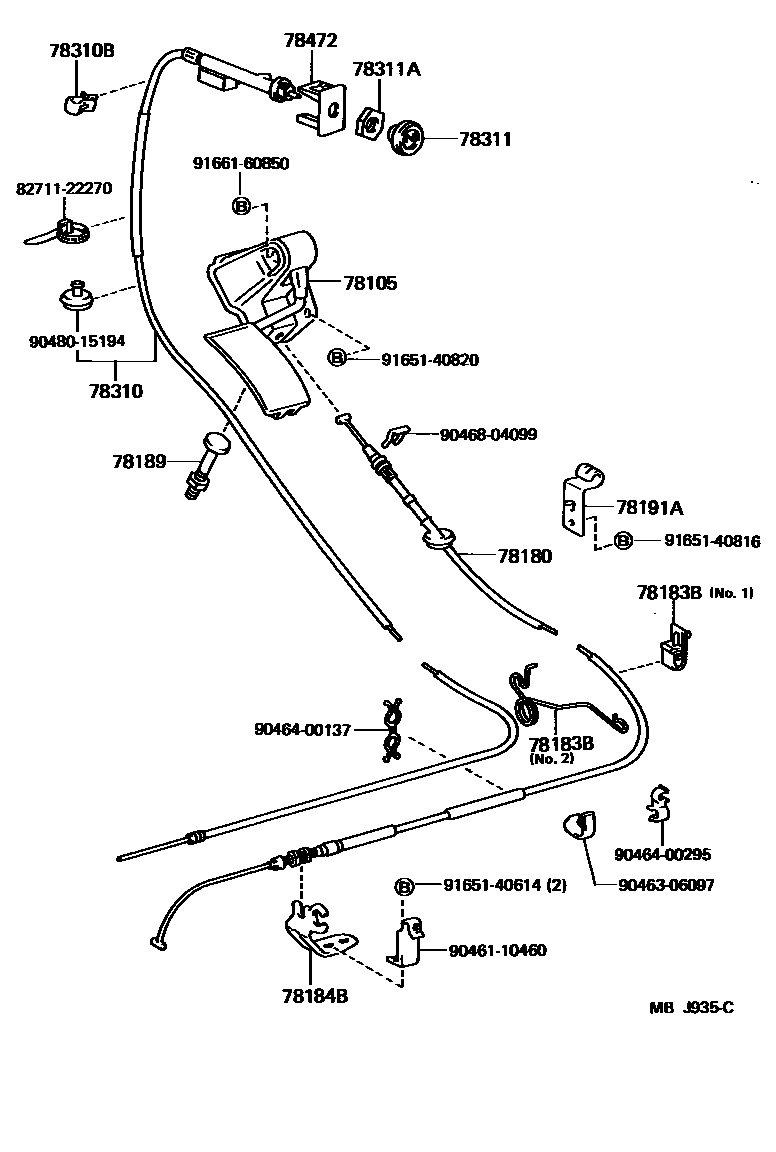

Toyota LITEACE VAN,WAGON — ACCELERATOR LINK
78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78180WIRE ASSY, ACCELERATOR
78183BCLAMP, ACCELERATOR CONTROL CABLE
NO.1
NO.2
78184BBRACKET, ACCELERATOR CONTROL CABLE
78189BOLT, ACCELERATOR PEDAL STOPPER
78191ACLAMP (FOR ACCELERATOR WIRE SET)
78310CABLE ASSY, CHOKE
78310BCLAMP, CHOKE CABLE
78311KNOB, CHOKE CONTROL CABLE
78311ANUT, CHOKE SHAFT SET
78472SUPPORT, THROTTLE CONTROL CABLE
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
9046110460
main90461-10460
9046306097
main90463-06097
9046400137
main90464-00137
9046400295
main90464-00295
9046804099
main90468-04099
9048015194
main90480-15194
9165140614
main91651-40614
9165140816
main91651-40816
9165140820
main91651-40820
9166160850
main91661-60850
22 parts on this diagram · 4 diagrams in section
ACCELERATOR LINK for Toyota LITEACE VAN,WAGON
This section contains 31 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LITEACE VAN,WAGON. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, WIRE ASSY, ACCELERATOR, CLAMP, ACCELERATOR CONTROL CABLE, BRACKET, ACCELERATOR CONTROL CABLE, BOLT, ACCELERATOR PEDAL STOPPER.
