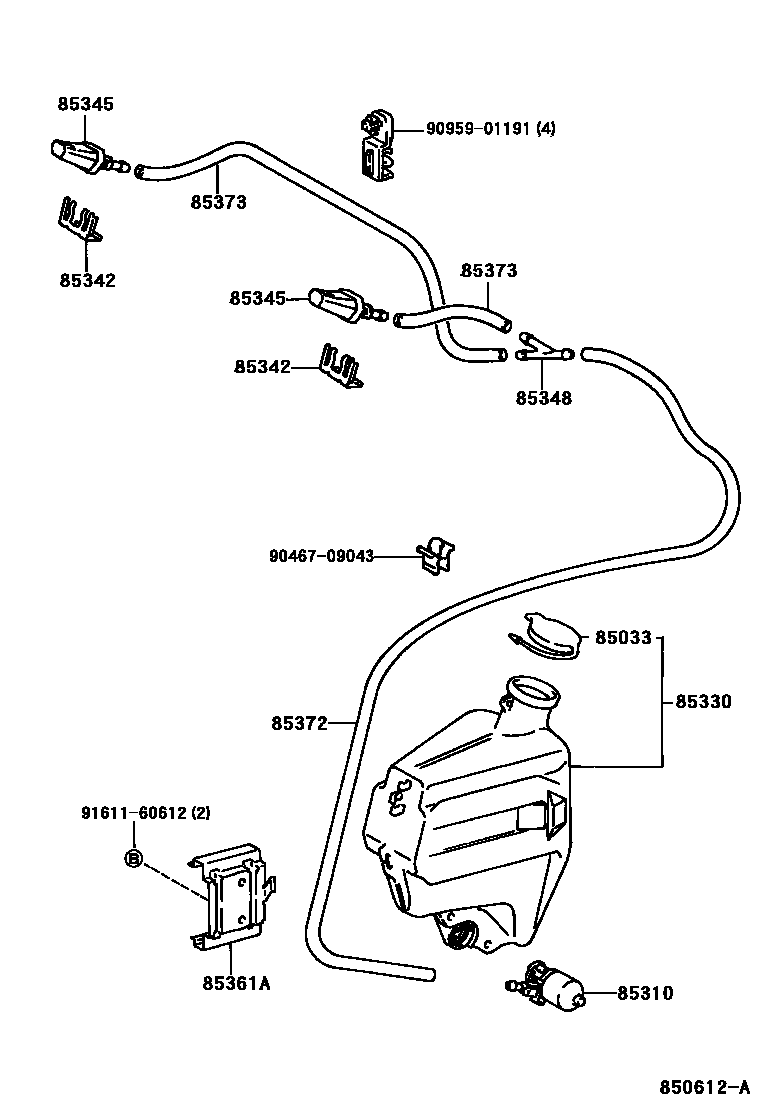

Toyota LITE/TOWNACE — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i200208-200408

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i200208-200408

main85310-95700i199906-200208

85330JAR ASSY, WINDSHIELD WASHER

main85315-27010i200208

main85330-95700i199906-200208

85342HOLDER, WASHER NOZZLE

main85342-95J01×2i199906-200208

85345NOZZLE, WINDSHIELD WASHER

main85035-95714×2i199906-200208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i199906-199909

main85349-89122i199909-200208

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-95A02i199906-200208

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200208

main90099-33299i199909-200208

main90446-06013i199906-199909

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2i199909-200208

main90446-06013i199906-199909

9046709043

main90467-09043

9095901191

main90959-01191

9161160612

main91611-60612

12 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota LITE/TOWNACE

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LITE/TOWNACE. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, HOLDER, WASHER NOZZLE, NOZZLE, WINDSHIELD WASHER.
