Toyota LITE/TOWNACE — REAR FOG LAMP

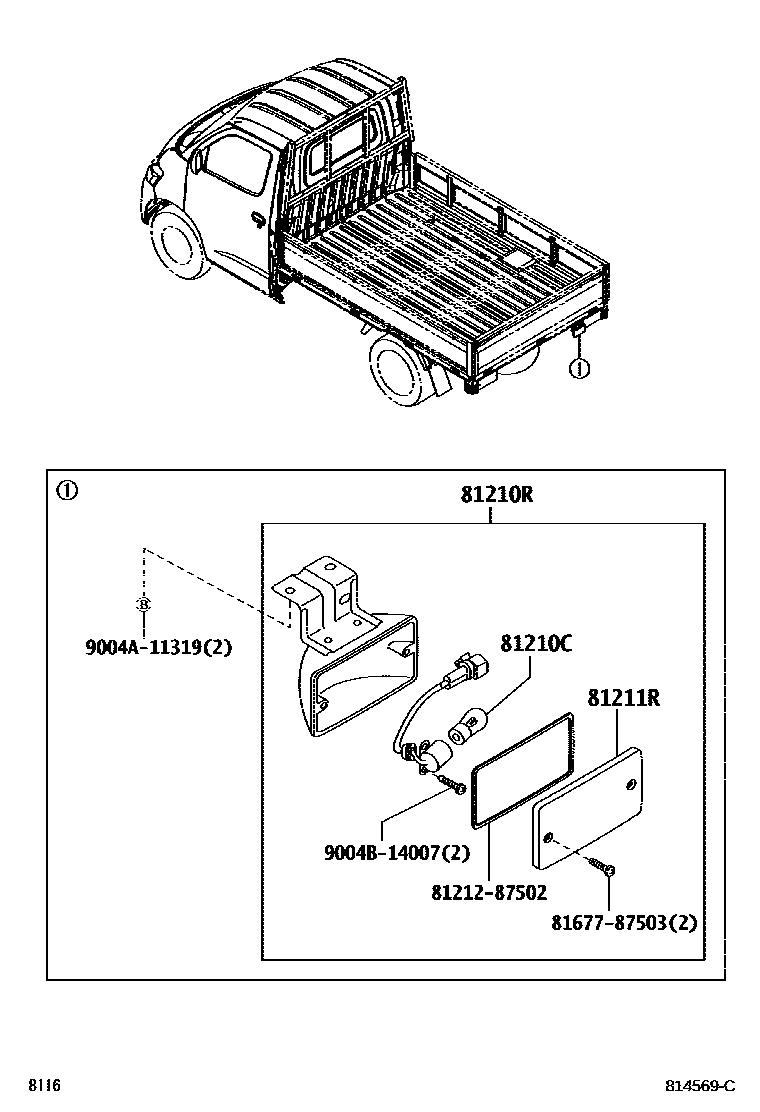

Parts diagram

81210CBULB, REAR FOG LAMP

main9004B-81015i202007

81210RLAMP ASSY, REAR FOG

main81480-BZ010i201006-202007

main81480-BZ020i201006-201903

main81480-BZ021i201903-202007

81211RLENS, REAR FOG LAMP

main81211-87503i201006-202007

main81211-BZ040i201006-202007

8121287502GASKET, FOG LAMP LENS

main81212-87502

8167787503REFLECTOR, BACK-UP LAMP

main81677-87503

9004A11319

main9004A-11319

9004B14007

main9004B-14007

7 parts on this diagram · 3 diagrams in section

REAR FOG LAMP for Toyota LITE/TOWNACE

This section contains 14 genuine Toyota parts for the REAR FOG LAMP system of the Toyota LITE/TOWNACE. Key components include: BULB, REAR FOG LAMP, LAMP ASSY, REAR FOG, LENS, REAR FOG LAMP, RIM, REAR FOG LAMP, RH, NO.1, SOCKET & WIRE, REAR LAMP.
