Toyota LITE/TOWNACE — METER

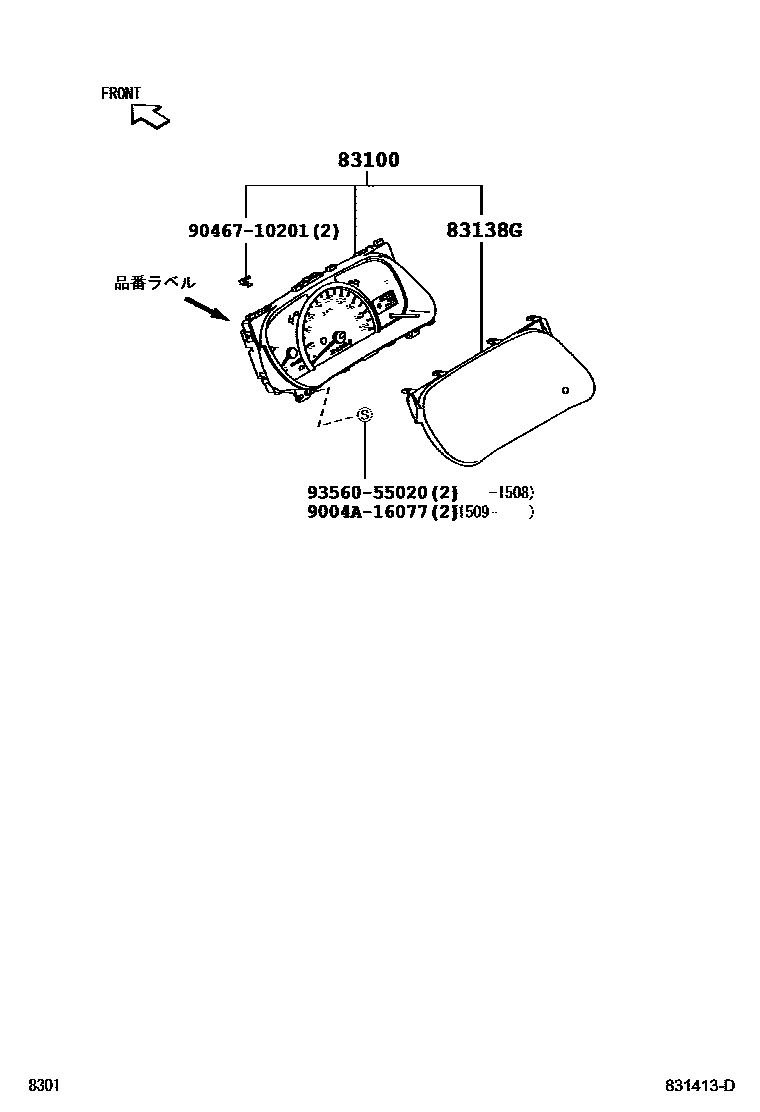

Parts diagram

83100METER ASSY, COMBINATION

main83800-BYK40i202007-202103

main83800-BYK41i202104-202503

main83800-BYK50i202007-202103

main83800-BYK51i202104-202503

main83800-BYK60i202007-202103

main83800-BYK61i202104-202503

main83800-BYK70i202007-202103

main83800-BYK71i202104-202503

main83800-BZQ10i201006-201510

main83800-BZQ11i201511-201612

main83800-BZQ12i201612-201805

main83800-BZQ13i201805-202007

main83800-BZQ20i201006-201510

main83800-BZQ21i201511-201612

main83800-BZQ22i201612-201805

main83800-BZQ23i201805-202007

main83800-BZ850supersedes 83800-BZ840i200801-201510

main83800-BZ851supersedes 83800-BZ841i201511-201612

main83800-BZ852supersedes 83800-BZ842i201612-201805

main83800-BZ853supersedes 83800-BZ843i201805-202007

main83800-BZA20supersedes 83800-BZA10i200801-201510

main83800-BZA21supersedes 83800-BZA11i201511-201612

main83800-BZA22supersedes 83800-BZA12i201612-201805

main83800-BZA23supersedes 83800-BZA13i201805-202007

83138GGLASS, COMBINATION METER

main83852-BZ100i200801-202007

main83852-BZ180i202007-202503

9004A16077

main9004A-16077

9046710201

main90467-10201

9356055020

main93560-55020

5 parts on this diagram · 2 diagrams in section

METER for Toyota LITE/TOWNACE

This section contains 6 genuine Toyota parts for the METER system of the Toyota LITE/TOWNACE. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
