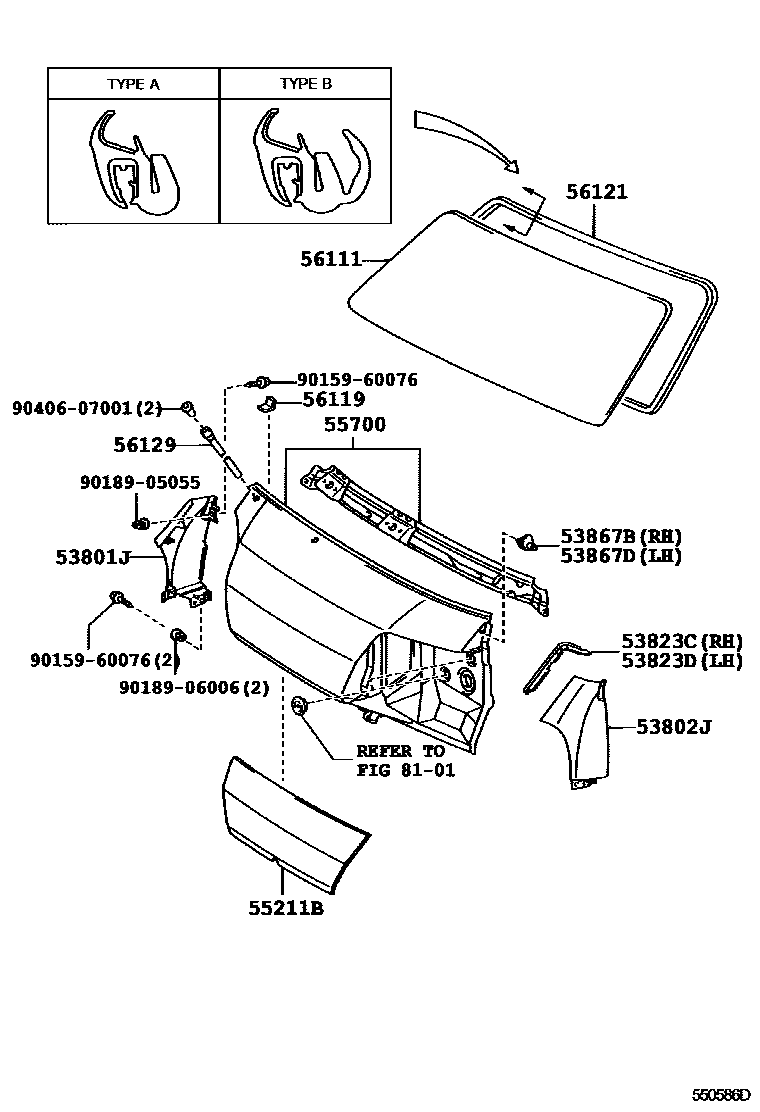

Toyota LITE/TOWNACE — FRONT PANEL & WINDSHIELD GLASS

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53813-27010iKM7#,8#200208

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53814-27010iCM7#,8#,KM7#,8#199906-200208

main53814-27020iKM7#,8#200208-200408

53823CPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-27010iCM7#,8#,KM7#,8#199906-200208

53823DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-27010iCM7#,8#,KM7#,8#199906-200208

53867BRETAINER, FRONT SIDE PANEL

main53867-28020iCM7#,8#,KM7#,8#199906-200208

53867DRETAINER, FRONT SIDE PANEL, LH

main53867-28020iCM7#,8#,KM7#,8#199906-200208

55211BSILENCER, FRONT PANEL

main55211-27010iCM7#,8#,KM7#,8#199906-200208

55700PANEL ASSY, FRONT

main55700-27040iCM7#,8#,KM7#,8#199906-200208

sub55700-27070

sub55110-27010

main55700-27050iKM7#,8#200208-200408

sub90333-20001

main55700-27060iCM7#,8#200208-200408

main55700-27080iKM7#,8#200408

56111GLASS, WINDSHIELD

main56111-27010iCM7#,8#,KM7#,8#..DX199906-200208

main56111-95718iKM70,80..SPX199906-200208

56119SEAL, WINDSHIELD GLASS

main56119-95700×2iCM7#,8#,KM7#,8#199906-200208

56121WEATHERSTRIP, WINDSHIELD

main56121-27010iCM7#,8#,KM7#,8#..DX199906-200205

main56121-27020iCM85..TS;CM7#,80,KM7#,8#199906-200205

main56121-27030iCM7#,8#,KM7#,8#..DX200205-200208

main56121-27040iCM85..TS;CM7#,80,KM7#,8#200205-200208

main56121-27050iCM7#,8#,KM7#,8#200208

56129HOSE, WINDSHIELD DRAIN

main56129-95700×2iCM7#,8#,KM7#,8#199906-200208

8101

9015960076

main90159-60076

9018905055

main90189-05055

9018906006

main90189-06006

9040607001

main90406-07001

17 parts on this diagram · 1 diagram in section
