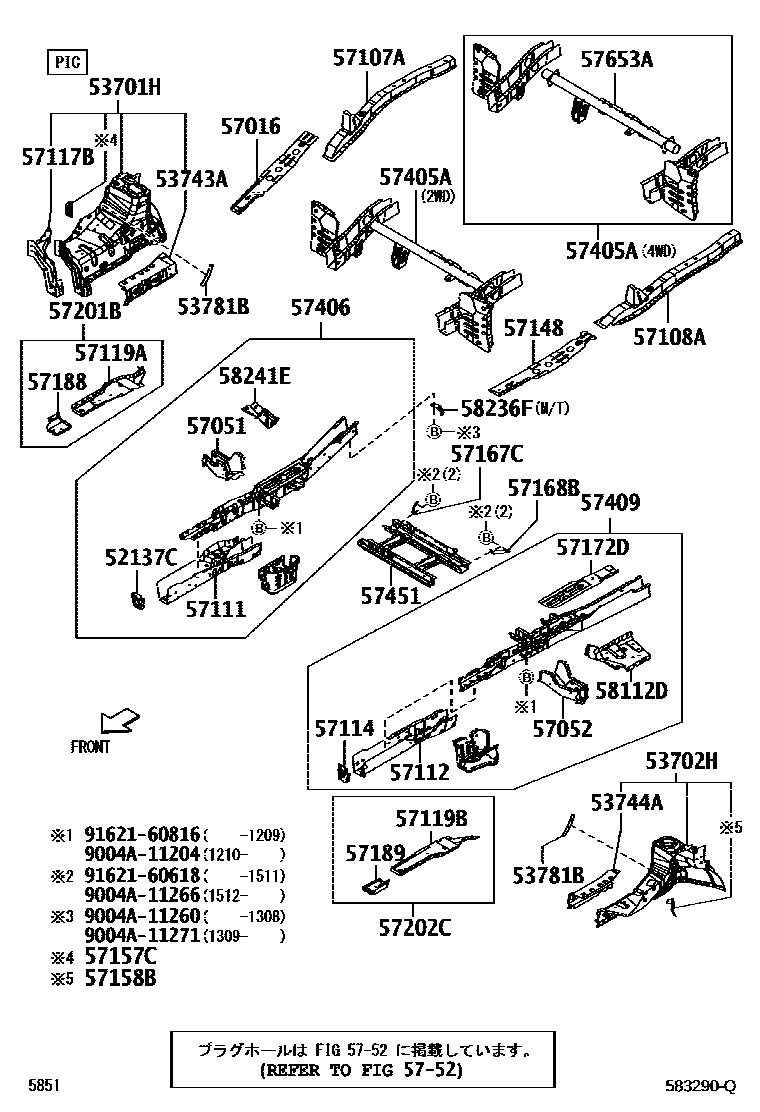

Toyota LITE/TOWNACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
52137CBRACKET, FRONT BUMPER ARM MOUNTING, NO.3
53701HAPRON SUB-ASSY, FRONT FENDER, RH
53702HAPRON SUB-ASSY, FENDER, LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53781BSEAL, FRONT FENDER APRON, LOWER
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57114EXTENSION, FRONT SIDE MEMBER, LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57119APLATE, FRONT SIDE MEMBER, FRONT RH
57119BPLATE, FRONT SIDE MEMBER, FRONT LH
57148PLATE, FRONT SIDE MEMBER, REAR LH
57157CBRACKET, FLEXIBLE HOSE, FRONT RH
57158BBRACKET, FLEXIBLE HOSE, FRONT LH
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH
57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57451MEMBER, FRONT FLOOR CROSS
5752HOLE PLUG
57653AMEMBER, REAR FLOOR CROSS, NO.2
58112DPANEL, FRONT FLOOR, FRONT NO.2
58236FBRACKET, CLUTCH TUBE
58241EPANEL, FLOOR SIDE, FRONT RH
9004A11204
main9004A-11204
9004A11260
main9004A-11260
9004A11266
main9004A-11266
9004A11271
main9004A-11271
9162160618
main91621-60618
9162160816
main91621-60816
42 parts on this diagram · 6 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LITE/TOWNACE
This section contains 83 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LITE/TOWNACE. Key components include: PLATE, STEP, PANEL, STEP, LH, PANEL, STEP, FRONT RH, BRACKET, FRONT BUMPER ARM MOUNTING, NO.3, APRON SUB-ASSY, FRONT FENDER, RH.
