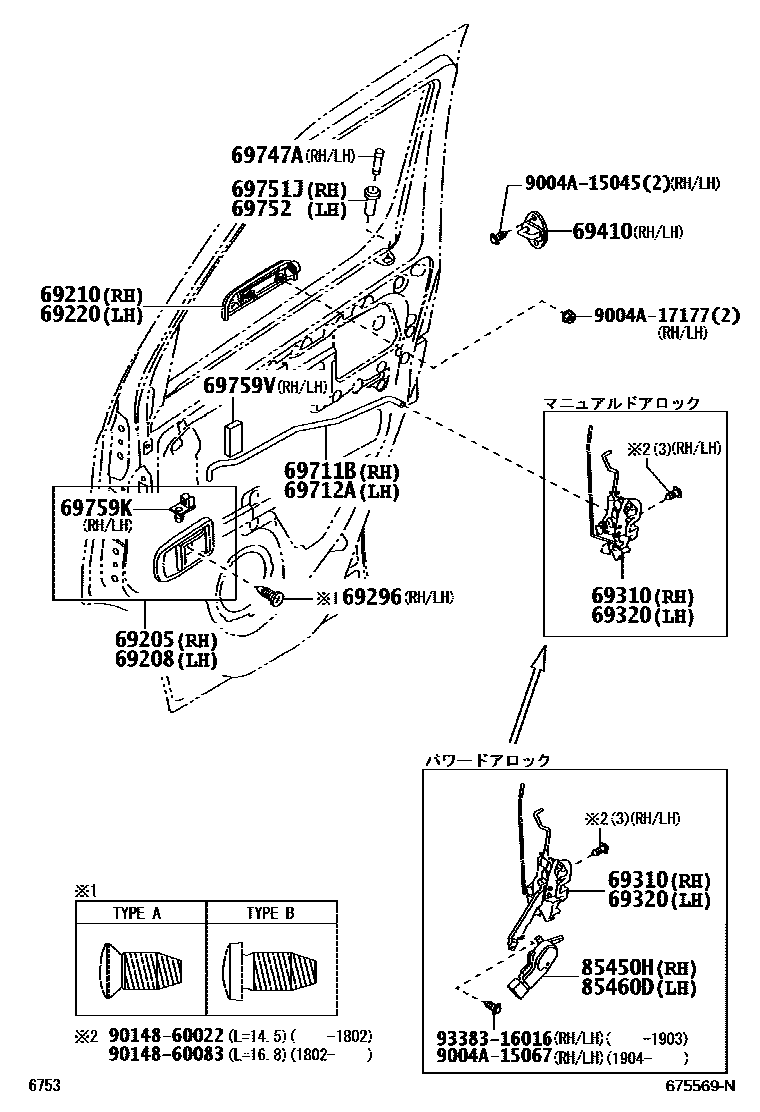

Toyota LITE/TOWNACE — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM1#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
DK.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#
69751JHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
DK.GRAY,TRIM1#
BLACK,TRIM1#
69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
DK.GRAY,TRIM1#
BLACK,TRIM1#
69759KSNAP, DOOR LOCK CONTROL LINK
69759VSILENCER, FRONT DOOR LOCK LINK
85450HMOTOR ASSY, DOOR CONTROL, FRONT RH
85460DMOTOR ASSY, DOOR CONTROL, FRONT LH
9004A15045
main9004A-15045
9004A15067
main9004A-15067
9004A17177
main9004A-17177
9014860022
main90148-60022
9014860083
main90148-60083
9338316016
main93383-16016
23 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota LITE/TOWNACE
This section contains 27 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LITE/TOWNACE. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
