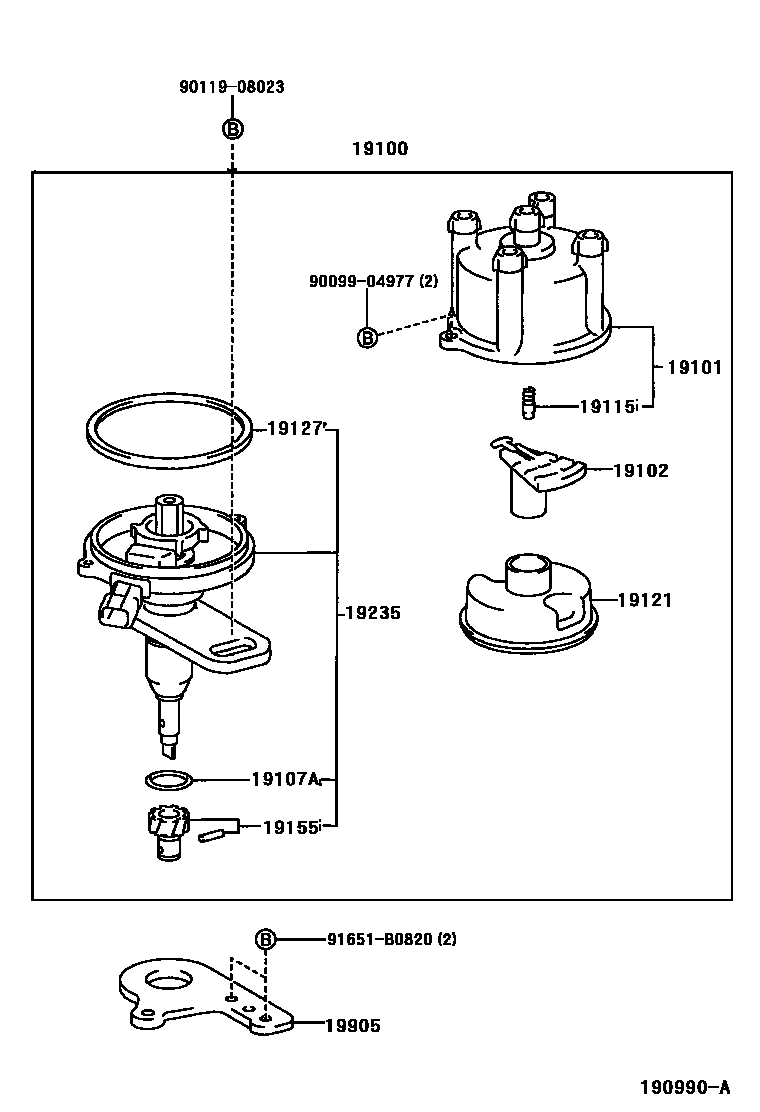

Toyota LITE/TOWNACE — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19100-13550i199906-200208

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-13550i199906-200208

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11370i199906-200208

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i199906-200208

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i199906-200208

19121COVER, DUST PROOF

main19121-74030i199906-200208

19127PACKING, DUST PROOF

main19127-74040i199906-200208

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-13060i199906-200208

19235HOUSING, DISTRIBUTOR

main19235-13550i199906-200208

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19955-13020i199906-200208

9009904977

main90099-04977

9011908023

main90119-08023

91651B0820

main91651-B0820

13 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota LITE/TOWNACE

This section contains 13 genuine Toyota parts for the DISTRIBUTOR system of the Toyota LITE/TOWNACE. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
