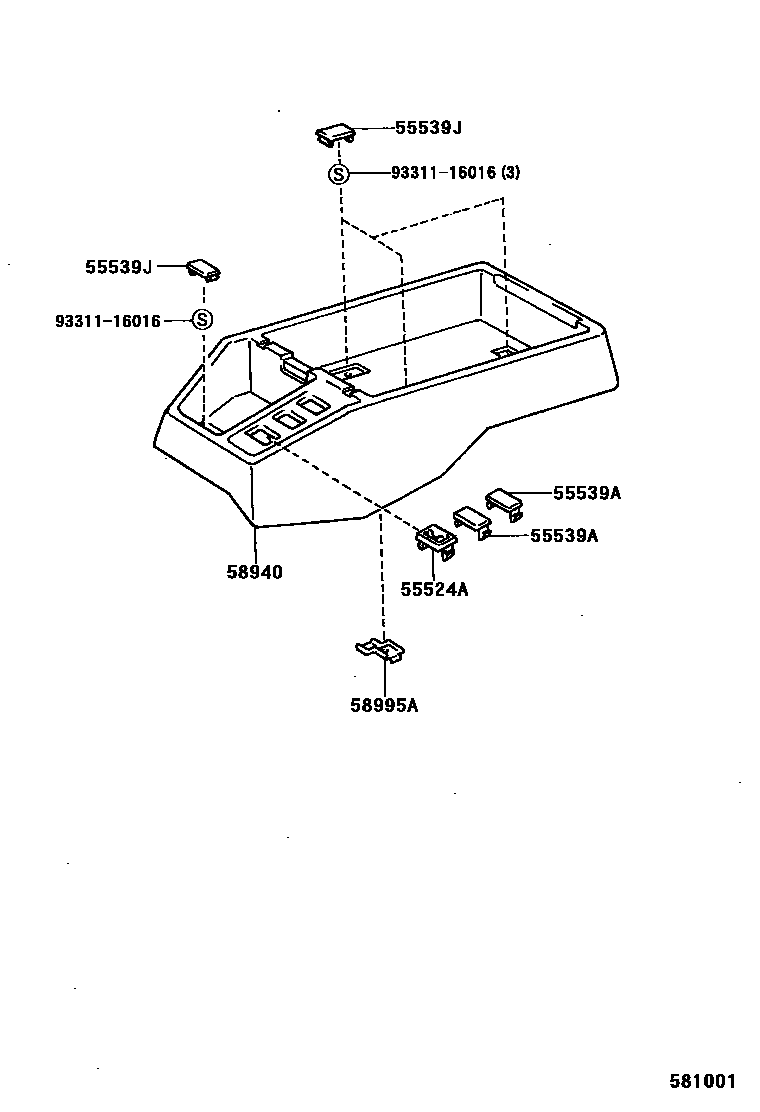

Toyota LITE/TOWNACE — CONSOLE BOX & BRACKET

55524ACOVER, SWITCH BASE HOLE

main55539-20020-B5i199906-200208

DK.CHARCOAL,TRIM1#

55539ACOVER, SPARE SWITCH HOLE

main55539-95J00-B3×2i199906-200208

DK.CHARCOAL,TRIM1#

55539JCOVER, SPARE SWITCH HOLE

main74617-16010-P7×4i199906-200208

DK.CHARCOAL,TRIM1#

58940CONSOLE ASSY, REAR

main58810-95704-B1i199906-200208

DK.CHARCOAL,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95703i199906-200208

9331116016

main93311-16016

6 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota LITE/TOWNACE

This section contains 6 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LITE/TOWNACE. Key components include: COVER, SWITCH BASE HOLE, COVER, SPARE SWITCH HOLE, CONSOLE ASSY, REAR, BRACKET, CONSOLE BOX MOUNTING, NO.1.
