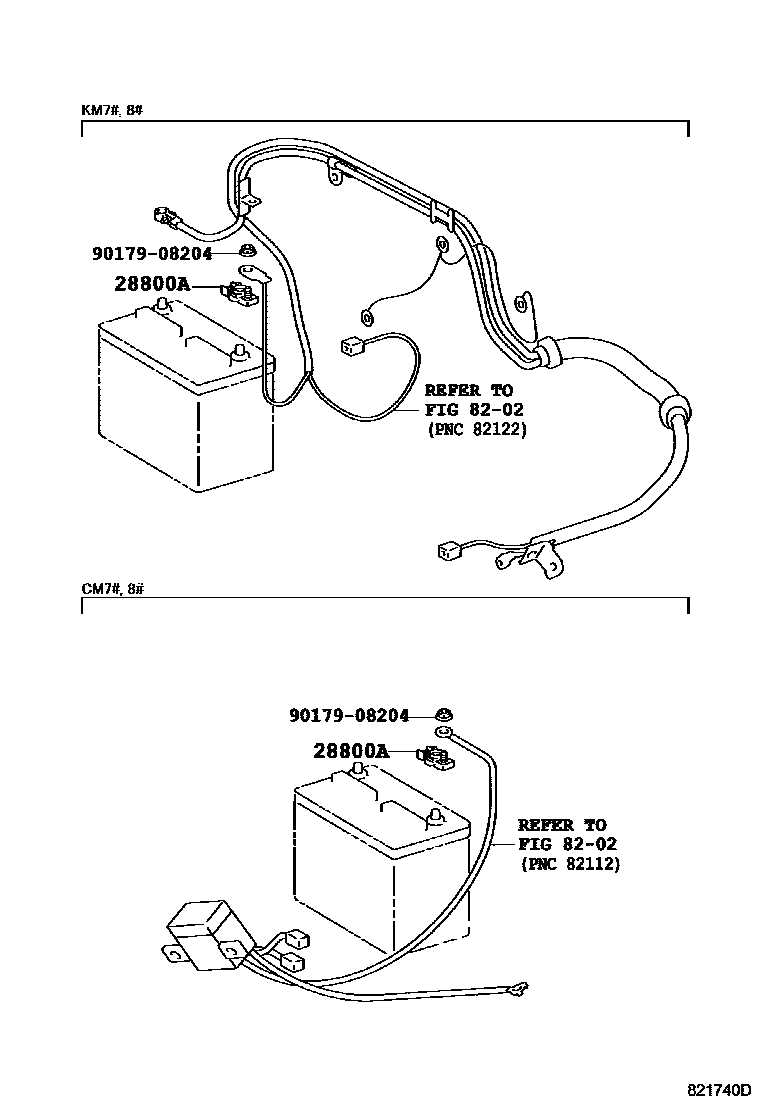

Toyota LITE/TOWNACE — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i199906-200208

main90982-05035i199906-200208

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

3 parts on this diagram · 2 diagrams in section

BATTERY & BATTERY CABLE for Toyota LITE/TOWNACE

This section contains 3 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota LITE/TOWNACE. Key components include: TERMINAL, BATTERY POSITIVE, WIRING & CLAMP.
