Toyota LITE/TOWNACE — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-27020-B0i200208-200401

DK.CHARCOAL,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-87002-B1i200208-200708

DK.CHARCOAL,TRIM1#

74310VISOR ASSY, RH

main74310-27010-B0i199906-200208

main74310-27020-B0i199906-200208

main74310-27030-B0i199906-200208

MD.CHARCOAL,TRIM1#

main74310-27040-B0i199906-200208

MD.CHARCOAL,TRIM1#

main74310-27050-B0i200208-200511

MD.CHARCOAL,TRIM1#

main74310-27051-B0i200512-200708

MD.CHARCOAL,TRIM1#

main74310-27060-B0i200208-200511

MD.CHARCOAL,TRIM1#

main74310-27061-B0i200512-200708

MD.CHARCOAL,TRIM1#

74318COVER, VISOR BRACKET, LH

main74318-25010-B1i199906-200208

MD.CHARCOAL,TRIM1#

74320VISOR ASSY, LH

main74320-27010-B0i199906-200208

MD.CHARCOAL,TRIM1#

main74320-27020-B0i200208-200408

main74320-27030-B0i200208-200408

74348HOLDER, VISOR

main74348-12020-B4i200208-200708

74356COVER, VISOR HOLDER HOLE

main74356-25010-B1i199906-200208

MD.CHARCOAL,TRIM1#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-16010-B2i199906-200208

main74603-95702-B2i199906-200208

74617APLUG, ASSIST GRIP

main74617-16010-P8×4i199906-200208

MD.CHARCOAL,TRIM1#

74811BHANDLE, DOOR PULL

main74811-12050-B0×2i199906-200208

main74811-87001-B1×2i199906-200208

9015260008

main90152-60008

9331116020

main93311-16020

9356054012

main93560-54012

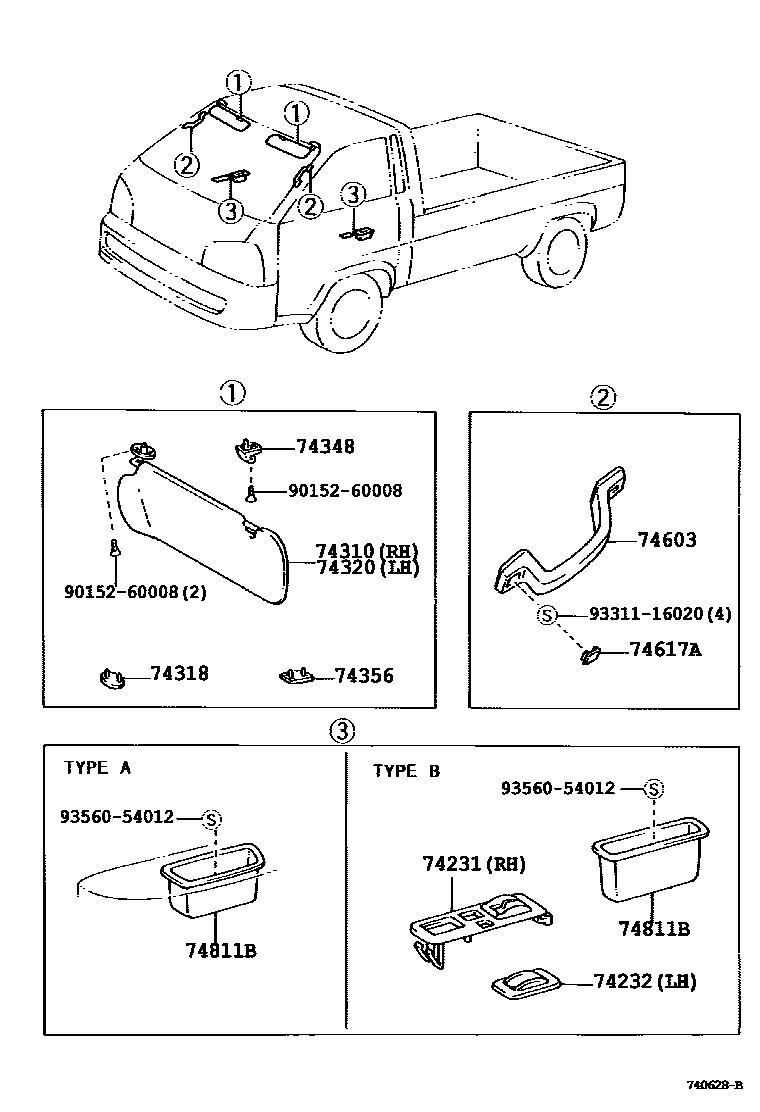

13 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota LITE/TOWNACE

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LITE/TOWNACE. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH, COVER, VISOR BRACKET, LH, VISOR ASSY, LH.
