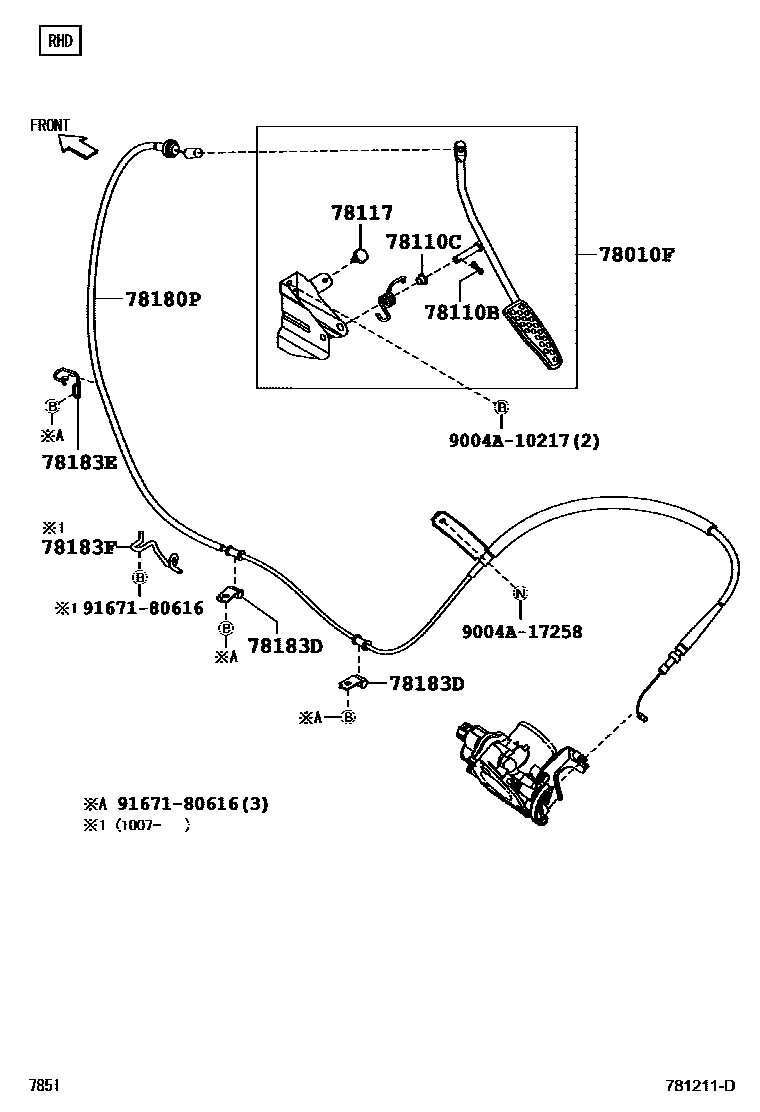

Toyota LITE/TOWNACE — ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78010-BZ090i200801-202007

78110BCLIP, ACCELERATOR BELLCRANK

main90044-68207i200801-202007

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86112i200801-202007

78117CUSHION (FOR ACCELERATOR ROD)

main90045-40158i200801-202007

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-BZ120i201006-202007

main78180-BZ150i200801-201006

78183DCLAMP, ACCELERATOR CONTROL CABLE

main90044-61822×2i200801-202007

78183ECLAMP, ACCELERATOR CONTROL CABLE

main78183-BZ060i200801-202007

78183FCLAMP, ACCELERATOR CONTROL CABLE

main78183-BZ030i201006-202007

9004A10217

main9004A-10217

9004A17258

main9004A-17258

9167180616

main91671-80616

11 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota LITE/TOWNACE

This section contains 20 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LITE/TOWNACE. Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, CLIP, ACCELERATOR BELLCRANK, BUSH (FOR ACCELERATOR PEDAL ROD), ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
