Toyota LITE/TOWNACE — ACCELERATOR LINK

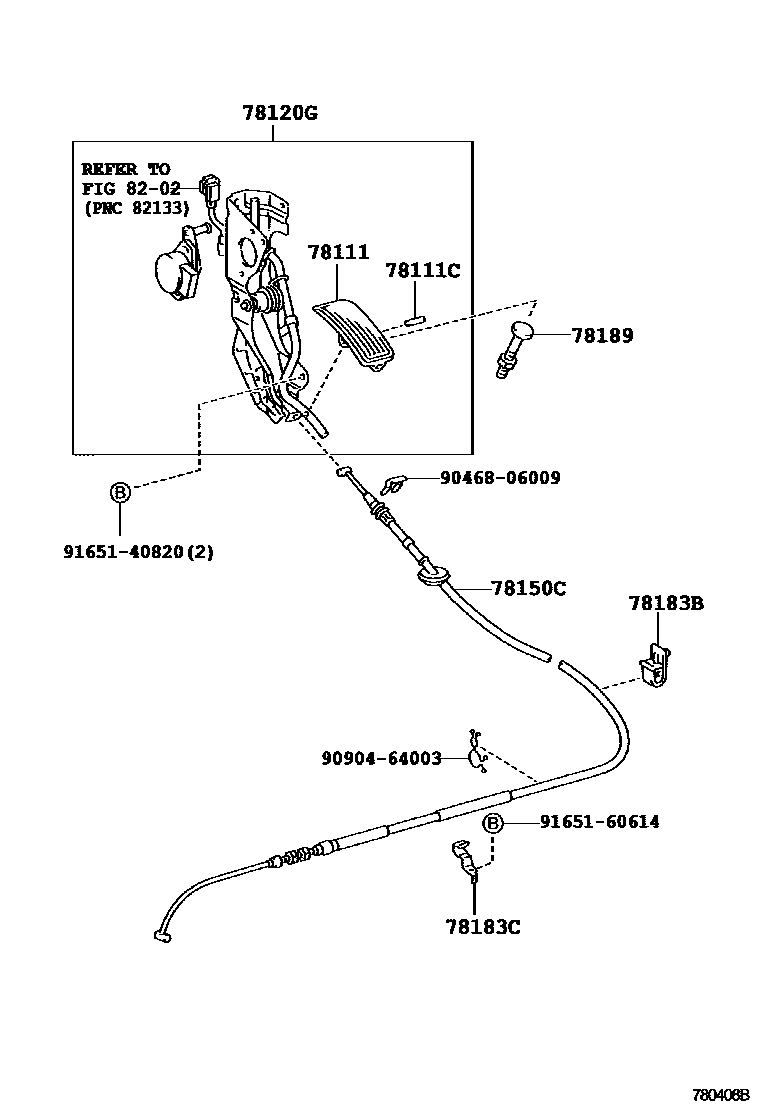

Parts diagram

78111PEDAL, ACCELERATOR

main78111-16010i200208

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04015i199906-200208

main90254-04034i199906-200208

78120GROD ASSY, ACCELERATOR PEDAL

main78010-27010i199906-200208

main78010-27020i199906-200208

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-27011i199906-200208

main78150-27041i199906-200208

main78150-27050i199906-200208

main78150-27060i200208

main78150-27070i200208

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-27050i200208

main78183-95705×2i199906-200208

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-27010i199906-200208

main78183-27030i199906-200208

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-27020i199906-200208

main78208-27030i199906-200208

9046806009

main90468-06009

9090464003

main90904-64003

9165140820

main91651-40820

9165160614

main91651-60614

11 parts on this diagram · 5 diagrams in section

ACCELERATOR LINK for Toyota LITE/TOWNACE

This section contains 24 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LITE/TOWNACE. Key components include: PEDAL ASSY, ACCELERATOR, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL).
