Toyota LITE/TOWNACE V,WG — PARTIAL ENGINE ASSEMBLY

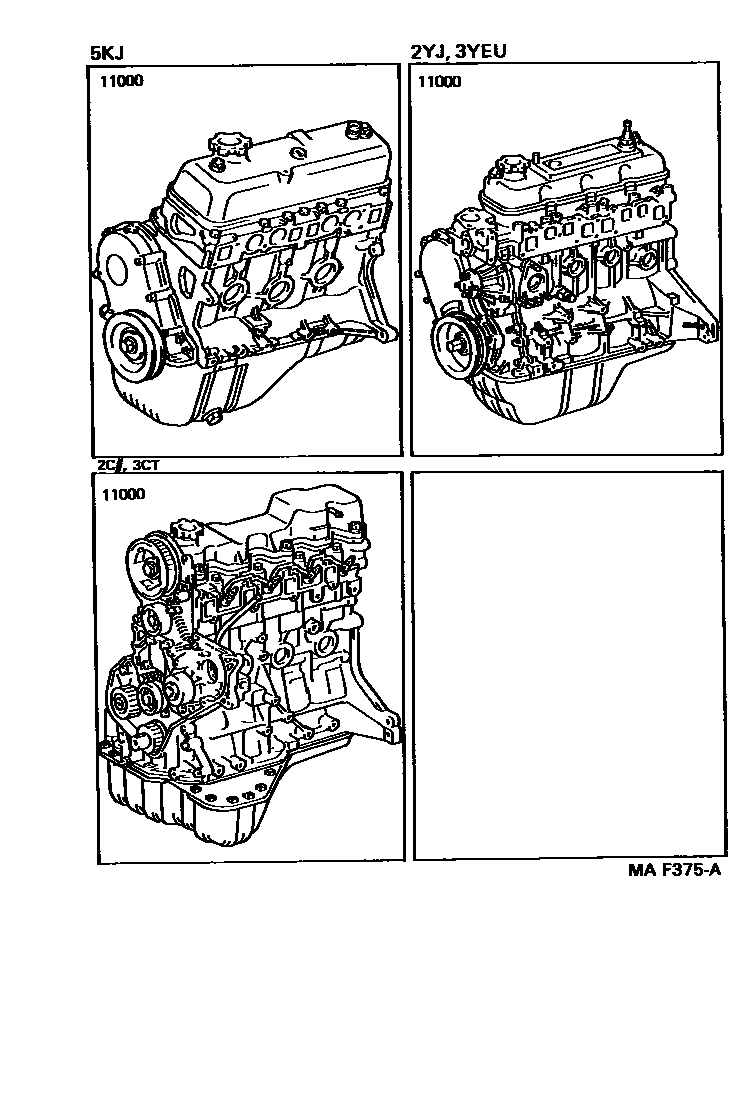

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-13451i199201-199610

main19000-64630i199201-199309

main19000-64650i199201-199309

main19000-64820i199309-199408

main19000-64821i199408-199504

main19000-64822i199504-199610

main19000-64830i199309-199408

main19000-64831i199408-199502

main19000-64833i199502-199506

main19000-6A050i199506-199610

main19000-72190i199201-199303

main19000-72191i199303-199610

main19000-73661i199201-199303

main19000-73662i199303-199308

main19000-73663i199308-199512

main19000-73664i199512-199610

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota LITE/TOWNACE V,WG

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota LITE/TOWNACE V,WG. Key components include: ENGINE ASSY, PARTIAL.
