Toyota LITE/TOWNACE TRUCK — POWER CURTAIN

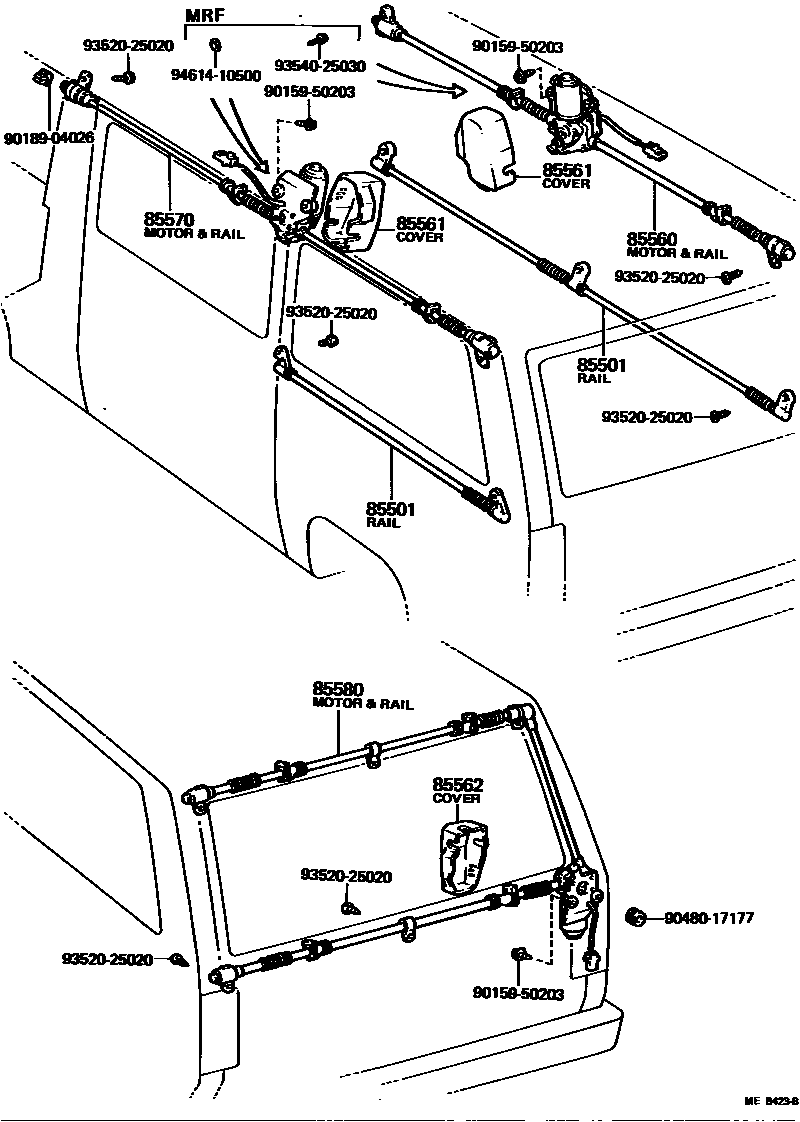

Parts diagram
85501RAIL SUB-ASSY, POWER CURTAIN
main85501-95700i198201-198210
RH
main85501-95701-03i198210-198508
RH,GRAY,GRAY
main85501-95701-08i198210-198508
RH,IVORY,IVORY
main85504-95700i198201-198210
LH
main85504-95700-03i198210-198508
LH,GRAY,GRAY
main85504-95700-08i198210-198508
LH,IVORY,IVORY
85560MOTER AND RAIL ASSY, POWER CURTAIN, RH
main85560-95700i198201-198210
main85560-95701i198204-198210
main85560-95702-03i198210-198508
GRAY,GRAY
main85560-95702-08i198210-198508
IVORY,IVORY
main85560-95703-03i198210-198508
GRAY,GRAY
main85560-95703-08i198210-198508
IVORY,IVORY
85561COVER, POWER CURTAIN MOTER, SIDE
main85561-95700i198201-198210
RH
main85561-95701i198201-198210
LH
main85561-95701-03i198210-198508
RH,GRAY,GRAY
main85561-95701-08i198210-198508
RH,IVORY,IVORY
main85561-95702i198204-198210
LH
main85561-95702-03i198210-198508
LH,GRAY,GRAY
main85561-95702-08i198210-198508
LH,IVORY,IVORY
main85561-95703i198204-198210
RH
main85561-95704-03i198210-198508
LH,GRAY,GRAY
main85561-95704-08i198210-198508
LH,IVORY,IVORY
main85561-95705-03i198210-198508
RH,GRAY,GRAY
main85561-95705-08i198210-198508
RH,IVORY,IVORY
main85561-95706-03i198210-198508
RH,GRAY,GRAY
main85561-95706-08i198210-198508
RH,IVORY,IVORY
main85561-95707-03i198210-198508
LH,GRAY,GRAY
main85561-95707-08i198210-198508
LH,IVORY,IVORY
85562COVER, POWER CURTAIN MOTOR, REAR
main85562-95700i198201-198210
main85562-95700-03i198210-198508
GRAY,GRAY
main85562-95700-08i198210-198508
IVORY,IVORY
85570MOTER AND RAIL ASSY, POWER CURTAIN, LH
main85570-95700i198201-198210
main85570-95701i198204-198210
main85570-95702-03i198210-198508
GRAY,GRAY
main85570-95702-08i198210-198508
IVORY,IVORY
main85570-95703-03i198210-198508
GRAY,GRAY
main85570-95703-08i198210-198508
IVORY,IVORY
85580MOTER AND RAIL ASSY, POWER CURTAIN, REAR
main85580-95700i198201-198210
main85580-95700-03i198210-198508
GRAY,GRAY
main85580-95700-08i198210-198508
IVORY,IVORY
9015950203
main90159-50203
9018904026
main90189-04026
9048017177
main90480-17177
9352025020
main93520-25020
9354025030
main93540-25030
9461410500
main94614-10500

12 parts on this diagram · 1 diagram in section

POWER CURTAIN for Toyota LITE/TOWNACE TRUCK

This section contains 12 genuine Toyota parts for the POWER CURTAIN system of the Toyota LITE/TOWNACE TRUCK. Key components include: RAIL SUB-ASSY, POWER CURTAIN, MOTER AND RAIL ASSY, POWER CURTAIN, RH, COVER, POWER CURTAIN MOTER, SIDE, COVER, POWER CURTAIN MOTOR, REAR, MOTER AND RAIL ASSY, POWER CURTAIN, LH.
