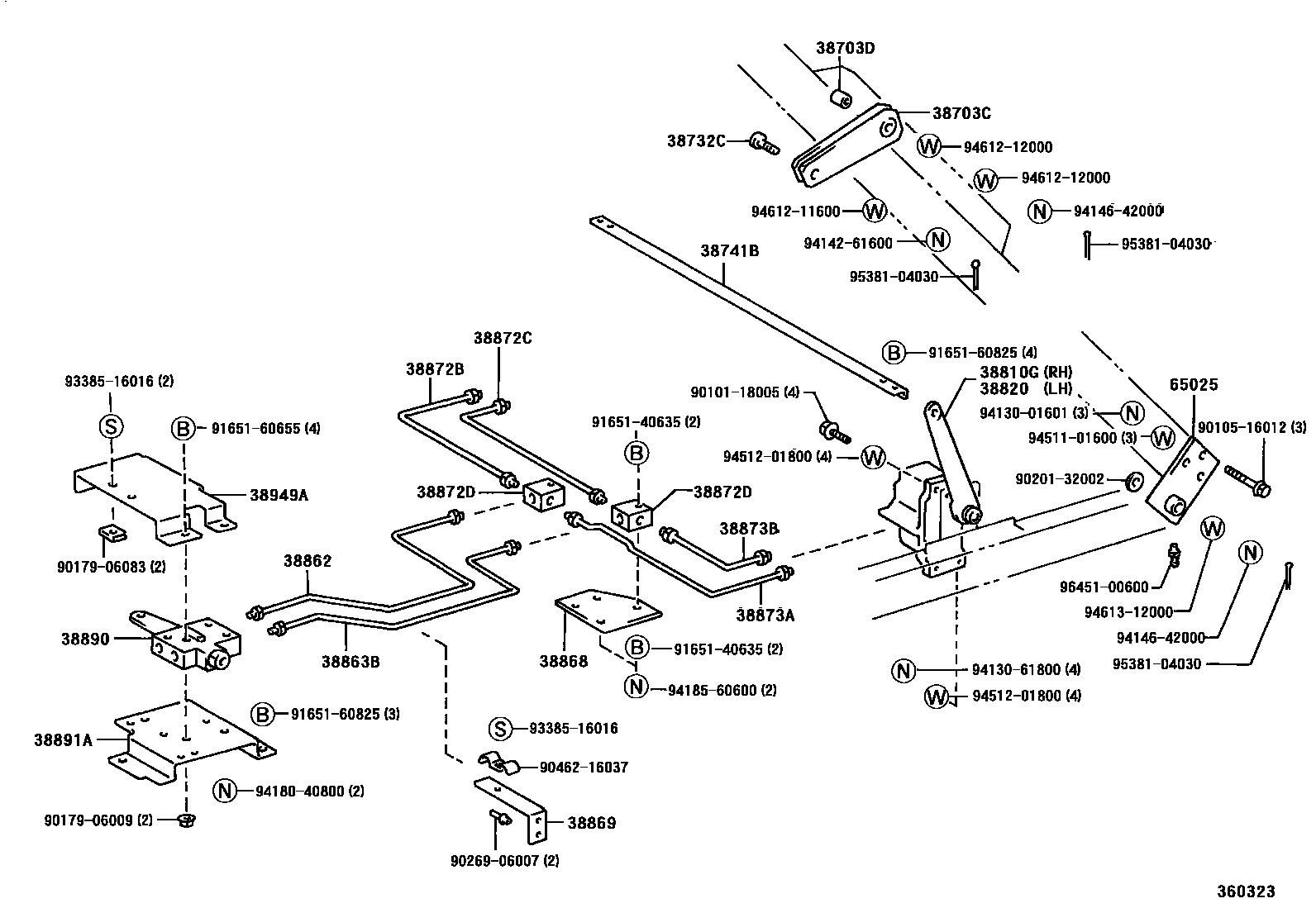

Toyota LITE/TOWNACE TRUCK — HOIST CYLINDER TRUNNION & LIFT ARM
38703CARM SUB-ASSY, VESSEL LIFT
38703DBUSH, SOLID (FOR VESSEL LIFT ARM)
38732CBOLT, VESSEL LIFT ARM
38741BBAR, DUMP ACTUATOR CONNECT
38810GACTUATOR ASSY, DUMP, RH
38820ACTUATOR ASSY, DUMP, LH
38862TUBE, DUMP CONTROL VALVE TO ACTUATOR, NO.1
38863BTUBE, DUMP CONTROL VALVE TO ACTUATOR, NO.2
38868BRACKET, DUMP ACTUATOR TUBE WAY
38869BRACKET, DUMP ACTUATOR TUBE CLAMP
38872BTUBE, DUMP ACTUATOR, RH NO.1
38872CTUBE, DUMP ACTUATOR, RH NO.2
38872DWAY, 3 (FOR DUMP ACTUATOR TUBE)
38873ATUBE, DUMP ACTUATOR, LH NO.1
38873BTUBE, DUMP ACTUATOR, LH NO.2
38890VALVE ASSY, DUMP ACTUATOR CONTROL
38891ABRACKET, DUMP ACTUATOR CONTROL VALVE
38949ACOVER, DUMP ACTUATOR CONTROL VALVE
65025BRACKET SUB-ASSY, VESSEL HINGE
9010118005
main90101-18005
9010516012
main90105-16012
9017906009
main90179-06009
9017906083
main90179-06083
9020132002
main90201-32002
9026906007
main90269-06007
9046216037
main90462-16037
9165140635
main91651-40635
9165160655
main91651-60655
9165160825
main91651-60825
9338516016
main93385-16016
9413001601
main94130-01601
9413061800
main94130-61800
9414261600
main94142-61600
9414642000
main94146-42000
9418040800
main94180-40800
9418560600
main94185-60600
9451101600
main94511-01600
9451201800
main94512-01800
9461211600
main94612-11600
9461212000
main94612-12000
9461312000
main94613-12000
9538104030
main95381-04030
9645100600
main96451-00600
43 parts on this diagram · 1 diagram in section
HOIST CYLINDER TRUNNION & LIFT ARM for Toyota LITE/TOWNACE TRUCK
This section contains 43 genuine Toyota parts for the HOIST CYLINDER TRUNNION & LIFT ARM system of the Toyota LITE/TOWNACE TRUCK. Key components include: ARM SUB-ASSY, VESSEL LIFT, BUSH, SOLID (FOR VESSEL LIFT ARM), BOLT, VESSEL LIFT ARM, BAR, DUMP ACTUATOR CONNECT, ACTUATOR ASSY, DUMP, RH.
