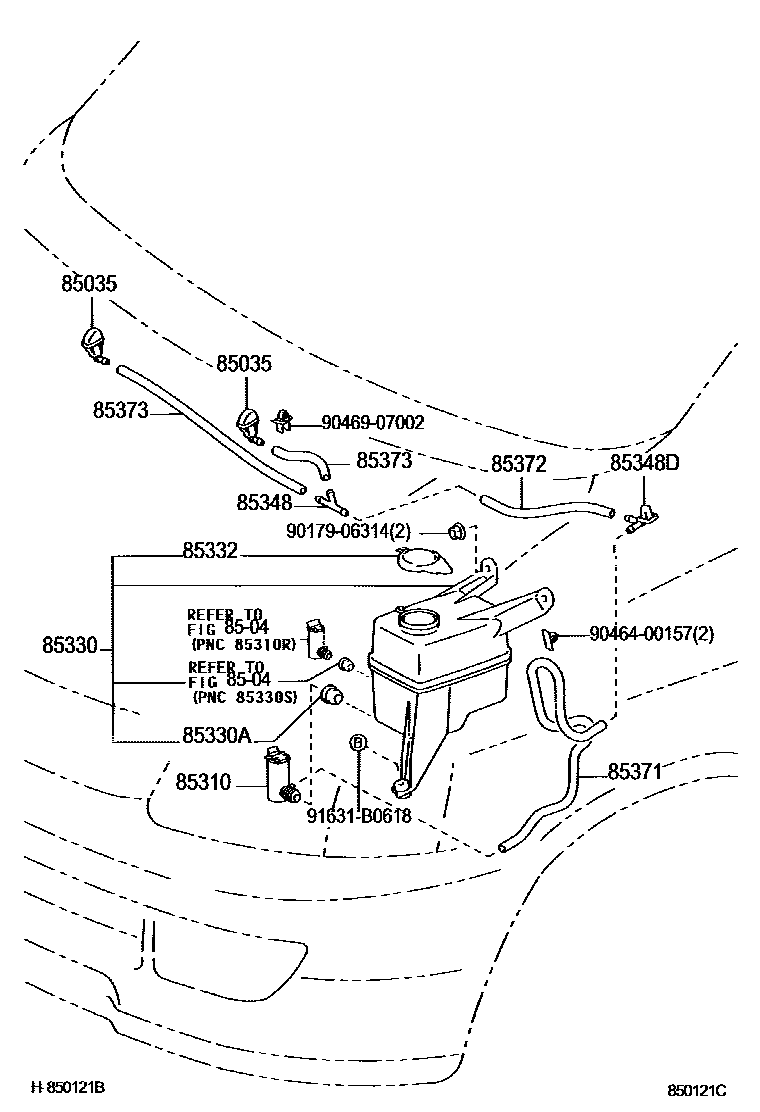

Toyota LITE/TOWNACE NOAH,V — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
9017906314
main90179-06314
9046400157
main90464-00157
9046907002
main90469-07002
91631B0618
main91631-B0618
15 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota LITE/TOWNACE NOAH,V
This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LITE/TOWNACE NOAH,V. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
